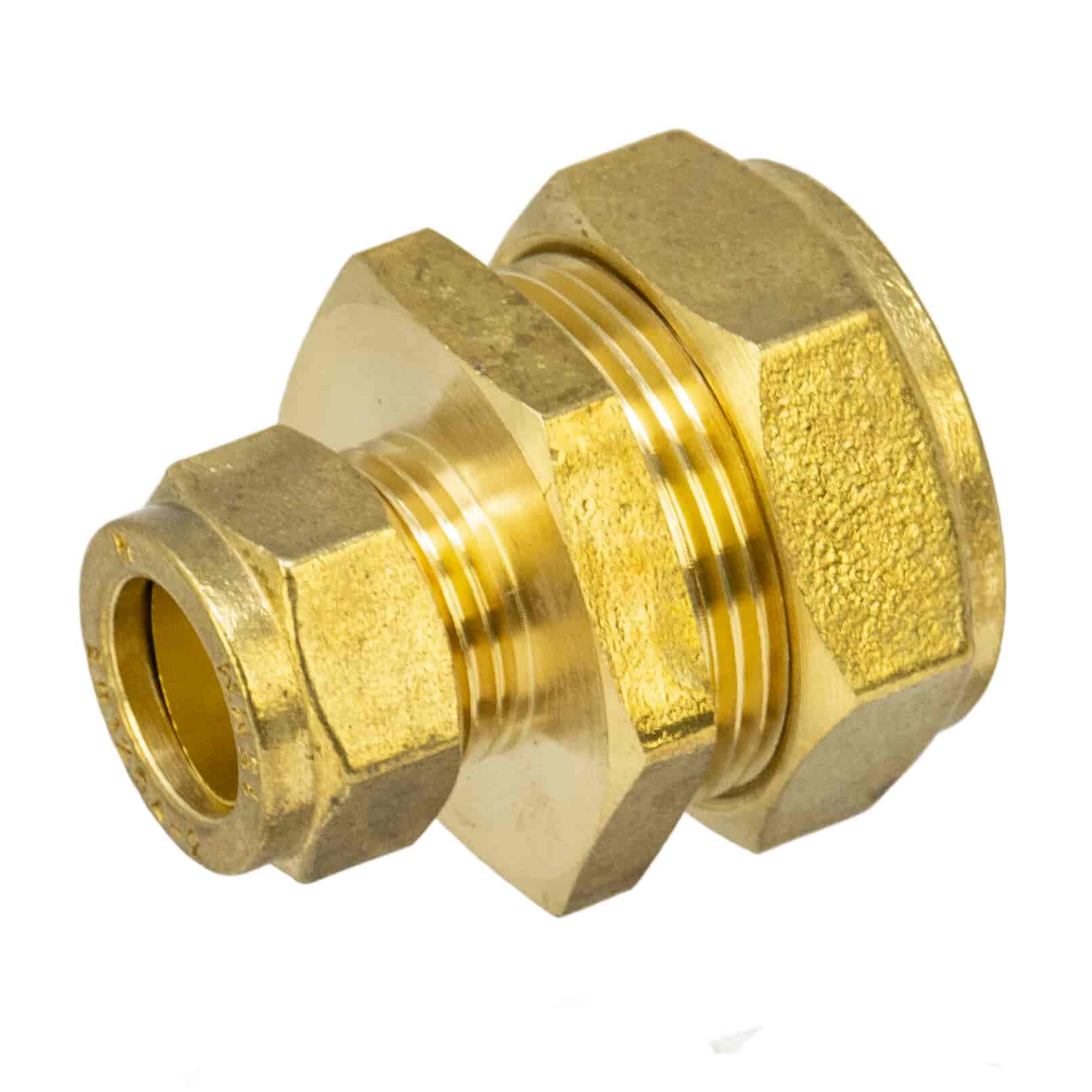

Soldering isn't always practical — tight spaces, heat-sensitive surroundings, or a retrofit where a blowtorch simply isn't an option. The 28mm x15mm Brass Compression Reducing Coupling is a flame-free, mechanical jointing solution built for exactly that, connecting two different-sized pipes together without soldering or welding.
Made from brass and manufactured to BS EN 1254-2, this fitting is WRAS approved and suitable for domestic, commercial, and industrial applications including gas, water, and compressed air. It's rated to 1 bar at 30°C for gas, 7 bar at 30°C for compressed air, and up to 25 bar (PN25) for water between 0°C and 95°C, and works with copper, stainless steel, low carbon steel, and plastic pipe (with inserts).
A flame-free joint means no hot works permit needed and no fire risk on a job where soldering isn't practical or allowed. WRAS approval and BS EN 1254-2 compliance mean it's a fitting you can specify with confidence on drinking water systems as well as gas and compressed air work within its rated limits.
Order the 28mm x 15mm Brass Compression Reducing Coupling online today.
| Brand | Hamilton Gas Products Ltd |
|---|---|
| Product Type | Compression Reducing Coupling |
| Connection | Compression x Compression |
| Size | 28mm Compression x 15mm Compression |
| Material | Brass |
| Finish | Brass |
| Gas Pressure Rating | 1 Bar @ 30°C |
| Compressed Air Rating | 7 Bar @ 30°C |
| Water Pressure Rating | 25 Bar (8–15mm) @ 0–95°C |
| Pipe Compatibility | Copper, Stainless Steel, Low Carbon Steel, Select Plastics |
| Standard/Approval | BS EN 1254-2, WRAS Approved |
| Suitable Applications | Water, Heating, and Low-Pressure Gas (Above Ground) |
