The 120mbar High Specific Gravity Fluid Gauge, also known as the J Gauge, provides precise pressure measurements with reduced height requirements. Using a high specific gravity fluid, this U gauge reduces the normal 48" height needed for this pressure range down to just 24", while still maintaining a full measurement range of 48" (120 mbar).

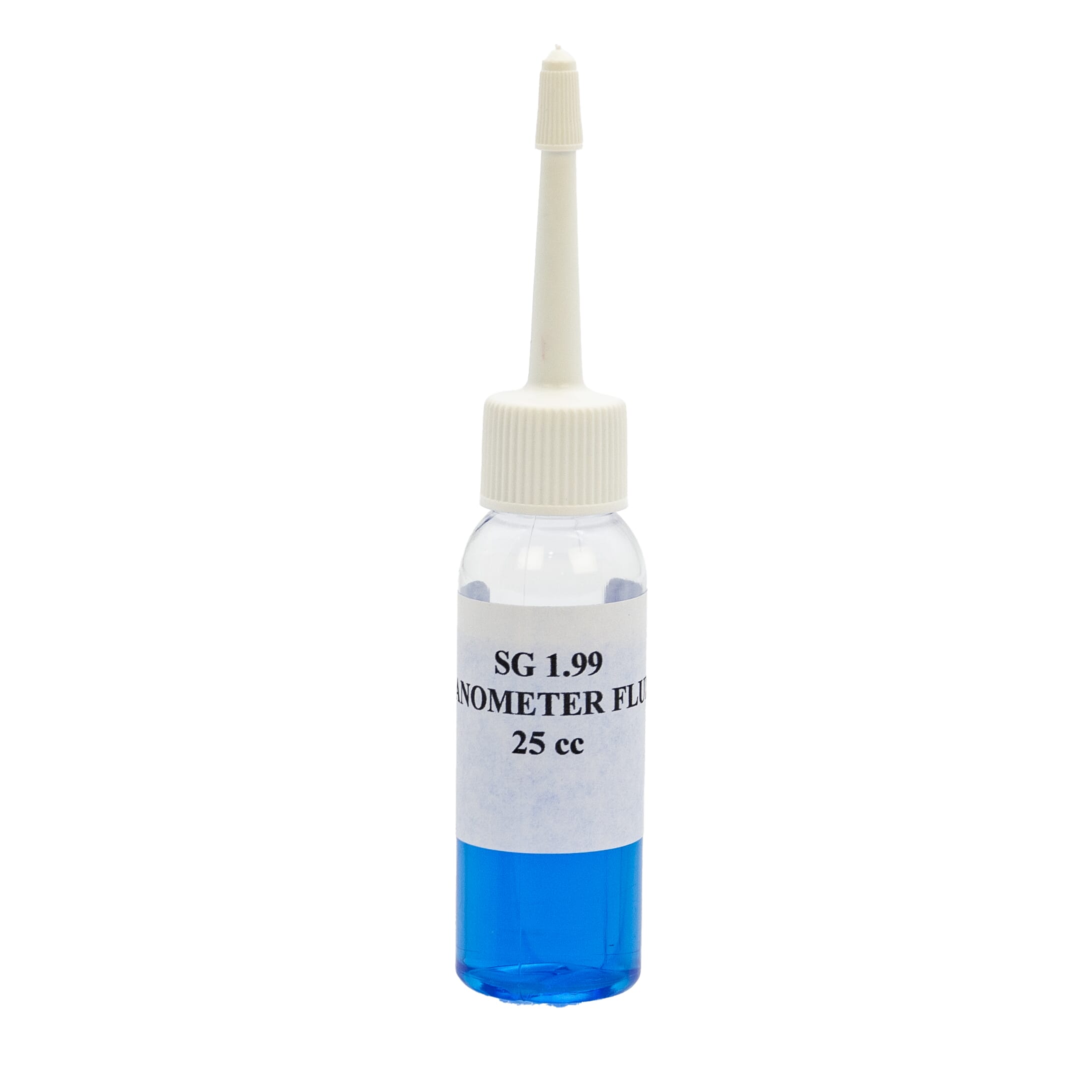

It's compact at just 80cm (31.5") long and 1kg (2.2lbs) in weight, giving clear, precise readings down to 0.5 mbar (1/10" w.g.). It's ready to use straight away, with no un-coiling, un-folding or filling required. The inert, blue indicating fluid has a specific gravity of 1.99 and is non-freezing and non-corrosive. Trap tubes in the chambers prevent fluid loss from spillage, and an overpressure check valve along with a ball float in the liquid column aid reading and provide over-pressure protection. Construction includes a clear acrylic indicating tube, rigid PVC chambers, and a sliding/snap-on lid with a suspending ring. A 25cc bottle of fluid is included to top up small evaporation losses, with additional fluid available separately.
Using a high specific gravity fluid halves the physical height needed for a 120 mbar measurement range compared with a standard water-filled U gauge, making it far more practical to handle and store on site. The overpressure check valve and ball float give a genuine safety margin against accidental over-pressurisation, and anti-spill trap chambers mean the fluid stays where it should during transport and handling.
Order the 120mbar High Specific Gravity Fluid Gauge Manometer – J Gauge online today.
| Brand | Hamilton Gas Products |
|---|---|
| Product Type | Gas Pressure J Gauge |
| Pressure Range | 0-120 mbar / 0-48" w.g. |
| Length | 80cm |
| Weight | 1kg (2.2lbs) |
| Reading Accuracy | 0.5 mbar (1/10" w.g.) |
| Indicating Fluid | Inert, Blue Fluid with Specific Gravity of 1.99 |
| Fluid Capacity | 25cc Bottle Included |
| Material | Clear Acrylic Indicating Tube, Rigid PVC Chambers |
| Additional Features | Anti-Spill Trap Tubes, Overpressure Check Valve, Sliding/Snap-On Lid, Suspending Ring |
| Suitable Applications | Soundness and Pressure Testing of Mains and Services |
| Warranty | 12 Months |
