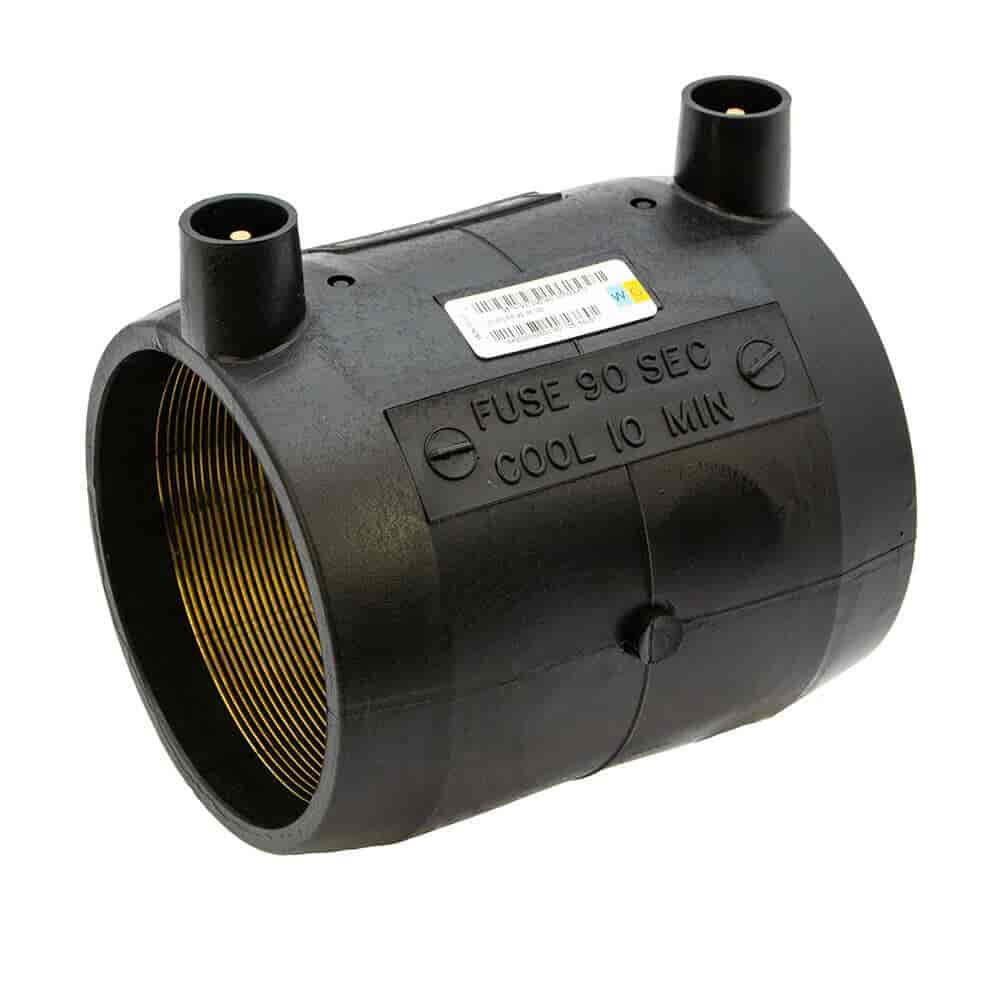

90mm Black MDPE Electrofusion Coupler
-
10 +
£6.48
£5.40
each
save 11%
Universal Black MDPE (PE 80) electrofusion fittings suitable for gas, water, wastewater, telecoms, energy & power applications.
Electrofusion fittings are supplied in individual sealed bags to avoid contamination of the joint surfaces prior to jointing.
90mm Black MDPE Electrofusion Coupler Specification
Approved by |
WRAS, BSI & Kitemarked |
Standards |
Gas - BS EN 1555-3 & GIS/PL2:4 Water - BS EN 12201-3. |
Material |
MDPE |
Colour |
Black |
Operating Pressure |
Gas : MOP up to 5.5 bar. Water : MOP up to 16 bar. |
Size |
90mm |
Applications |
For use with MDPE (PE 80) pipe carrying Natural Gas, LPG or Water |
Pin Size |
4mm |
90mm Black MDPE Electrofusion Coupler Features
- Manufactured from high strength polyethylene (PE100)
- Exposed wire technology for maximum heat transfer during the fusion process
- Simultaneous socket fusion for all fittings
- Barcode technology - for automatic temperature compensating fusion times and fitting
traceability
- Manual fusion times on the body of the fitting
- Corrosion resistant
- End-load bearing jointing system
- Manufactured with insertion stops to ensure the pipe is fully engaged
