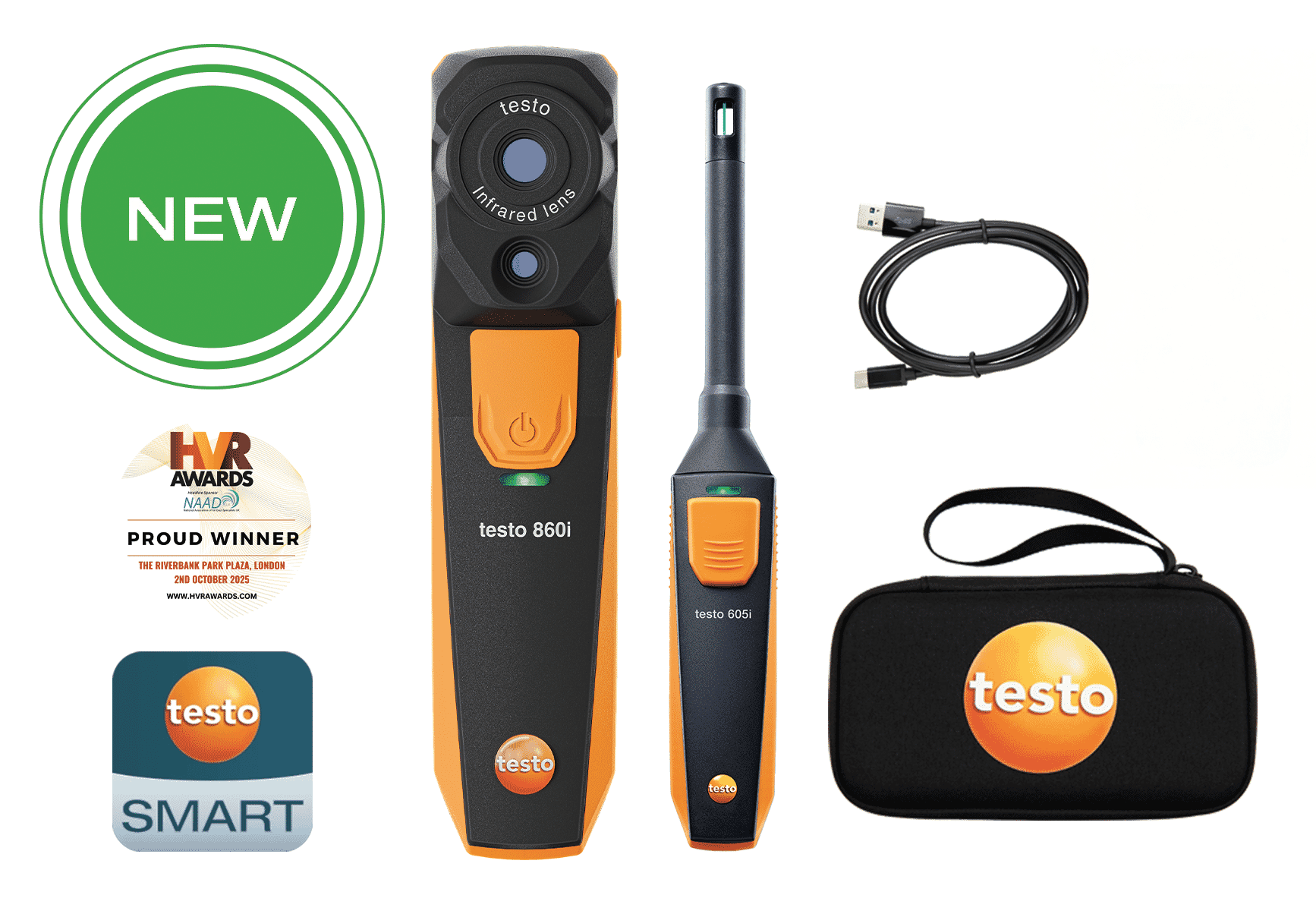

The Testo 860i Mould Kit combines a high-resolution thermal imaging camera with a Bluetooth thermohygrometer for fast mould-risk detection. With live app connectivity, IP54 durability and reporting suited to Awaab's Law compliance, it's a practical solution for HVAC professionals, landlords and building inspectors.
The Testo 860i wireless thermal imaging camera and Testo 605i Bluetooth thermohygrometer together enable fast, accurate, data-rich mould investigation. The 860i's 256 x 192 pixel infrared resolution gives clear imaging for diagnosing insulation defects, thermal bridges and moisture-affected areas, with DeltaHeat and DeltaCool functions for quick differential temperature readings. The 605i thermohygrometer measures temperature and humidity and calculates dew point to help determine mould risk.
Measurements transfer automatically to the Testo Smart App, where results can be analysed, professional reports generated — including thermal and humidity visualisation — and data stored for compliance purposes.
Built for field use, the 860i is IP54 rated and drop-resistant to 1.5m, with a rechargeable battery. It's suited to damp surveys, rental inspections, HVAC servicing, insurance assessments and Awaab's Law compliance work.
Combining thermal imaging with direct humidity and dew point measurement gives a complete picture of mould risk, rather than a thermal image alone, which only shows cold spots without confirming whether conditions are actually conducive to mould growth. This pairing is particularly relevant for landlords and housing providers needing documented, compliant surveys under Awaab's Law, with reports generated directly from the Smart App rather than written up separately afterwards.
Order the Testo 860i Mould Kit online today.
| Kit Product No. | 300563 0861 |
|---|---|
| Testo 860i Product No. | 0563 0860 |
| Infrared Resolution | 256 x 192 Pixels |
| Thermal Sensitivity | 50 mK (0.05°C) |
| Measuring Range | -20 to +350°C |
| Accuracy | ±3°C or ±3% of m.v. |
| Field of View | 48° x 36° |
| Focus | Fixed |
| Refresh Rate | 9 Hz |
| Protection | IP54 |
| Drop Resistance | 1.5m |
| Connectivity | Bluetooth / WLAN |
| Zoom | Digital |
| File Output | .jpg / .csv / .bmt |
| Dimensions (860i) | 165 x 45 x 38mm |
| Weight (860i) | 195g |
| Testo 605i Product No. | 0560 2605 02 |
| 605i Temperature Range | -20 to +60°C |
| 605i Temperature Accuracy | ±0.5°C (0–60°C) |
| 605i Humidity Range | 0–100% RH |
| 605i Humidity Accuracy | ±2% RH (35-65% RH) |
| 605i Resolution | 0.1°C / 0.1% RH |
| 605i Battery Type | 3 x AAA |
| 605i Battery Life | 150 Hours |
| 605i Dimensions | 218 x 30 x 27mm |
| 605i Weight | 86.4g |
