This is a 127mm (5 inch) core drill wall ventilator that comes with an anti-draught baffle. Without the baffle you get a free airflow area of 100cm². Put the baffle in place and it reduces the airflow to 70cm² - handy for controlling draughts. The ventilator itself has a 27kW net rated input (when the baffle is not fitted). The standard length of the tube is 350mm - long enough for standard cavity walls. The ventilator has a white internal grille and external cowl, but you can also get other cowl colour options.
Key Features & Benefits
127mm (5") Core Drill Tube - Simple Installation - This is great for fitting through cavity walls using a standard 127mm core drill. No special tools needed.
Anti-Draught Baffle Included - Reduces Draughts - We have included the baffle so you can reduce cold draughts, but still get good ventilation. You get two options - either 100cm² (baffle out) or 70cm² (baffle in).
100cm² Free Area - 27kW Net Rated (No Baffle) - This meets the combustion air requirements for gas and solid fuel appliances up to 27kW net rated input - no baffle needed.
350mm Standard Tube Length - Lengthy Enough - The standard tube length should be long enough for standard cavity wall thicknesses.
White Internal Grille & White External Cowl - White on the inside and white on the outside - which should blend in nicely. Other cowl colour options are available from Stadium if you'd prefer.
Cowl: 180 x 155mm - Grille: 155 x 155mm - Easily see what you're working with.
Ideal For
Providing combustion air through cavity walls for gas fires and solid fuel appliances.
Background ventilation in homes and offices - keeps everyone happy
Installations where you need to control draughts while still getting good airflow - anti-draught baffle to the rescue
Standard cavity wall installations - use the 350mm tube as standard.
127mm Core Drill Ventilator - comes with anti-draught baffle - 100cm² when open, 70cm² with the baffle in, 27kW rated. Buy one today!
Combustion air supply for gas fires and solid fuel appliances through cavity walls
Features

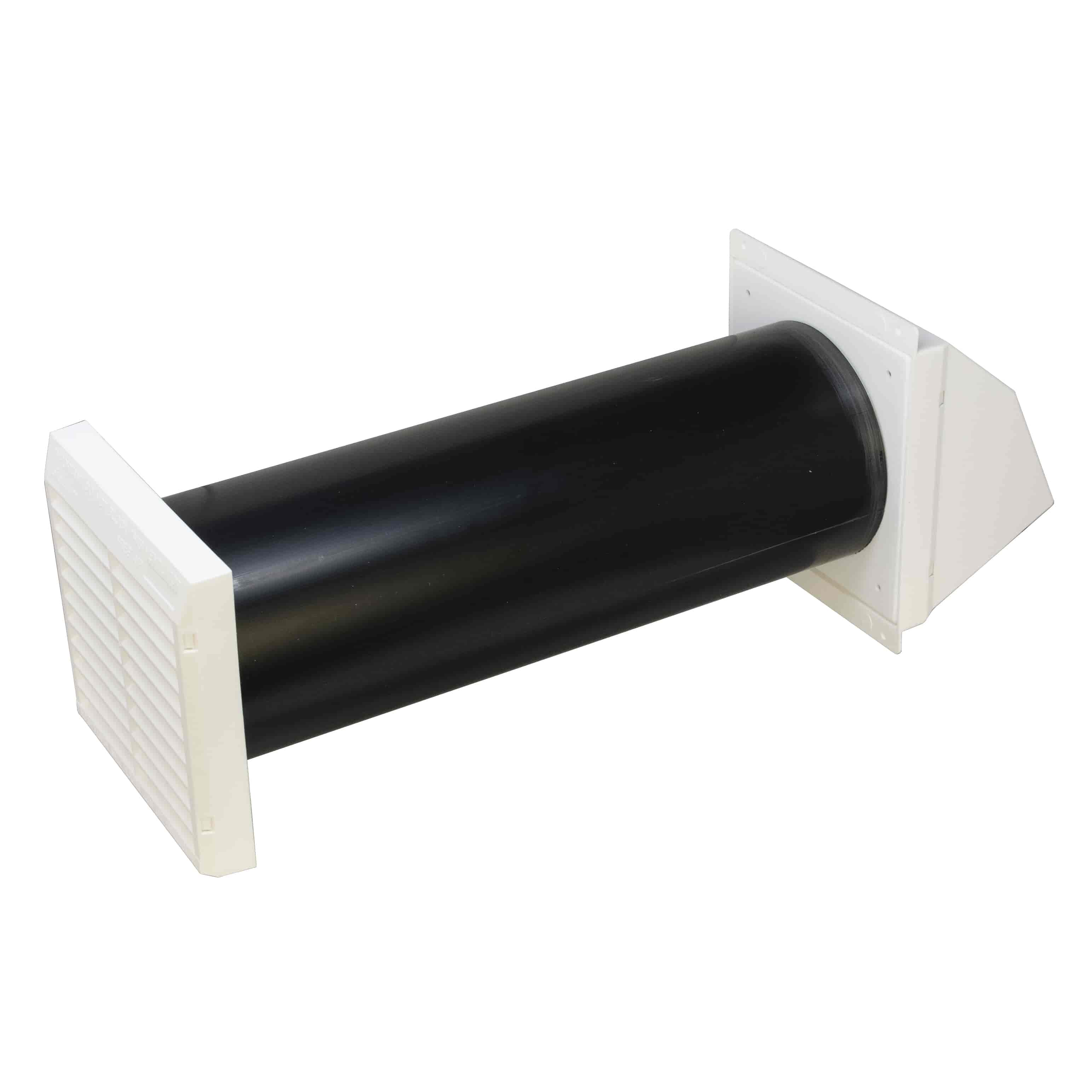

Stadium BM418/W 127mm Core Drill Ventilator Features
127mm (5") Core Drill Tube - For installations through cavity walls using a standard 127mm core drill.
Anti-Draught Baffle Included - Fits inside the tube to reduce cold draughts while maintaining adequate ventilation. Two ventilation settings: 100cm² (baffle out) or 70cm² (baffle in).
100cm² Free Area - 27kW Net Rated (Without Baffle) - Meets combustion air requirements for gas and solid fuel appliances up to 27kW net rated input when baffle is not fitted.
350mm Standard Tube Length - Suitable for standard cavity wall thicknesses. Compatible with extension tubes for thicker walls.
White Internal Grille / White External Cowl - White internal grille for interior walls; white external cowl for external face. Other cowl colour options available in the BM418 range.
