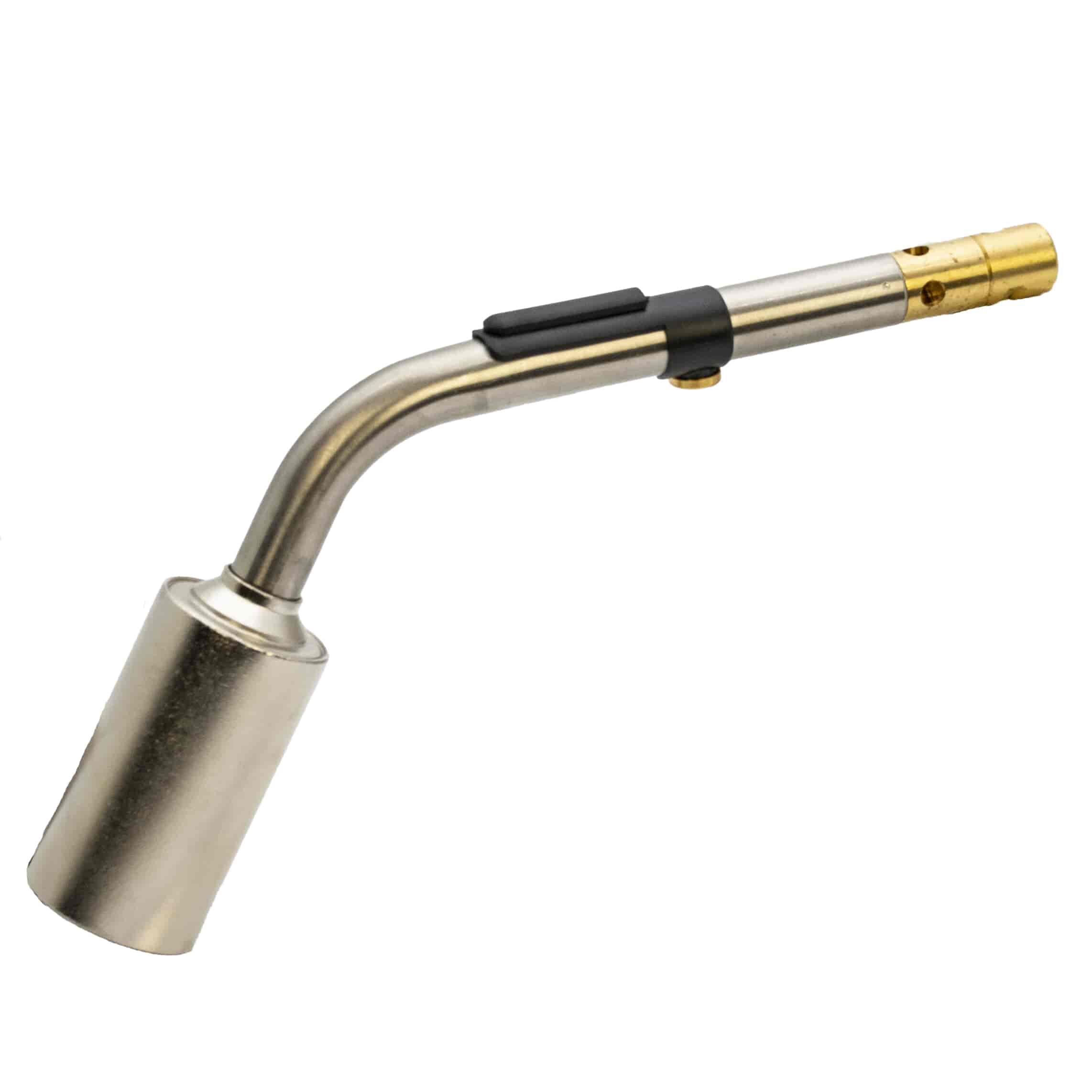

Sievert Promatic Soft Flame Burner 38mm – Cable Jointing & Large Heat Shrink Sleeves to 150mm
Soft flame burner for cable jointing and heat shrink sleeve applications from 50mm to 150mm diameter. Sweeping yellow-and-blue soot-free windproof flame. Fresh air inlet keeps the burner head cool. 11.5kW, 900g/h, 38mm. Optimum working pressure 1.5 bar. Fits the Sievert 3366 Promatic handle.
The 334191 is the large-diameter soft flame burner in the Promatic range — the same sweeping soot-free windproof flame technology as the 3347 (28mm) burner, scaled up for sleeve diameters from 50mm to 150mm. Where the 3347 handles thick-walled sleeves to 50mm, this 38mm burner extends the range to 150mm — covering the larger heat shrink sleeves used in medium and high-voltage cable jointing and telecommunications infrastructure work.
The fresh air inlet draws ambient air into the burner head during operation, keeping the head cool and preventing burning or charring the sleeve at the contact point. The flame is soft enough not to overheat the material but powerful enough at 11.5kW to shrink large-diameter, thick-walled sleeves efficiently. Sievert's own product page specifies the optimum working pressure as 1.5 bar rather than the 2 bar maximum — worth noting for professional cable joiners who need to dial in precise shrinking conditions. The 60° neck tube angle is designed for horizontal sleeve work.
Key Features & Benefits
Large Sleeve Capability — 50–150mm Diameter
— The correct burner for large heat shrink sleeves used in medium-voltage cable jointing and telecommunications infrastructure.
Sweeping Soot-Free Windproof Flame — Yellow-and-blue, clearly visible in daylight — soot-free for clean application on cable sheathing.
Fresh Air Inlet — Cool Burner Head — Keeps the burner head cool to minimise burning risk on shrink material.
11.5kW Output — Powerful enough for efficient large sleeve shrinking at optimum working pressure of 1.5 bar.
Optimum Working Pressure 1.5 Bar — Sievert specify 1.5 bar as the optimum pressure for this burner — a professional calibration detail for cable joining applications.
60° Neck Tube Angle — Designed for horizontal sleeve work — maintains the correct burner angle during a heat shrink session.
38mm Burner Diameter — Wider than the 3347 for greater heat coverage across large sleeve surfaces.
Twist 'N' Lock Fitting — Instant, tool-free connection to the Sievert 3366 Promatic handle.
Ideal For
Cable jointing — electrical & telecommunications
Heat shrink sleeves 50–150mm diameter
Medium & high-voltage cable infrastructure work
Large-diameter pipeline heat shrinking
Sievert Promatic 3366 handle owners
Upgrading from the 3347 (28mm) for larger sleeve diameters
The large-diameter soft flame burner for 50–150mm cable shrink sleeves. Also available: the 3347 (28mm) for sleeves up to 50mm.
Cable jointing, large heat shrink sleeves, pipeline shrinking
Also Available
Promatic 3347 (28mm) – sleeves to 50mm
Features
Sievert Promatic 3341 Soft Flame Burner 38mm Features
Large Sleeve Capability — 50–150mm Diameter — The correct burner for large heat shrink sleeves used in medium-voltage cable jointing and telecommunications infrastructure.
Sweeping Soot-Free Windproof Flame — Yellow-and-blue, clearly visible in daylight — soot-free for clean application on cable sheathing.
Fresh Air Inlet — Cool Burner Head — Keeps the burner head cool to minimise burning risk on shrink material.
11.5kW Output — Powerful enough for efficient large sleeve shrinking at optimum working pressure of 1.5 bar.
Optimum Working Pressure 1.5 Bar — Sievert specify 1.5 bar as the optimum pressure for this burner — a professional calibration detail for cable joining applications.
60° Neck Tube Angle — Designed for horizontal sleeve work — maintains the correct burner angle during a heat shrink session.
38mm Burner Diameter — Wider than the 3347 for greater heat coverage across large sleeve surfaces.
Twist 'N' Lock Fitting — Instant, tool-free connection to the Sievert 3366 Promatic handle.
