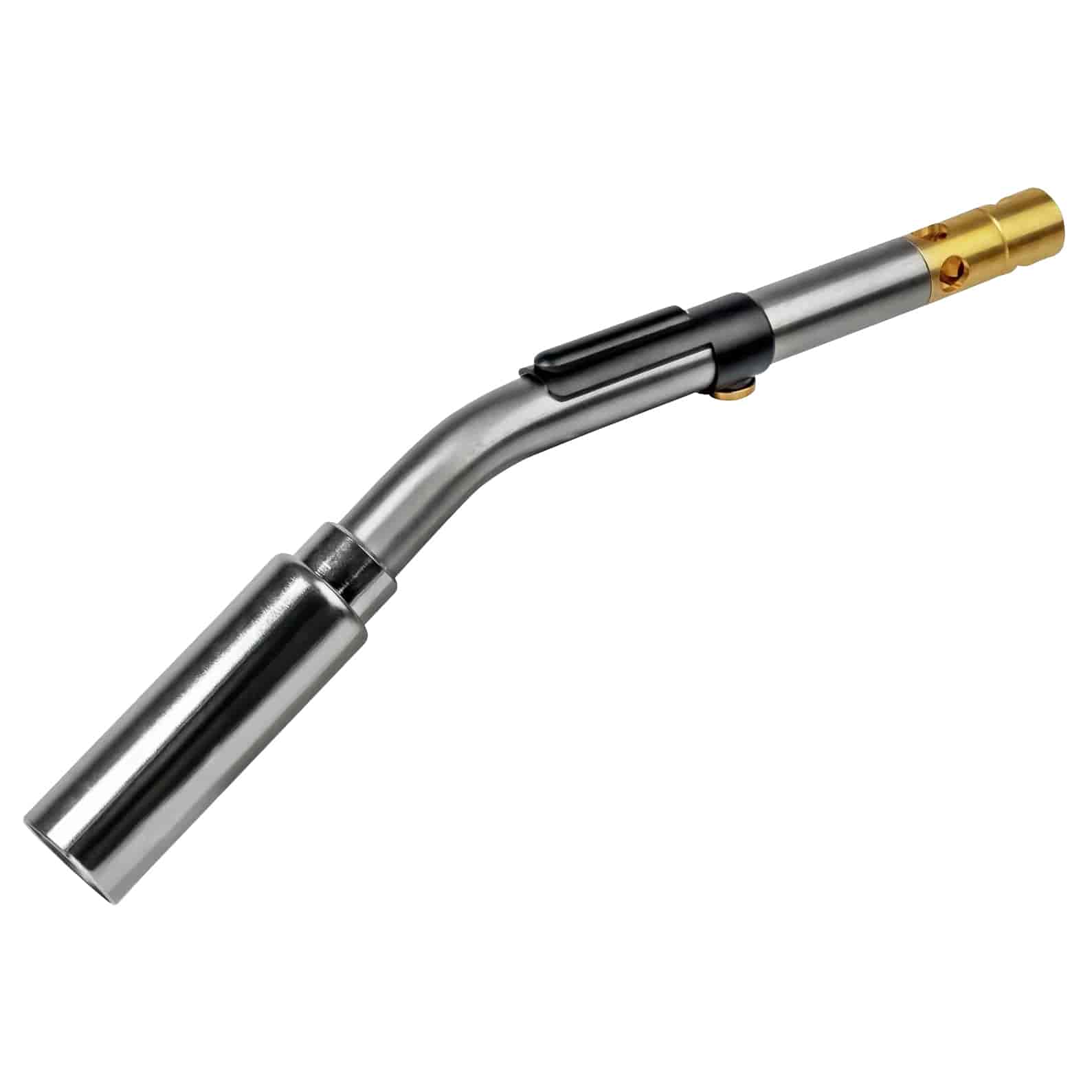

Sievert Promatic 3336 Large Cyclone Burner – 25mm | Brazing to 32mm | Soft Soldering up to 70mm
This Promatic cyclone burner is a real powerhouse when it comes to large pipe diameters. Its spinning flame transfers heat evenly and all round for top results in brazing pipes up to 32mm (720°C) & soft soldering up to 70mm (400°C). This includes a 7.4kW output at 2 bar, 580g/h of gas & a 25mm burner. This all fits onto a 120mm neck tube at a 30 degree angle. Also attaches to the Sievert 3366 Promatic handle.
Key Features & Benefits
A Cyclone Flame That Wraps Around Pipes for Efficient Heat - Perfect for Large Pipe Jobs — The cyclone type of Promatic burner is the best for large diameter brazing and soft soldering - this means the flame will wrap around the pipe and give you even heat transfer across the whole job.
Brazing Pipes up to 32mm Diameter (up to 720°C) — This Promatic burner is the biggest you'll find for brazing pipes - ideal for jobs like copper pipe with 28mm & 35mm diameters.
Soft Soldering up to 70mm Diameter Pipes (up to 400°C) — Similar to the 3344 Standard Burner, but with the cyclone heat for better efficiency.
7.4kW Output at 2 Bar - Plenty of Power for Big Jobs — This one puts out as much power as the 3344 medium standard burner, but with even better efficiency because of its cyclone heat.
580g/h Gas Consumption - Nice and Consistent — Like the 3344 at the same output level.
25mm Burner Diameter - the biggest in the Promatic cyclone range — We've taken the cyclone burner head and given it the biggest pipe diameter in the standard range.
120mm Neck at a Comfortable 30° Angle — This is at a nifty angle so you can easily position it for the best results on larger pipe jobs.
Stainless Steel - Built to Last for Pro Users — Its made from high quality stainless steel, so you can bet on it lasting.
Twist 'n Lock Fitting - Easy Attach to Your Promatic Handle — No need for tools, just pop it on and off easily with your Sievert 3366 Promatic handle.
Ideal For
Brazing copper pipes up to 22mm & 28mm diameter
Soft soldering big pipes up to 70mm in diameter
Installing big commercial and industrial plumbing jobs
Heating engineers working with larger diameter pipes
People with a Sievert Promatic 3366 handle who need to upgrade from the smaller cyclone burner.

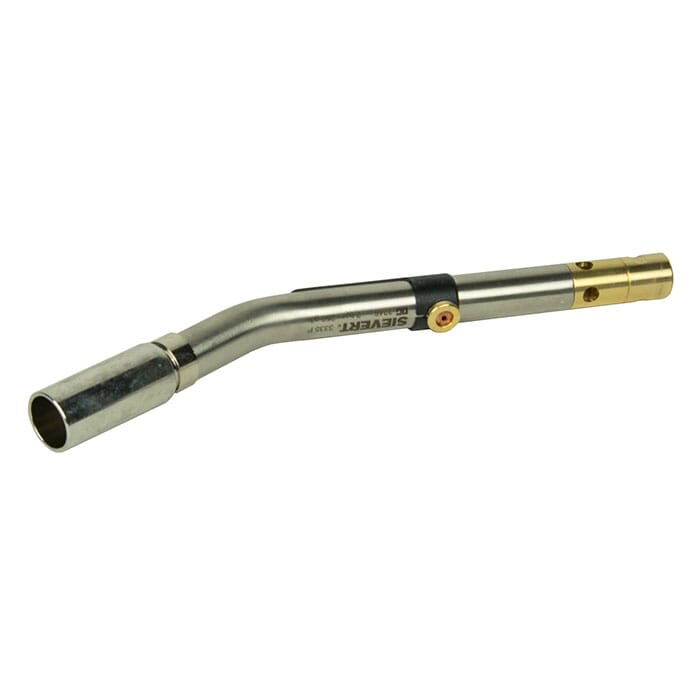

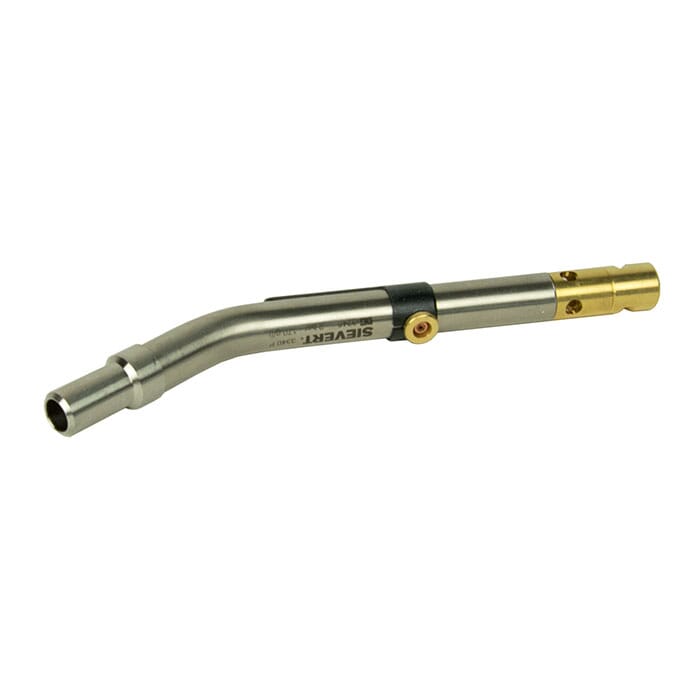

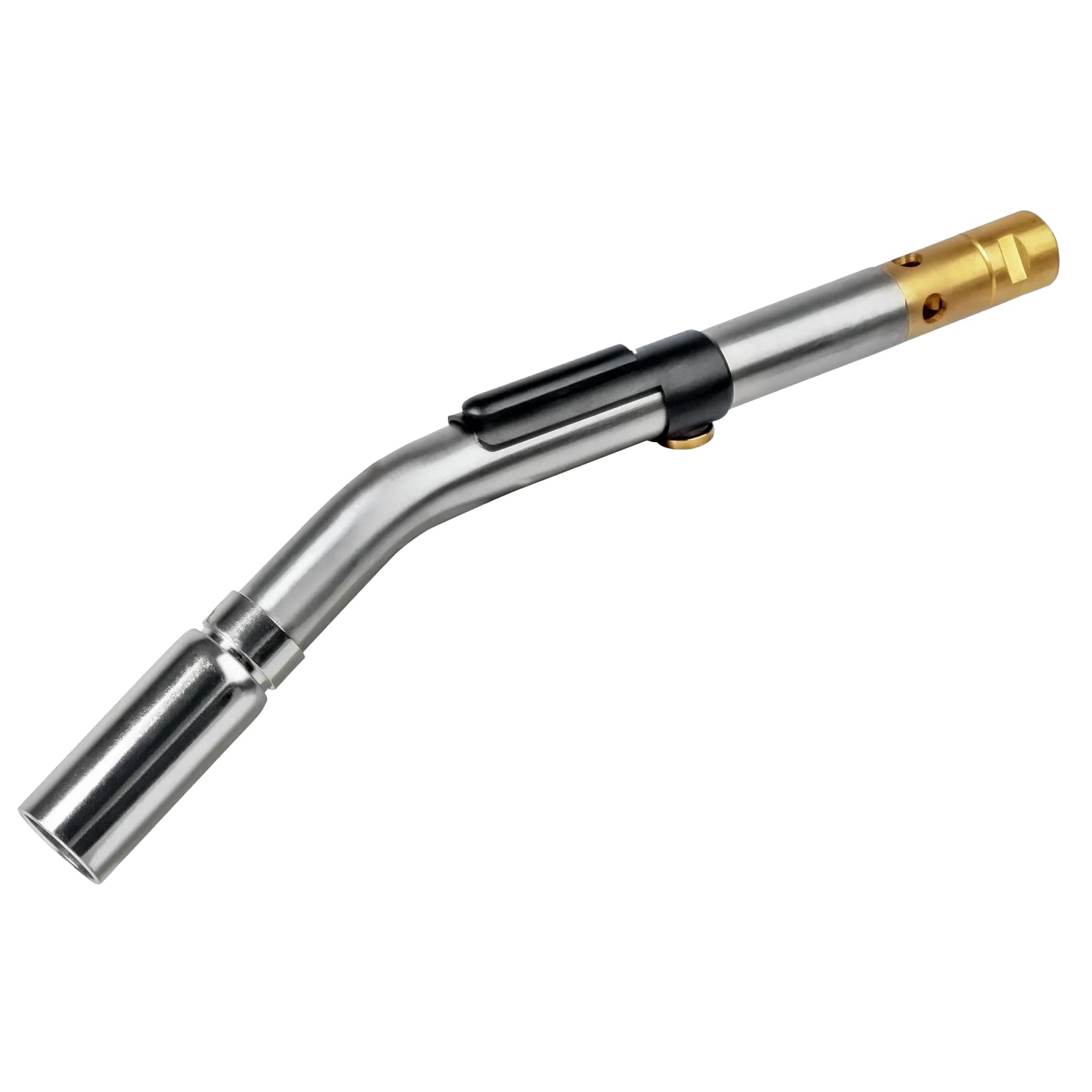

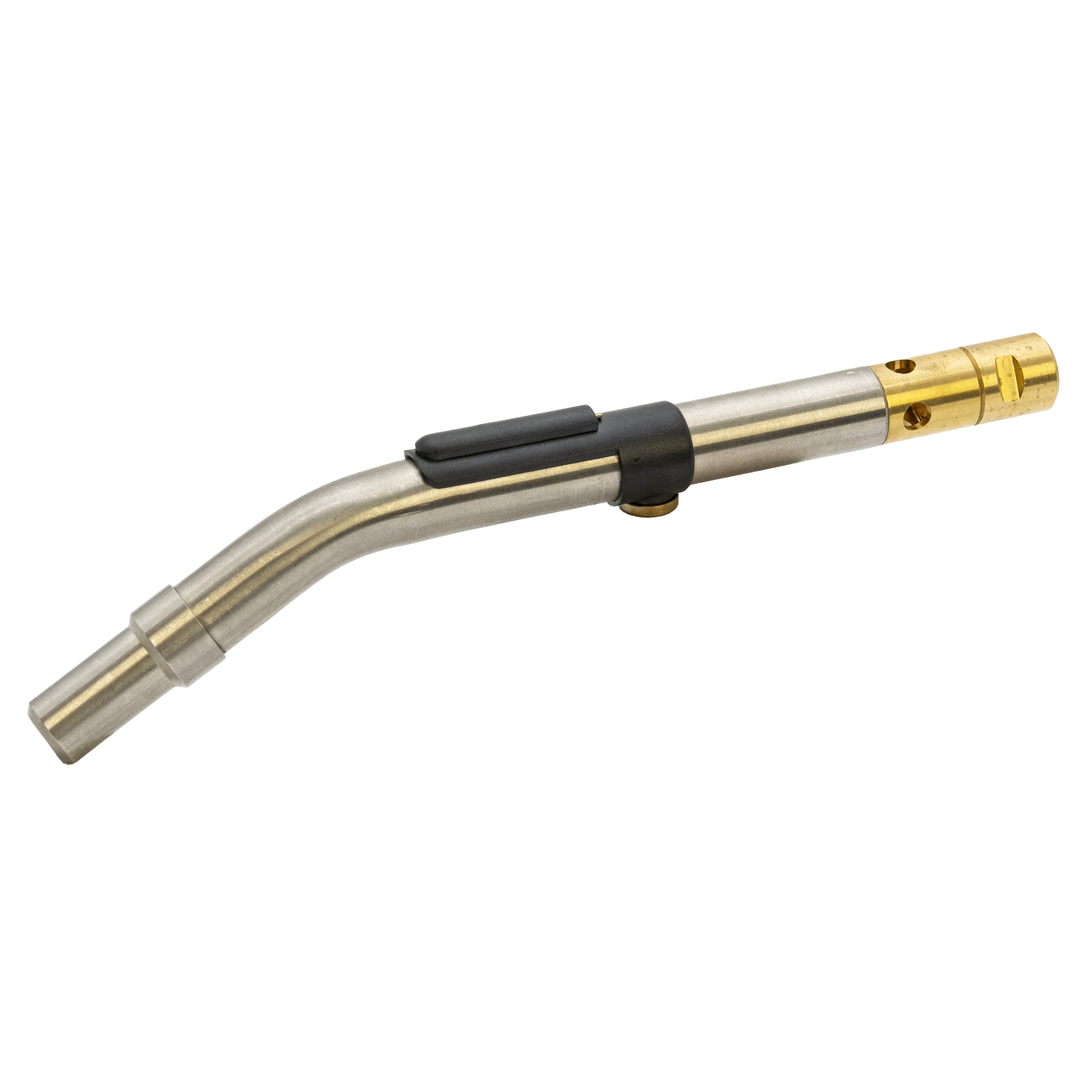

Your go to cyclone burner for 22mm, 28mm and large pipes. You can also get the medium cyclone (19mm) and the small cyclone (14mm) burner.
Specification
Sievert Promatic 3336 Large Cyclone Burner Specification
Brazing & soft soldering – large-diameter pipe work
Features
Sievert Promatic 3336 Large Cyclone Burner Features
Cyclone Rotating Flame for Large Pipe — The most efficient Promatic burner type for large-diameter brazing and soft soldering — rotating flame wraps around the pipe for even, all-round heat transfer.
Brazing to 32mm Pipe Diameter (up to 720°C) — The largest brazing pipe capacity in the Promatic cyclone range — for 28mm and 35mm copper pipe brazing applications.
Soft Soldering to 70mm Pipe Diameter (up to 400°C) — Wide soft soldering coverage matching the 3344 medium standard burner.
7.4kW Output at 2 Bar — High output for large pipe work — matched to the 3344 medium standard burner in output but delivered as cyclone heat for greater efficiency.
580g/h Gas Consumption — Consistent with the 3344 standard burner at the same output level.
25mm Burner Diameter — The largest cyclone burner head in the Promatic standard range.
120mm Neck Tube at 30° — Angled for comfortable positioning on larger pipe joints.
Stainless Steel Construction — Durable for sustained professional site use.
Twist 'N' Lock Fitting — Instant, tool-free connection to the Sievert 3366 Promatic handle.
