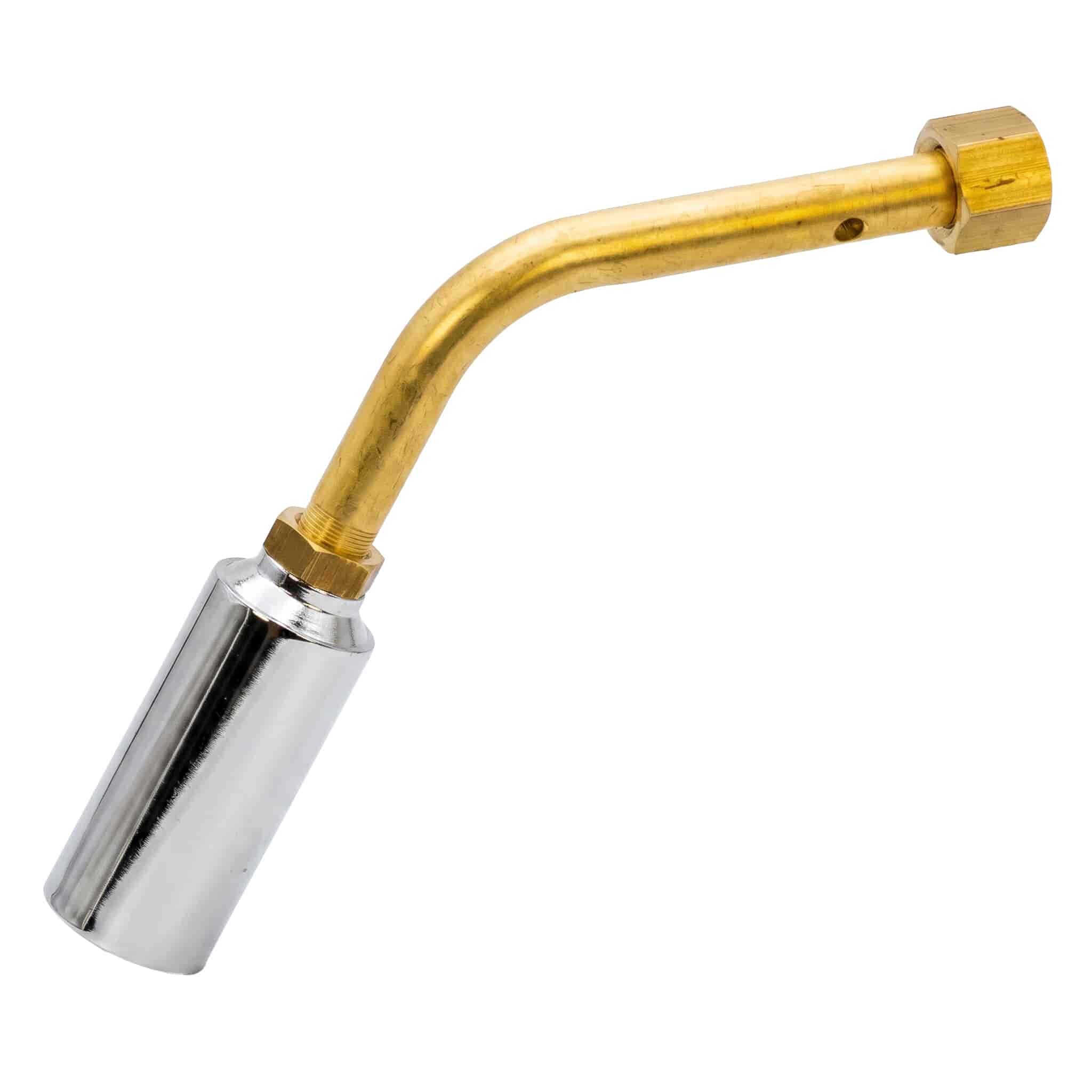

This is a soft flame burner designed for cable work, cable jointing and heat shrinking on the Sievert Pro 86/88 system. It's got a brilliant yellow-and-blue windproof flame that's soot-free and won't mess up your cable sheathing. It's also got a clever fresh air inlet that keeps the burner head nice and cool - stops the sleeve material from burning or charring. No need for a neck tube either - just screw it straight into your Pro 86/88 handle. The specs are 11.3kW and 900g/h at 2 bar, with a 28mm diameter and an 80mm integrated neck tube at 30°.
The 3528 is a direct connection soft flame burner for your Pro 86/88 handle system - unlike other burners which need a separate neck tube, this one just screws straight into the handle's outlet without any fuss. That makes it the most compact soft flame option for the Pro 86/88 system - the 80mm integrated neck puts the burner nice and close to the handle for cable jointing work where you need to get in around a cable sleeve. Positioning isn't always a problem around a sleeve.
The flame is a beautiful sweeping yellow-and-blue that distributes heat evenly across the shrink sleeve. The fresh air inlet does it's job by drawing in ambient air to keep the burner head cool, which stop's it burning or charring the sleeve material at the point of contact. The windproof design keeps the flame going smoothly even in the great outdoors. The 3529 (38mm) is the next size up for bigger sleeve diameters.
Key Features & Benefits
Just Screw it In — No Neck Tube Needed : G 3/8"-19 thread connects straight to the Pro 86/88 handle outlet. It's the most compact soft flame on the Pro system.
Awesome Soot-Free Flame : Yellow-and-blue and visible in daylight - soot-free for clean application on cables, and windproof for outdoor work.
Cool Burner Head : Gets ambient air drawn in during operation to keep the burner head cool and stops any burning or charring of the shrink material.
11.3kW / 900g/h : More power than the Promatic 334791 soft flame burner (5.9kW) - you get to do heat shrinking faster with the same burner diameter.
80mm Neck at 30° : Perfect for cable jointing work.
High Quality Brass & Stainless Steel Construction
What It's Good For
Cable jointing & general cable work heat shrinking
All heat shrink sleeve applications
Outdoor work involving a soft flame that can withstand the weather
Anyone with a Pro 86 (3486) or Pro 88 (3488) handle
If you want a compact soft flame burner that doesn't need a neck tube
A compact direct-connection soft flame for cable jointing and heat shrinking on the Pro 86/88 system. The Sievert 3528 Soft Flame Burner is in stock and ready to ship. Handle sold separately. Also available: 3529 (38mm) for bigger sleeve diameters.
G 3/8"-19 – direct to Pro 86/88 handle, no neck tube needed
Integrated Neck Tube
80mm at 30°
Material
Brass & stainless steel
Compatible Handles
Sievert Pro 86 (3486) & Pro 88 (3488)
Suitable Applications
Cable jointing, cable work & heat shrinking
Larger Option
Sievert 3529 (38mm) – for larger sleeve diameters
Features
Sievert 3528 Soft Flame Gas Blow Torch Burner - 28mm Features
Direct Pro Handle Connection — No Neck Tube Required — G 3/8"-19 thread connects directly to the Pro 86/88 handle outlet. The most compact soft flame configuration on the Pro system.
Sweeping Soot-Free Windproof Flame — Yellow-and-blue, visible in daylight — soot-free for clean application on cable sheathing. Windproof for outdoor cable jointing sites.
Fresh Air Inlet — Cool Burner Head — Ambient air drawn in during operation keeps the burner head cool and prevents burning or charring the shrink material.
11.3kW / 900g/h — More output than the equivalent Promatic 334791 soft flame burner (5.9kW) — for faster heat shrinking at the same 28mm burner diameter.
80mm Integrated Neck Tube at 30° — Compact positioning for cable jointing work.
