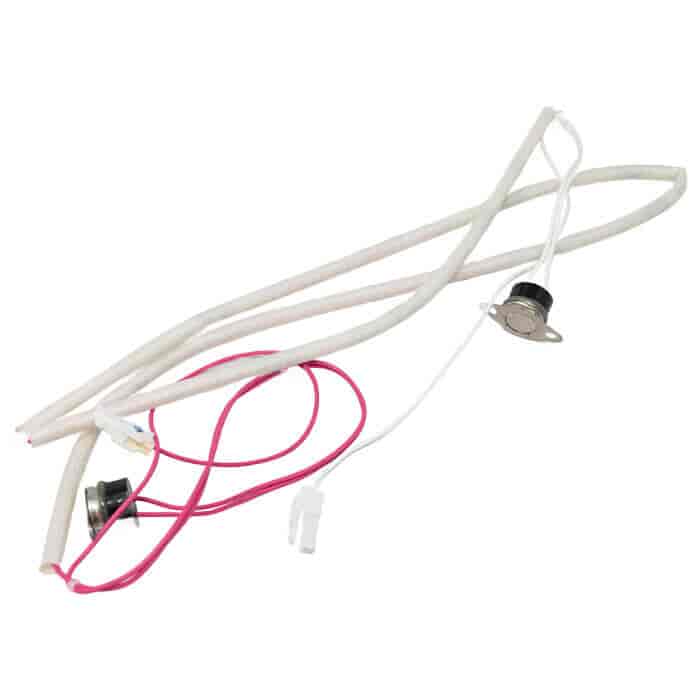

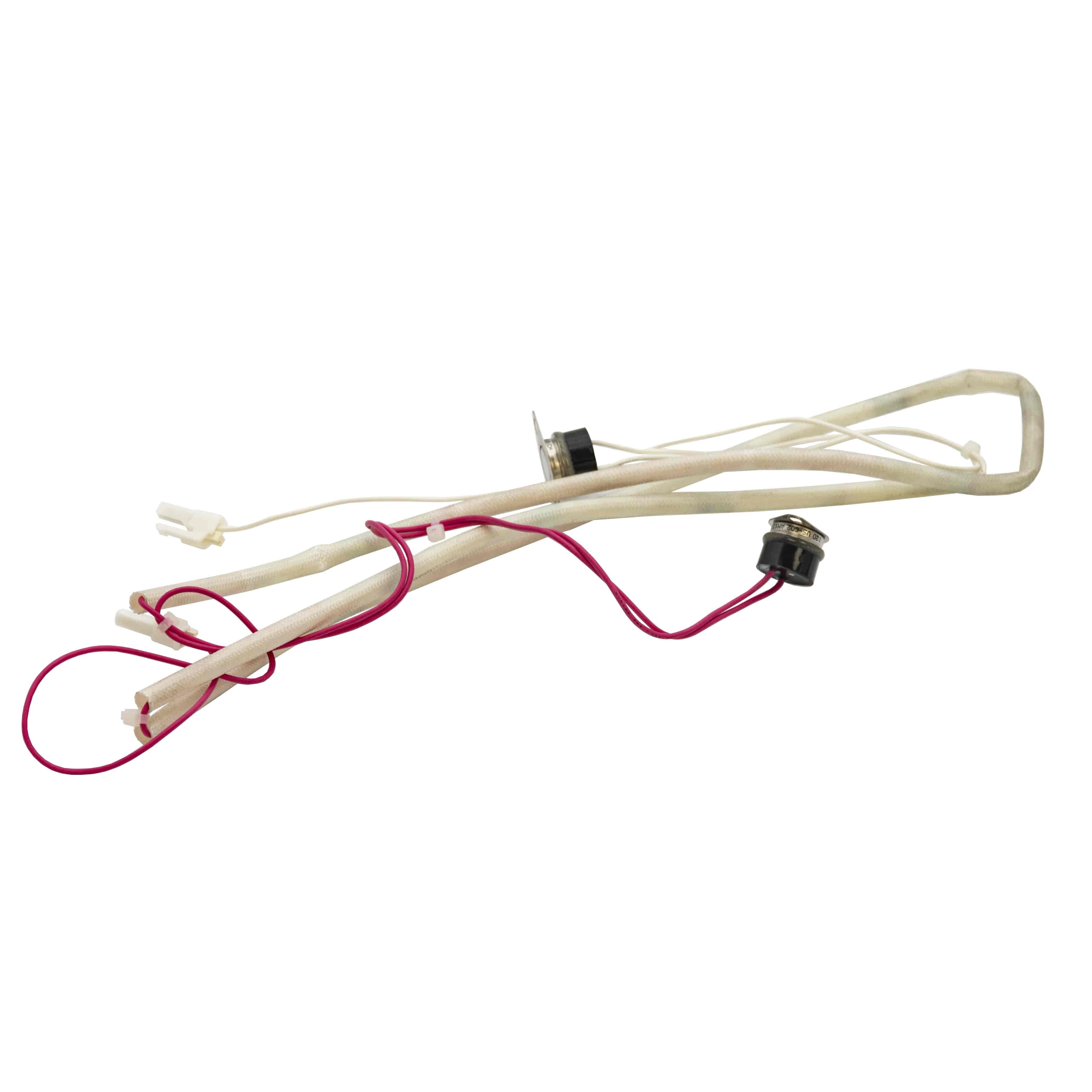

The thermal fuse harness on a Rinnai HDC1200e connects the thermal fuse — a critical overheat safety device — to the control system, allowing the appliance to shut down safely if it runs too hot. As with any wiring component in a safety circuit, its condition matters as much as the fuse it's connected to.
This genuine Rinnai fuse harness is made to the original specification. Where the existing harness has degraded or failed, replacing it with the genuine part restores that safety signal path properly, keeping the appliance's overheat protection working as designed rather than relying on a compromised connection.
⚠ Important: Installation and servicing must be carried out by a qualified technician familiar with Rinnai products. Turn off the gas supply and disconnect power before beginning any servicing.
Key Features & Benefits
Perfect Compatibility: Genuine Rinnai component for a seamless fit with the HDC1200e.
Restores Safety Circuit Continuity: Maintains the connection between the thermal fuse and control system.
Quality Assurance: Manufactured under Rinnai's own quality controls for reliability and longevity.
Safety First: Replacing a worn harness with genuine parts reduces the risk of malfunctions.
Ideal For
Rinnai HDC1200e gas water heaters.
Scheduled servicing and preventative maintenance.
Qualified technicians familiar with Rinnai products.
Repairing overheat safety circuit faults.
Common Problems This Part Will Fix
Broken Overheat Safety Circuit: Restores the connection between the thermal fuse and control system where the original harness has failed.
Corroded or Damaged Wiring: Replaces a harness where connector or wiring damage is interrupting the safety signal.
Intermittent Safety Circuit Faults: Resolves faults caused by a poor or inconsistent connection in the thermal fuse circuit.
Appliance Locking Out on Safety Fault: Addresses lockouts linked to the control system losing communication with the thermal fuse.
Why Buy This Product?
This harness carries the signal that lets your HDC1200e shut down safely if it overheats, so it's not a component worth leaving in doubt. Fitting the genuine Rinnai part restores that safety circuit properly, rather than relying on a harness that may already be part of the fault.
Order the Rinnai HDC1200e Replacement Thermal Fuse Harness online today.
