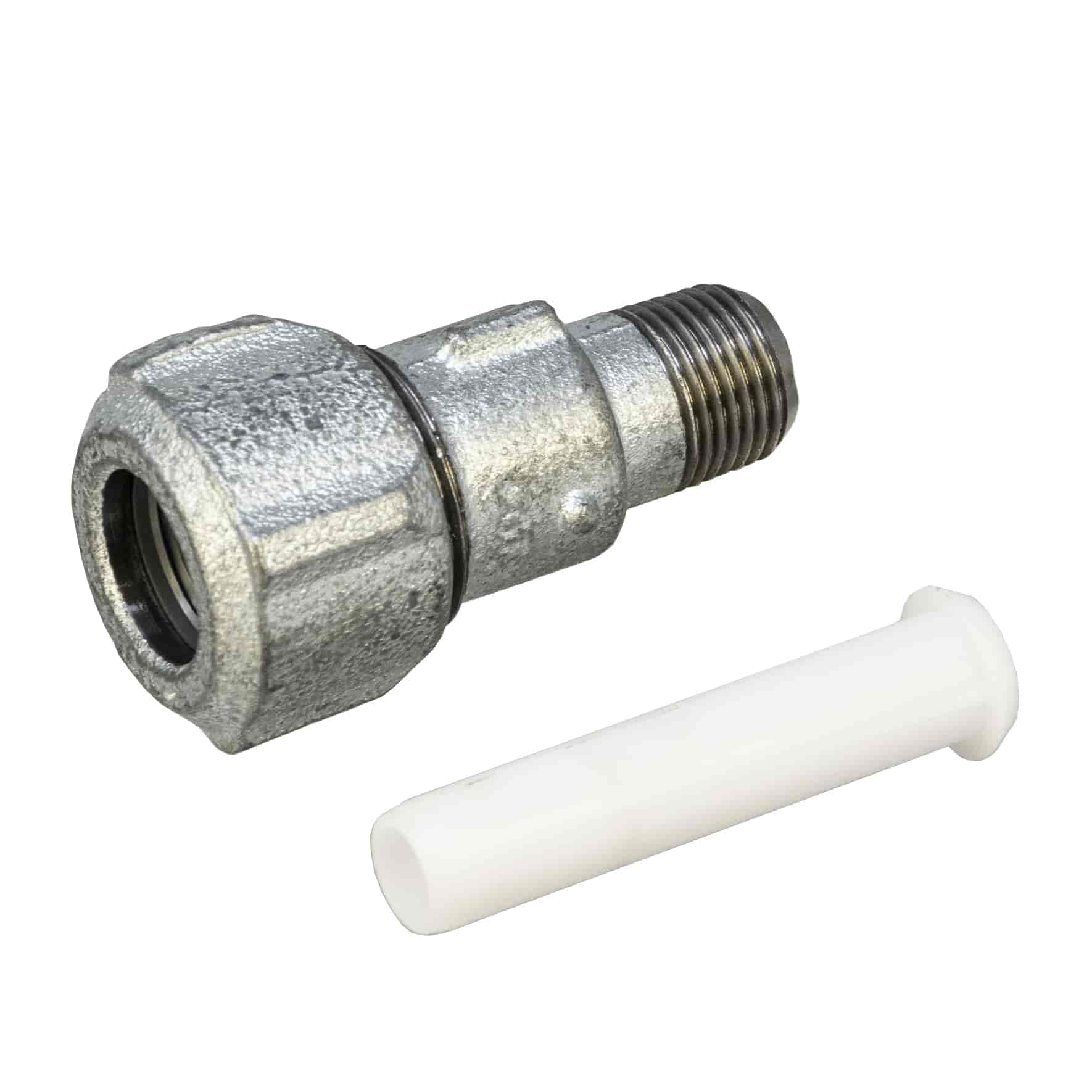

Primofit® Galvanised Gas Adaptor 1/2" BSPM x 20mm MDPE (775 202 201)
The Primofit® Galvanised Gas Adaptor is a compression fitting for connecting 20mm yellow MDPE gas pipe to 1/2" BSP male threaded steel pipework. A secure, leak-free solution for Natural Gas and LPG installations, it meets BS EN 10255, BS EN 10220 and ISO 7-1 standards.
Manufactured under a BS EN ISO 9001 quality system, this adaptor is designed for long life in domestic, commercial and light industrial applications. The galvanised body and nut are corrosion resistant, and the insert stiffeners support MDPE pipe integrity.
For above-ground or underground use (with corrosion tape, sold separately), this adaptor also meets GIS/PL3 specified installations where galvanised components are required.
Key Features & Benefits
MDPE-to-Steel Connection: Compression fitting simplifies transitions without welding or threading.
Galvanised Finish: Nut and body are zinc coated for maximum corrosion resistance and durability.
Insert Stiffeners: Ensures pipe grip and alignment under pressure.
7 Bar at 20°C: Suitable for most residential and commercial gas applications.
6° Angular Deflection: Allows for slight pipe misalignment during installation.
BSP Thread: Male BSPT and female BSPP threads to ISO 7-1 for easy fitting.
Natural Gas & LPG: Suitable for all gas supply systems.
Underground Installation: Use with corrosion tape (sold separately) for buried pipelines.
Ideal For
Connecting MDPE gas pipe to 1/2" BSP male threaded steel pipework.
Residential, commercial and light industrial gas installations.
A compression joint that needs no heat, threading or welding genuinely speeds up an MDPE-to-steel transition on site, and galvanised construction meets GIS/PL3 requirements where corrosion resistance is specified for underground work. Included insert stiffeners protect the MDPE pipe from deformation under the compression nut, supporting long-term joint integrity.
Order the Primofit® Galvanised Gas Adaptor 1/2" BSPM x 20mm MDPE online today.
Specification
Primofit® Galvanised Gas Adaptor 1/2" BSPM x 20mm MDPE Specification
Brand
Georg Fischer – Primofit®
Part Number
775 202 201
Standards
BS EN 10255, BS EN 10220 and BS EN ISO 9001
Angular Deflection
6°
Colour/Material
Galvanised Malleable Iron
Pressure
7 Bar at 20°C
Size
1/2" BSPM x 20mm MDPE
Temperature Range
-20°C to 40°C
Dimensions
75mm x 45mm
Insert Stiffeners Included
Yes – For Added Stability with MDPE Pipes
Suitable Gases
Natural Gas & LPG
Suitable Applications
To Join Yellow Gas MDPE Pipe to Steel Pipe
Warranty
12 Months
Features
Primofit® Galvanised Gas Adaptor 1/2" BSPM x 20mm MDPE Features
MDPE-to-Steel Connection: Compression fitting simplifies transitions without welding or threading.
Galvanised Finish: Nut and body are zinc coated for maximum corrosion resistance and durability.
Insert Stiffeners: Ensures pipe grip and alignment under pressure.
7 Bar at 20°C: Suitable for most residential and commercial gas applications.
6° Angular Deflection: Allows for slight pipe misalignment during installation.
BSP Thread: Male BSPT and female BSPP threads to ISO 7-1 for easy fitting.
Natural Gas & LPG: Suitable for all gas supply systems.
Underground Installation: Use with corrosion tape (sold separately) for buried pipelines.
