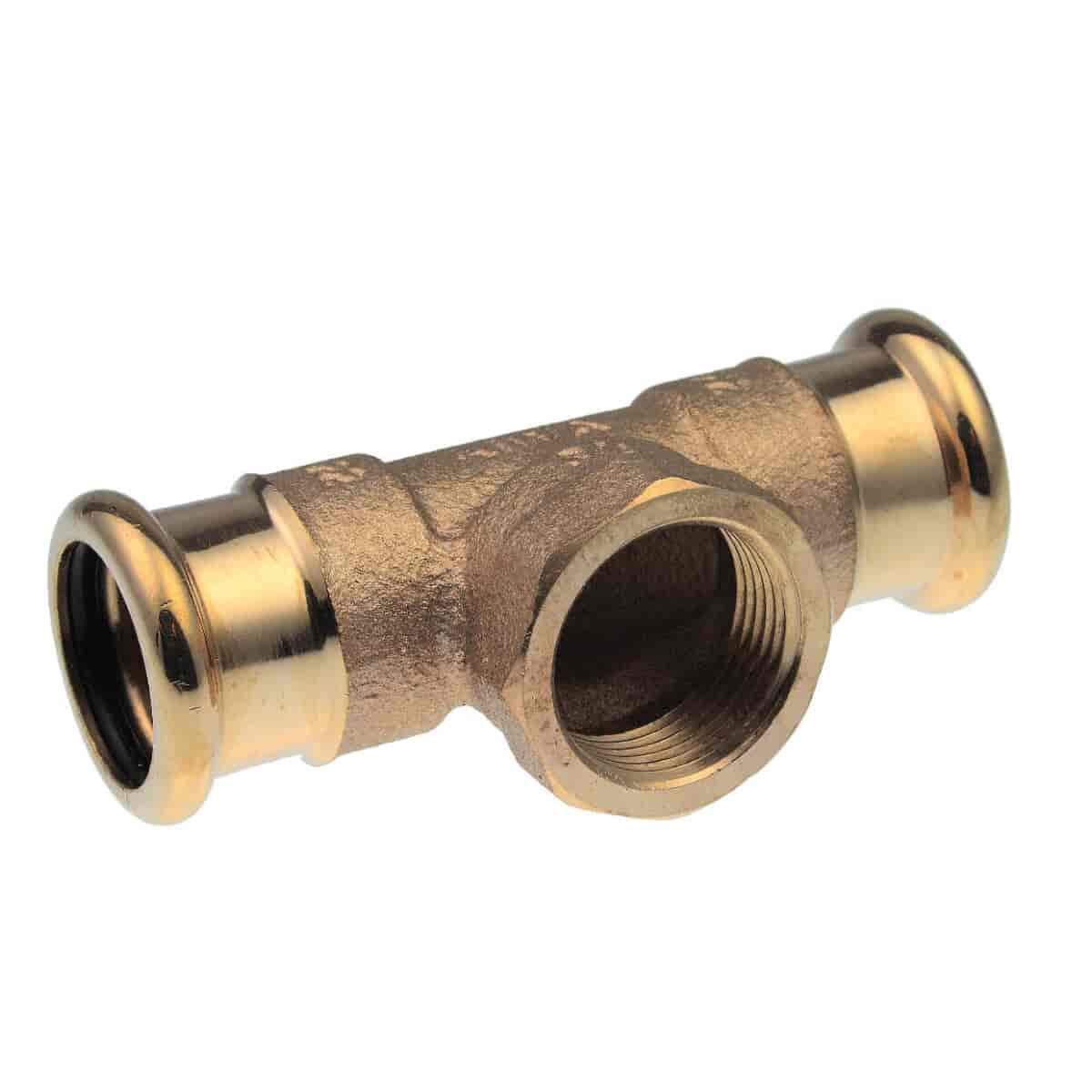

Pegler VSH Xpress Water Tee Female BSP Branch 54 x 54mm x 1/2" BSP FM
In stock
SKU
38597
£38.78
£32.32
Or 3 Interest-Free Payments of £12.93
Description
The Pegler Yorkshire VSH XPress stands out as a premier press-fit system, boasting a wide-ranging and adaptable selection suitable for various modern building services. Its design ensures quick, economical, and dependable connections. This innovative and user-friendly system provides the advantages of a no-heat press-fit method, enhancing efficiency and cost savings with each joint made. Its performance is noteworthy, offering a clean, heat-free process that outshines its competitors. The system is ideal for a variety of settings, such as residential complexes, commercial buildings, and public utilities. It melds high performance with a swift, heat-free installation process, presenting a comprehensive system solution.
- BSI kitemarked
- WRAS approved
- Heat free installation
- 25 years guarantee
Specification
Pegler VSH Xpress Water Tee Female BSP Branch 54 x 54mm x 1/2" BSP FM Specification
| Brand | Pegler Yorkshire Xpress |
|---|---|
| Approvals | WRAS & KIWA |
| Kitemark | BS 8537:2010 |
| Standards | BS EN 1057 R250/R290 |
| Manufactured/Approved to | BS EN ISO 9001:2008 |
| Connection Type | M Press |
| For use with | Water |
| Max. Operating Pressure | 16 bar |
| Operating Pressure | Working Pressure Range : 16 bar at -24° C to 110° C |
| Equal/Reducing | Reducing Tee |
| Fitting Type | Tee, Female BSP Branch x Press Fit both ends |
| Material | Brass |
| Size | 54mm x 54mm x 1/2" Bsp Female |
| Dimensions | 65mm x 75mm x 135mm |
| Application | Designed for use on hot and cold water services, vented and unvented closed circuit heating and chilled water applications |
Features
Pegler VSH Xpress Water Tee Female BSP Branch 54 x 54mm x 1/2" BSP FM Features
<table id="product-attribute-specs-table" class="data-table" style="width: 100%; height: 340px;">
<tbody>
<tr class="even">
<th class="label">Brand</th>
<td class="data last">Pegler Yorkshire Xpress</td>
</tr>
<tr class="odd">
<th class="label">Approvals</th>
<td class="data last">WRAS & KIWA</td>
</tr>
<tr class="even">
<th class="label">Kitemark</th>
<td class="data last">BS 8537:2010</td>
</tr>
<tr class="odd">
<th class="label">Standards</th>
<td class="data last">BS EN 1057 R250/R290</td>
</tr>
<tr class="even">
<th class="label">Manufactured/Approved to</th>
<td class="data last">BS EN ISO 9001:2008</td>
</tr>
<tr class="odd">
<th class="label">Connection Type</th>
<td class="data last">M Press</td>
</tr>
<tr class="even">
<th class="label">For use with</th>
<td class="data last">Water</td>
</tr>
<tr class="odd">
<th class="label">Max. Operating Pressure</th>
<td class="data last">16 bar</td>
</tr>
<tr class="even">
<th class="label">Operating Pressure</th>
<td class="data last">Working Pressure Range : 16 bar at -24° C to 110° C</td>
</tr>
<tr class="odd">
<th class="label">Equal/Reducing</th>
<td class="data last">Reducing Tee</td>
</tr>
<tr class="even">
<th class="label">Fitting Type</th>
<td class="data last">Tee, Female BSP Branch x Press Fit both ends</td>
</tr>
<tr class="odd">
<th class="label">Material</th>
<td class="data last">Brass</td>
</tr>
<tr class="even">
<th class="label">Size</th>
<td class="data last">15mm x 15mm x 1/2" Bsp Female</td>
</tr>
<tr class="odd">
<th class="label">Dimensions</th>
<td class="data last">30mm x 40mm x 68mm</td>
</tr>
<tr class="even">
<th class="label">Application</th>
<td class="data last">Designed for use on hot and cold water services, vented and unvented closed circuit heating and chilled water applications</td>
</tr>
</tbody>
</table>
