Pegler VSH Xpress Water Male Coupling - 28mm x 1" BSP M

In stock
SKU
38118
£9.67 £8.06
Or 3 Interest-Free Payments of £3.22
apple pay
klarna
google pay
paypal
chevron-up
Description

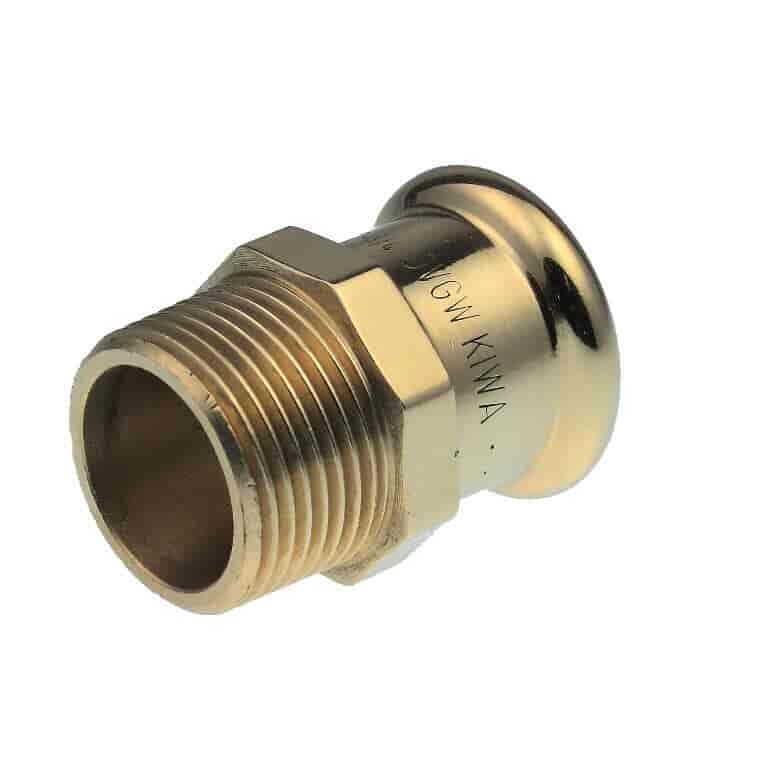

Pegler Yorkshire VSH XPress 28mm x 1" BSP Male Water Coupling (38118)

Joining 28mm copper tube to a 1" threaded fitting without a flame is what this press-fit male coupling is for. The Pegler Yorkshire VSH XPress Water Male Coupling has a press end for 28mm copper tube and a 1" BSP taper male thread, so it connects copper pipework to a female BSP taper threaded fitting. It is a water-range XPress fitting, for use on hot and cold water services and on vented and unvented closed circuit heating and chilled water applications.

The fitting is BSI Kitemark approved to BS 8537:2010 and is WRAS and Kiwa approved. The press end is for use with copper tube to BS EN 1057 R250 and R290 and M-profile press jaws, and the 25-year Pegler guarantee applies when it is used with copper tube to BS EN 1057 (conditions apply). The Leak Before Press feature means a fitting that has not been pressed shows up when you pressure test the system.

The fitting is rated at 16 bar from -20°C to 110°C. Don’t use water-range XPress fittings on gas. For gas pipework use the XPress Gas range, which has its own approvals and lower pressure limits. Seal the threaded connection with a thread sealant suitable for the application, press every joint and test the system as part of your installation process.

Key Features & Benefits
  • Press x BSP Taper Male: 28mm press end and a 1" BSP taper male thread.
  • Heat-Free Press-Fit: No naked flame or hot works permit is needed to make the press joint.
  • BSI Kitemark (BS 8537:2010): Approved for the XPress range from 12mm to 108mm.
  • WRAS and Kiwa Approved: For use on water services.
  • Leak Before Press: Unpressed fittings show up during pressure testing.
  • 16 bar, -20°C to 110°C: The water-range pressure and temperature rating.
  • For Copper Tube to BS EN 1057 R250 and R290: M-profile press end.
  • 25-Year Guarantee: With copper tube to BS EN 1057, conditions apply.
Ideal For
  • Connecting 28mm copper tube to a 1" BSP taper female threaded fitting on water systems.
  • Hot and cold water services.
  • Vented and unvented closed circuit heating and chilled water applications.
  • Installers who want a heat-free press joint instead of soldering or brazing.
Why Buy This Product?

For a 28mm copper to 1" BSP taper male connection on a water system, this XPress fitting gives you a heat-free press joint with a Kitemark and a 16 bar rating. If you are not sure you need a 1" BSP taper male thread, contact our team before you order.

Order the Pegler Yorkshire VSH XPress 28mm x 1" BSP Male Water Coupling online today.

Specification

Pegler VSH Xpress Water Male Coupling - 28mm x 1" BSP M Specification

Brand Pegler Yorkshire XPress
Product Code 38118
Product Type XPress Water Straight Male Connector (Press x BSP Taper Male)
Size 28mm x 1" BSP Taper Male
Equal/Reducing Adapting
Material Copper
Approvals WRAS & Kiwa; BSI Kitemark (BS 8537:2010)
For Use With BS EN 1057 R250 / R290 Copper Tube
Connection Press (M Profile) x BSP Taper Male
For Use With Water Only, Not for Gas
Maximum Operating Pressure 16 bar
Temperature Range -20°C to 110°C
Guarantee 25 Years With BS EN 1057 Copper Tube (Conditions Apply)
Suitable Applications Hot & Cold Water Services; Vented & Unvented Closed Circuit Heating; Chilled Water
Features

Pegler VSH Xpress Water Male Coupling - 28mm x 1" BSP M Features

  • Press x BSP Taper Male: 28mm press end and a 1" BSP taper male thread.
  • Heat-Free Press-Fit: No naked flame or hot works permit is needed to make the press joint.
  • BSI Kitemark (BS 8537:2010): Pegler states approval for the range from 12mm to 108mm.
  • WRAS and Kiwa
  • 16 bar, -20°C to 110°C: Pegler's stated water-range rating.
  • For Copper Tube to BS EN 1057 R250 and R290: M-profile press end.
  • 25-Year Guarantee: With copper tube to BS EN 1057, conditions apply.
