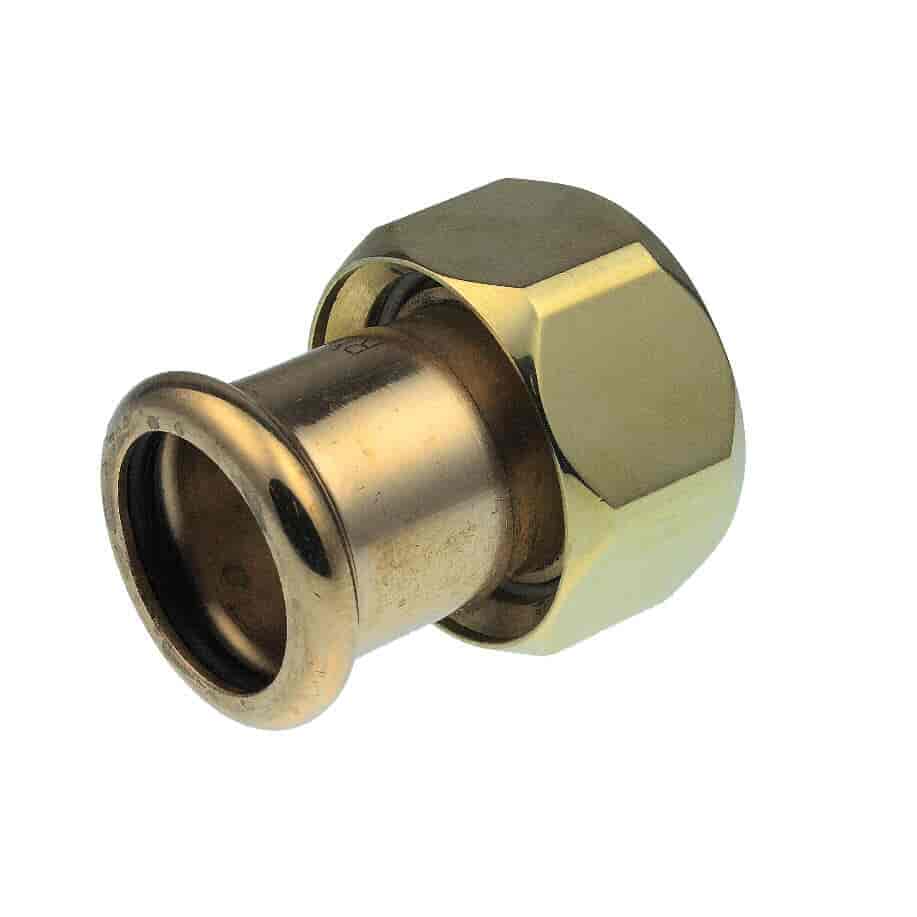

The Pegler Yorkshire VSH XPress Water Female Union connects 22mm copper tube to a 1" female thread through a union nut. The tube end is joined with a press tool, so no heat, solder or flux is used, and the union nut makes a demountable connection to a threaded fitting. The body is bronze.
It is Kitemarked to BS 8537:2010 and approved by WRAS and KIWA, with a working pressure of 16 bar from -20°C to 110°C. It is made for hot and cold water services, vented and unvented closed circuit heating and chilled water systems, and is used with copper tube to BS EN 1057 in domestic and commercial buildings. The Leak Before Press feature shows up any unpressed fittings when the system is tested.
For water systems only. Do not use this fitting on gas. The union connects to a parallel male thread, and a flat seal ring is included. Check the seal ring and the sealing faces before assembly, hand-tighten the nut, then turn it a further 1/8 to 1/4 turn with a matching spanner. Have the installation carried out by a competent installer.
This union joins 22mm copper tube to a 1" threaded connection with a heat free press joint and a demountable union nut. It is Kitemarked to BS 8537:2010, approved by WRAS and KIWA, and rated to 16 bar, with a flat seal ring included.
Order the Pegler VSH Xpress Water Female Union - 22mm x 1" Female Union online today.
| Brand | Pegler Yorkshire Xpress |
|---|---|
| Approvals | WRAS & KIWA |
| Kitemark | BS 8537:2010 |
| For Use With | Copper tube to BS EN 1057 R250/R290 |
| Connection Type | Press x Female Union |
| Suitable For | Water |
| Max. Operating Pressure | 16 bar |
| Working Pressure Range | 16 bar at -20°C to 110°C |
| Equal/Reducing | Adapting |
| Fitting Type | Female Union |
| Material | Bronze |
| Size | 22mm x 1" Female Union |
| Seal | Flat seal ring included |
| Weight | 0.07 kg |
| Application | Hot and cold water services, vented and unvented closed circuit heating and chilled water applications |
