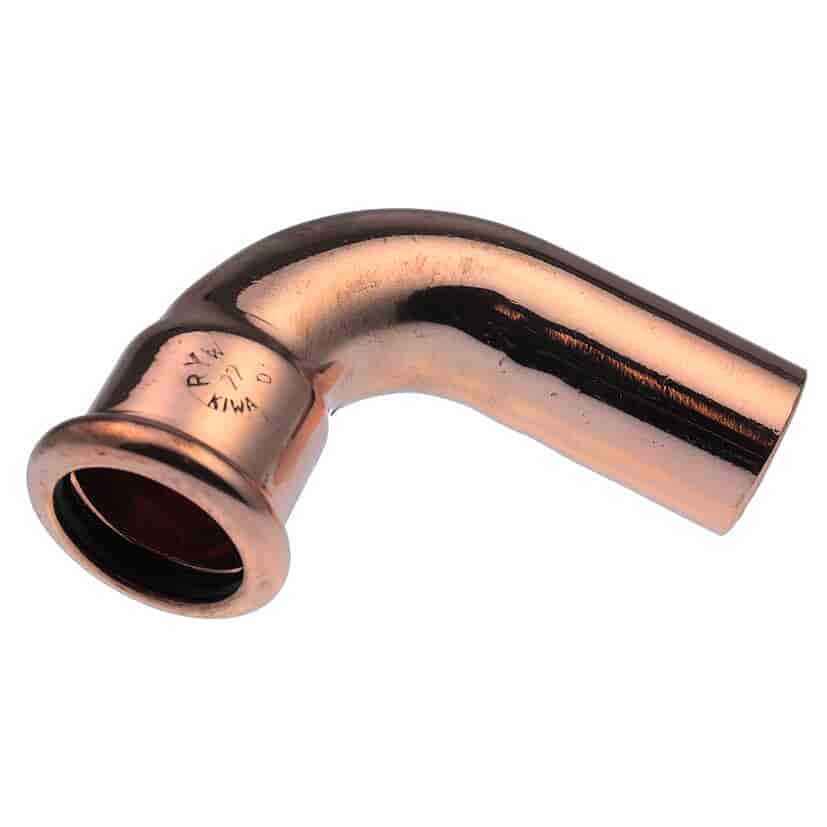

A street elbow lets you turn a corner straight into another fitting. The Pegler Yorkshire VSH XPress S12S is a copper 90° street elbow with a press end on one side and a plain male end on the other, for pushing into another XPress fitting. It’s for jointing 35mm copper tube without a flame.
It’s BSI Kitemark approved to BS 8537:2010 and WRAS approved, and Pegler lists DVGW, Kiwa Regulation 4 and OVGW (water) approvals as well. It’s for hot and cold water services, vented and unvented closed circuit heating and chilled water, and rated to 16 bar across a temperature range of -24°C to 110°C. The Leak Before Press feature means an unpressed fitting shows up during pressure testing. The press end is M-profile jaw compatible, for use with half-hard and hard copper tube to BS EN 1057 R250 and R290, and it carries Pegler’s 25-year manufacturer’s guarantee (conditions apply).
The joint needs no flame, though site rules still apply. This fitting is for water and heating, and isn’t for gas: Pegler has a separate XPress Gas range. Note that it has one press end and one male end, so check you need a street elbow and not a standard elbow with two press ends.
When you need a 90° turn straight into another XPress fitting, a street elbow saves a joint. This one is Kitemarked and WRAS approved, with Leak Before Press and no flame needed.
Order the Pegler Yorkshire VSH XPress 35mm Water 90° Street Elbow online today.
| Brand | Pegler Yorkshire |
|---|---|
| Product Code | 38324 (S12S) |
| Product Type | XPress 90° Street Elbow |
| Size | 35mm |
| Ends | Press x Male (Plain Spigot) |
| Material | Copper |
| Approvals | BSI Kitemark (BS 8537:2010); WRAS; DVGW; Kiwa Regulation 4; OVGW (Water) |
| For Use With | BS EN 1057 R250 / R290 Copper Tube |
| Connection | Press (M Profile) |
| Maximum Pressure | 16 bar |
| Temperature Range | -24°C to 110°C at 16 bar |
| Guarantee | 25 Years (Conditions Apply) |
| Suitable Applications | Hot and Cold Water, Vented and Unvented Closed Circuit Heating, Chilled Water |
| Not Suitable For | Gas (Use XPress Gas Range) |
