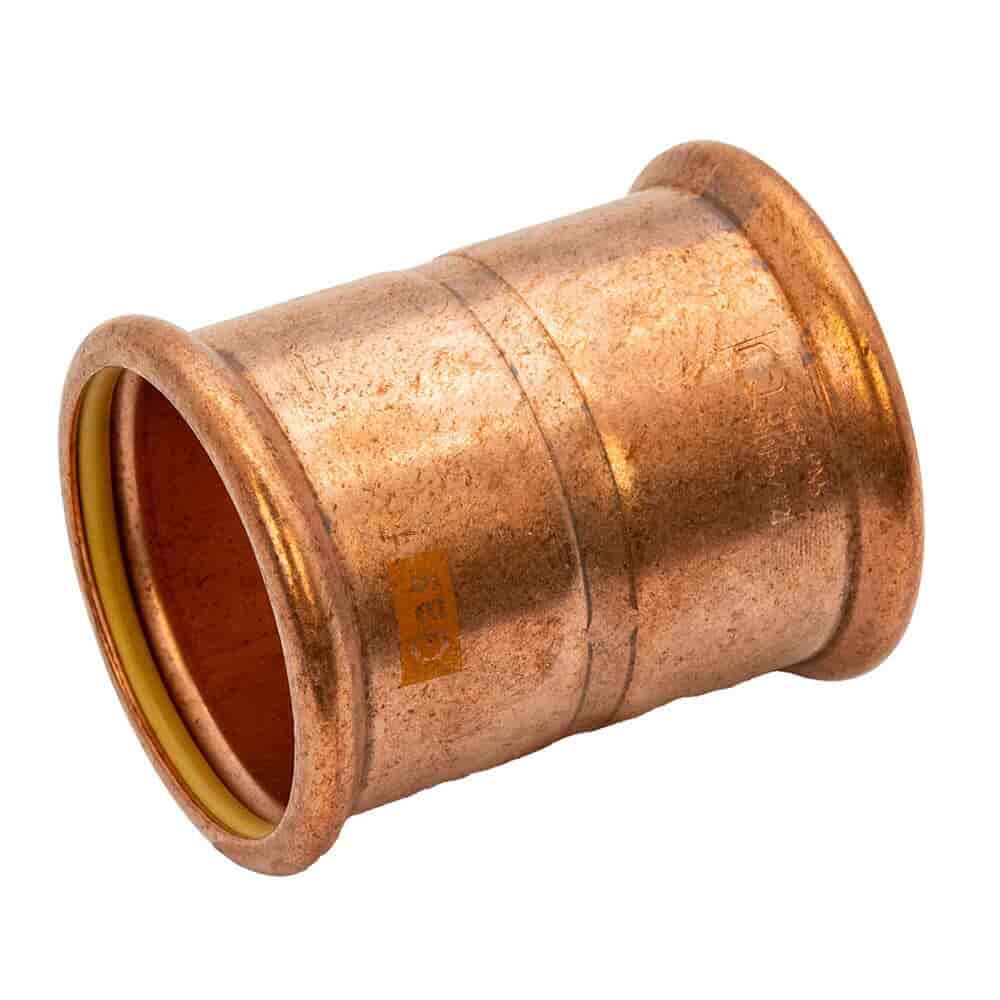

The Pegler VSH Xpress 54mm Gas Straight Coupling is part of the industry leading press-fit system for safe, fast and heat-free gas installations. Made from high quality copper and BSI Kitemark approved to BS 8537:2010 this coupling is reliable, efficient and compliant for domestic, commercial and public utility projects.
With its Leak Before Press feature any unpressed fittings are easily detected during testing, so installers have total peace of mind. The heat-free installation removes the need for hot works permits, reducing project time, cost and insurance requirements. Backed by a 25 year guarantee this coupling will give long life in gas distribution systems.
Heat-Free Installation – No hot works permits required, installation is faster and safer
Leak Before Press Technology – Unpressed fittings are detected during system testing
Certified & Approved – BSI Kitemark (BS 8537:2010) and Gastec approved for gas applications
Durable Copper Construction – Strong and long life
Wide Operating Range – -20°C to 70°C and up to 16 bar
Time & Labour Saving – Press-fit jointing reduces installation costs compared to traditional methods
25 Year Guarantee – Long life backed by Pegler’s quality assurance
Easy Identification – Yellow O-ring and clear exterior marking for quick system recognition
Domestic & commercial gas pipework installations
Fast, secure and heat-free jointing solutions
Installers needing Gastec approved fittings with full UK compliance
Residential complexes, commercial buildings and public utility services
Save time, reduce costs and have a heat-free installation with Pegler’s trusted press-fit system. Add to basket now for fast UK & Ireland delivery.
| Brand | Pegler Yorkshire Xpress |
|---|---|
| Approvals | Gastec approved |
| Kitemark | BS 8537:2010 |
| Standards | BS EN 1057 R250/R290 |
| Manufactured/Approved to | BS EN ISO 9001:2008 |
| Connection Type | M Press |
| For use with | Gas |
| Max. Operating Pressure | 16 bar |
| Operating Pressure | Working Pressure Range : 1 bar (internal use), 5 bar (external use) at -20°C to 70°C |
| Equal/Reducing | Equal |
| Fitting Type | Straight Coupling |
| Material | Copper |
| Size | 54mm |
| Dimensions | 65 x 65 x 80mm |
| Application | Desgned for use on domestic & commercial gas services. |
Heat-Free Installation – Eliminates the need for hot works permits, making installation faster and safer
Leak Before Press Technology – Identifies unpressed fittings during system testing
Certified & Approved – BSI Kitemark (BS 8537:2010) and Gastec approved for gas applications
Durable Copper Construction – Ensures strength and long service life
Wide Operating Range – Suitable for temperatures from -20°C to 70°C and pressures up to 16 bar
Time & Labour Saving – Rapid press-fit jointing reduces installation costs compared to traditional methods
25-Year Guarantee – Long-lasting reliability backed by Pegler’s quality assurance
Easy Identification – Yellow O-ring and clear exterior marking for quick system recognition
