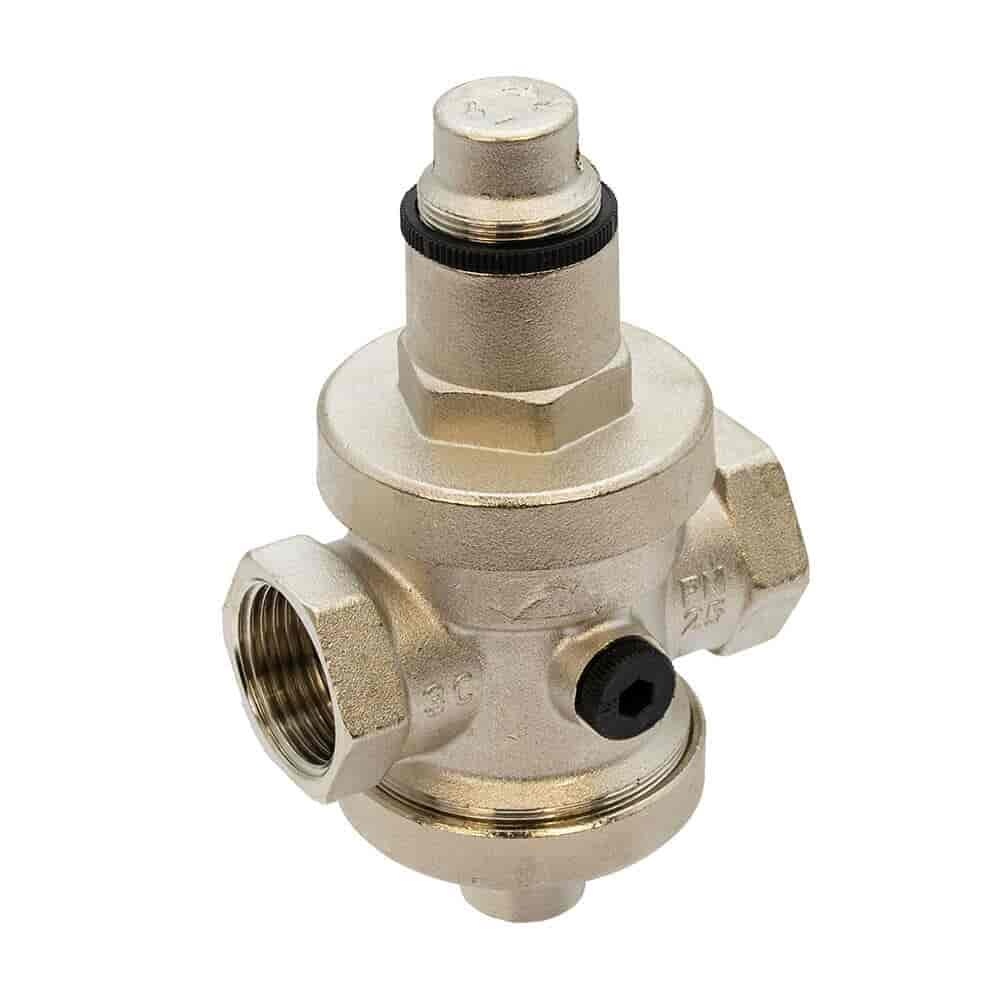

Pegler PRV4 PT Pressure Reducing Valve - 1" Bsp FM

Only 3 in Stock
Only 3 left
SKU
5A2033
£91.20 £76.00
Or 3 Interest-Free Payments of £30.40
apple pay
klarna
google pay
paypal
chevron-up
Description

The Pegler PRV4 PT Pressure Reducing Valve - 1" Bsp FM, is an ideal choice for both home and industrial settings. This valve boasts a brass body with a plated finish and offers a 1/4" outlet pressure gauge connection on each side. It's equipped with a brass diaphragm and a stainless steel seat. Pre-set to an outlet pressure of 3 bar, this versatile valve is designed to function effectively in any position, whether it's horizontal, vertical, or even upside-down. It's important to note that the PRV4 PT pressure reducing valve should be adjusted only when the system is not in operation.

Specification

Pegler PRV4 PT Pressure Reducing Valve - 1" Bsp FM Specification

Manufacturer Pegler
Connection Bsp Female
Inlet pressure Max: 25 Bar
Materials Brass, Stainless Steel
Outlet Pressure 0.5 - 6 bar
Size 1" Bsp Male
Max Operating Temperature 80°C
Reduction Ratio 5:1
Dimensions 155 x 80 x 100 mm
Features

Pegler PRV4 PT Pressure Reducing Valve - 1" Bsp FM Features

  • Stainless-steel bar (pressure reduces bigger than 1 inch)
  • Stainless-steel seat
  • Female x female connection ISO 228-1
  • Outlet pressure gauge connection on both sides
  • Brass diaphragm functioning
  • Adjustable outlet 0.5 to 6 bar and 5:1 reduction rate
  • Maximum operating temperature of 80 degrees
  • Maximum inlet pressure of 25 bar
  • PN25 water pressure reducing valve
