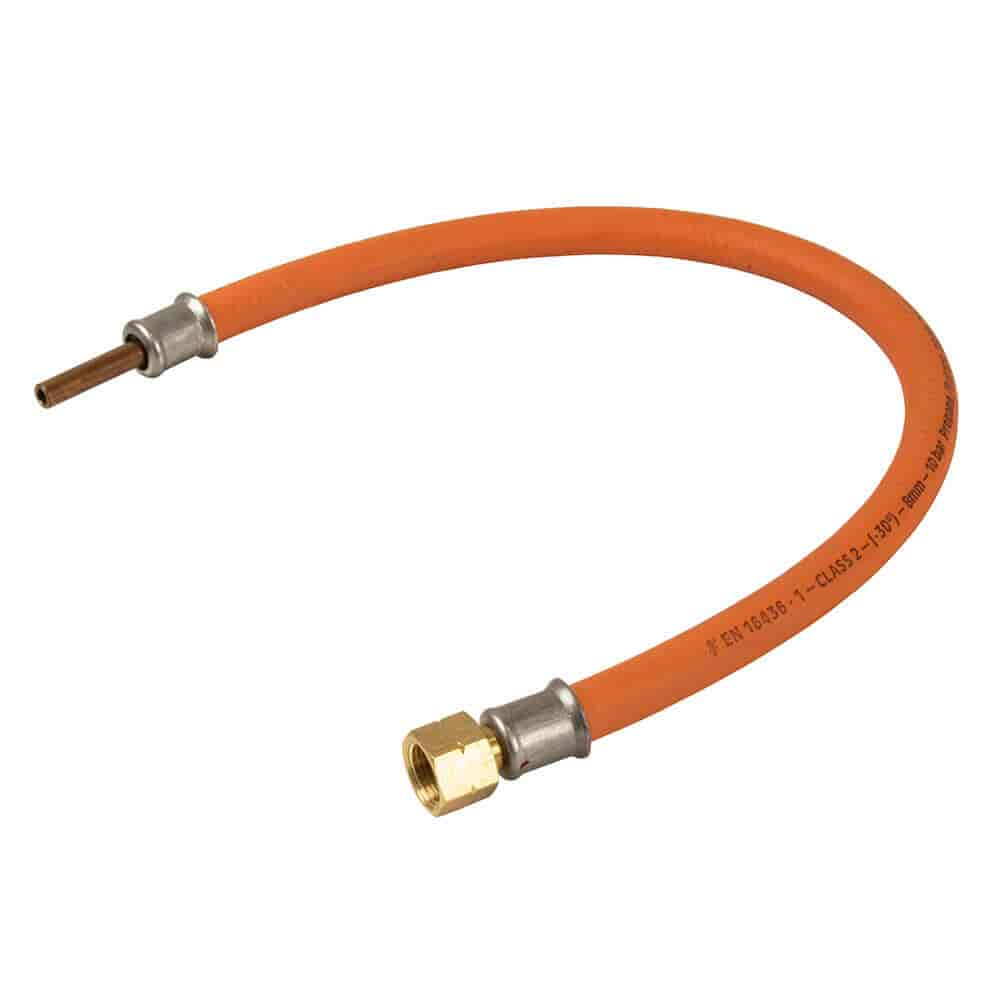

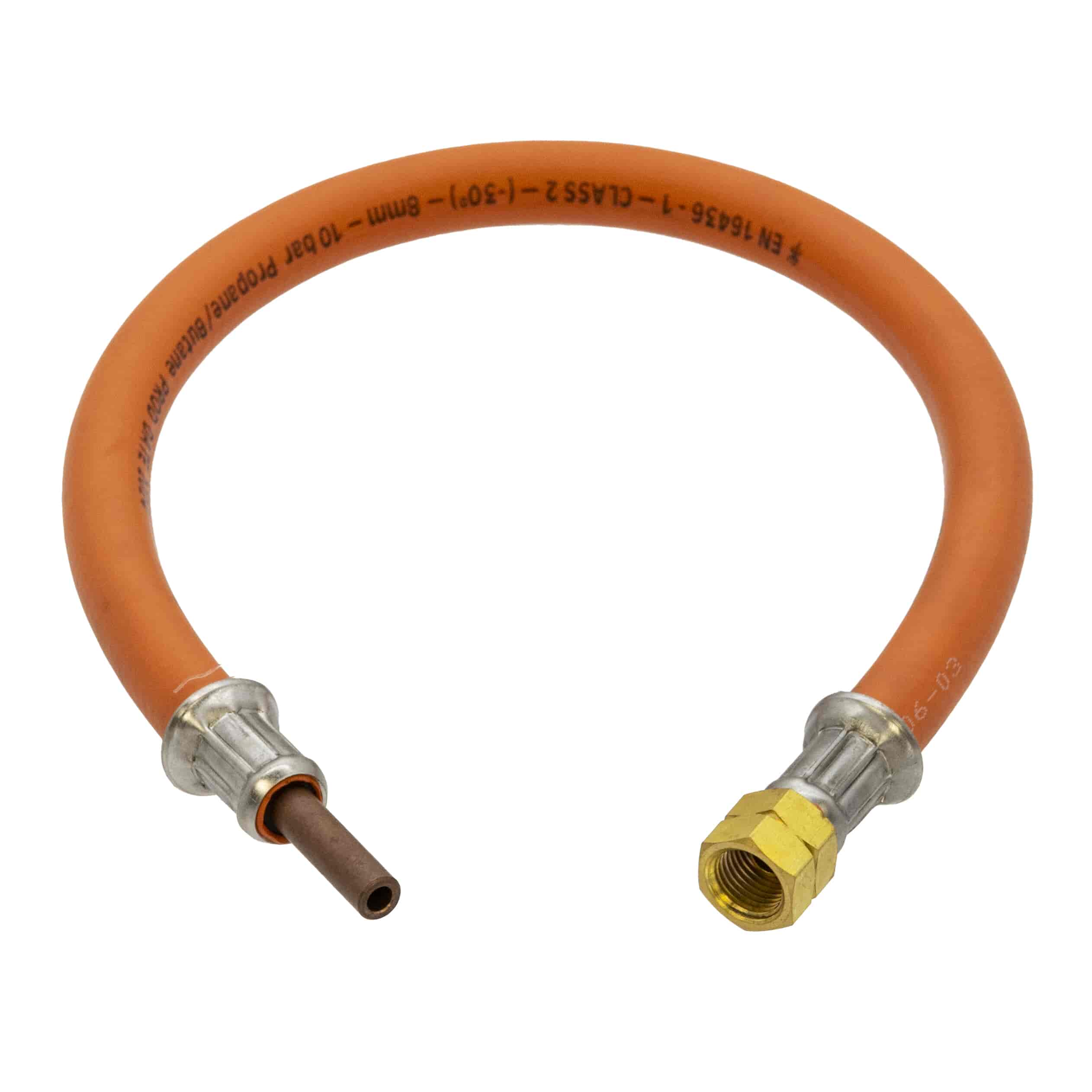

LPG High Pressure Gas Hose - 8mm Standpipe x 1/4" LH BSP Female | 450mm | EN 16436-1 Class 3
High pressure LPG gas hose with a 8mm copper standpipe at one end, the other end being 1/4" LH BSP female. It's 450mm long and has an 8mm internal diameter - bright orange to stand out. It can handle a max of 10 bar working pressure / 52 bar burst pressure. EN 16436-1 Class 3 certified. Perfect for propane or butane. Hamilton Gas Products supply this.
Key Features and The Benefits
Compression fitting on the standpipe end, 1/4" LH BSP female on the other - this is the standard thread direction for LPG connections to your appliances and regulators.
450mm Length - Long enough for any caravan or marine installation - we made it a practical length so you have enough room to connect lots of things.
8mm bore - this is standard for LPG hoses in this application range.
10 Bar max working pressure / 52 Bar burst pressure - as you'd expect from a high pressure LPG hose.
Compliant to EN 16436-1 Class 3 - meets all the required standards for safety.
Orange - so you can easily spot it - standard for LPG hoses and makes it easy to keep track of where your LPG connections are.
Works with both Propane and Butane - so it doesn't matter which one you use.
Ideal For
Caravan and motorhome LPG appliance connections
Marine LPG installations
Commercial and industrial LPG system hose runs requiring a mixed-end hose (standpipe to LH female)
Get your high-pressure LPG gas hose now and start enjoying the peace of mind that comes with a job done right
Specification
LPG High Pressure Gas Hose - 8mm Standpipe x 1/4" LH FM, 450mm Specification
Brand
Hamilton Gas Products
Connection A
8mm copper standpipe
Connection B
1/4" LH BSP female
Length
450mm
Internal Diameter
8mm
Max Working Pressure
10 bar
Burst Pressure
52 bar
Gas Type
LPG – propane and butane
Colour
Orange
Standard
EN 16436-1 Class 3
Suitable Applications
Residential, marine, commercial & industrial LPG systems
Features
LPG High Pressure Gas Hose - 8mm Standpipe x 1/4" LH FM, 450mm Features
8mm Copper Standpipe × 1/4" LH BSP Female - Compression fitting on the standpipe end; left-hand thread BSP female on the other - the standard LPG thread direction for appliance and regulator connections.
450mm Length - Practical metric length for connecting appliances and regulators in caravans, motorhomes and marine installations.
8mm Internal Diameter - Standard bore for LPG hose assemblies in this application range.
10 Bar Maximum Working Pressure / 52 Bar Burst Pressure
EN 16436-1 Class 3 Compliant
Orange Colour - Standard LPG hose identification.
Propane and Butane Compatible
