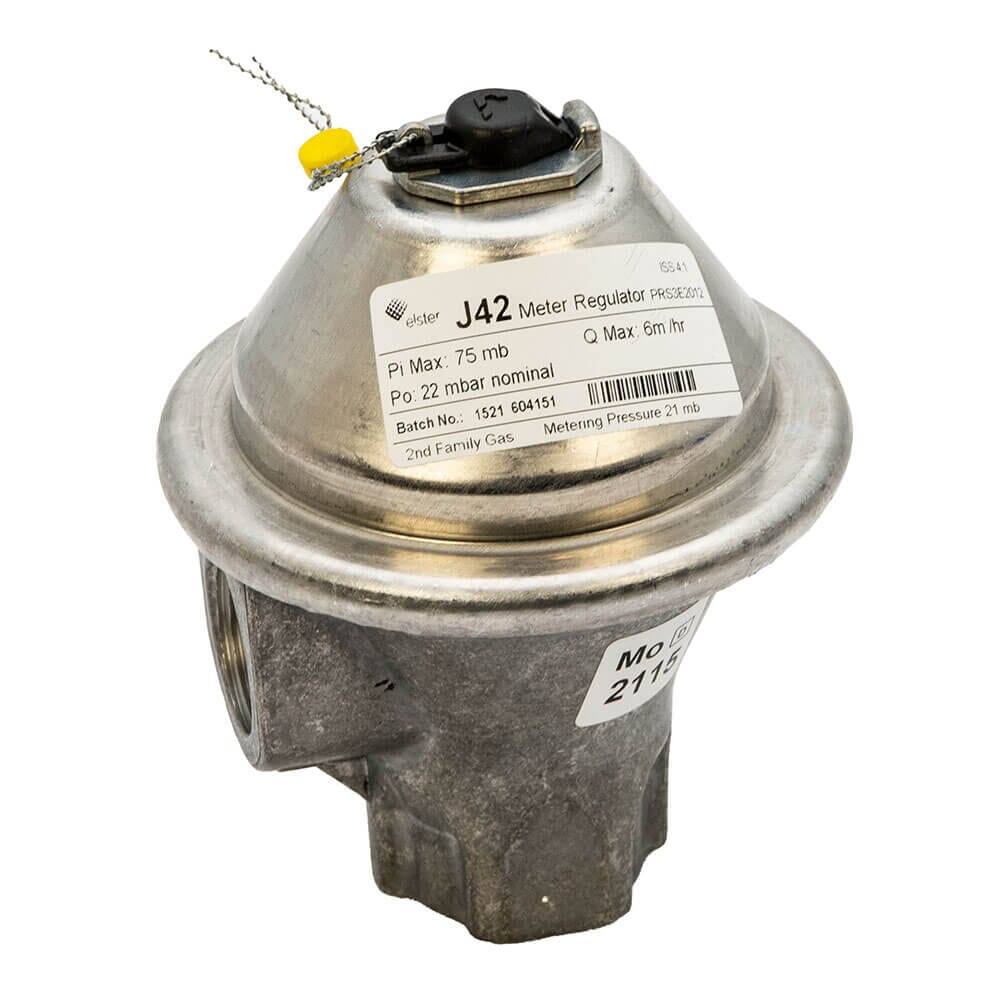

The J42 is an angled type regulator designed for low pressure domestic meter applications with inlet pressures up to 350mb, with full lock-up capability and is supplied with integral under pressure cut off (UPCO). The UPCO version has an automatic reset which re-establishes supply dependant upn the system integrity. It can be mounted in either a vertical or horizontal orientation, and is suitable for use with natural gas.
Specification
Elster Jeavons (J42) 3/4" Domestic Angle Pattern Gas Regulator with UPCO Specification
Type
Jeavons J42
Max Inlet Pressure
350 mbar
Pressure Outlet Range
21 mbar
Capacity
6m³/hr
Inlet
3/4" Bsp female
Outlet
3/4" Bsp female
Standards
PRS 3
Pattern
Angled
UPCO (Under pressure cut off)
Yes
Suitable Application
For low pressure domestic meter applications.
