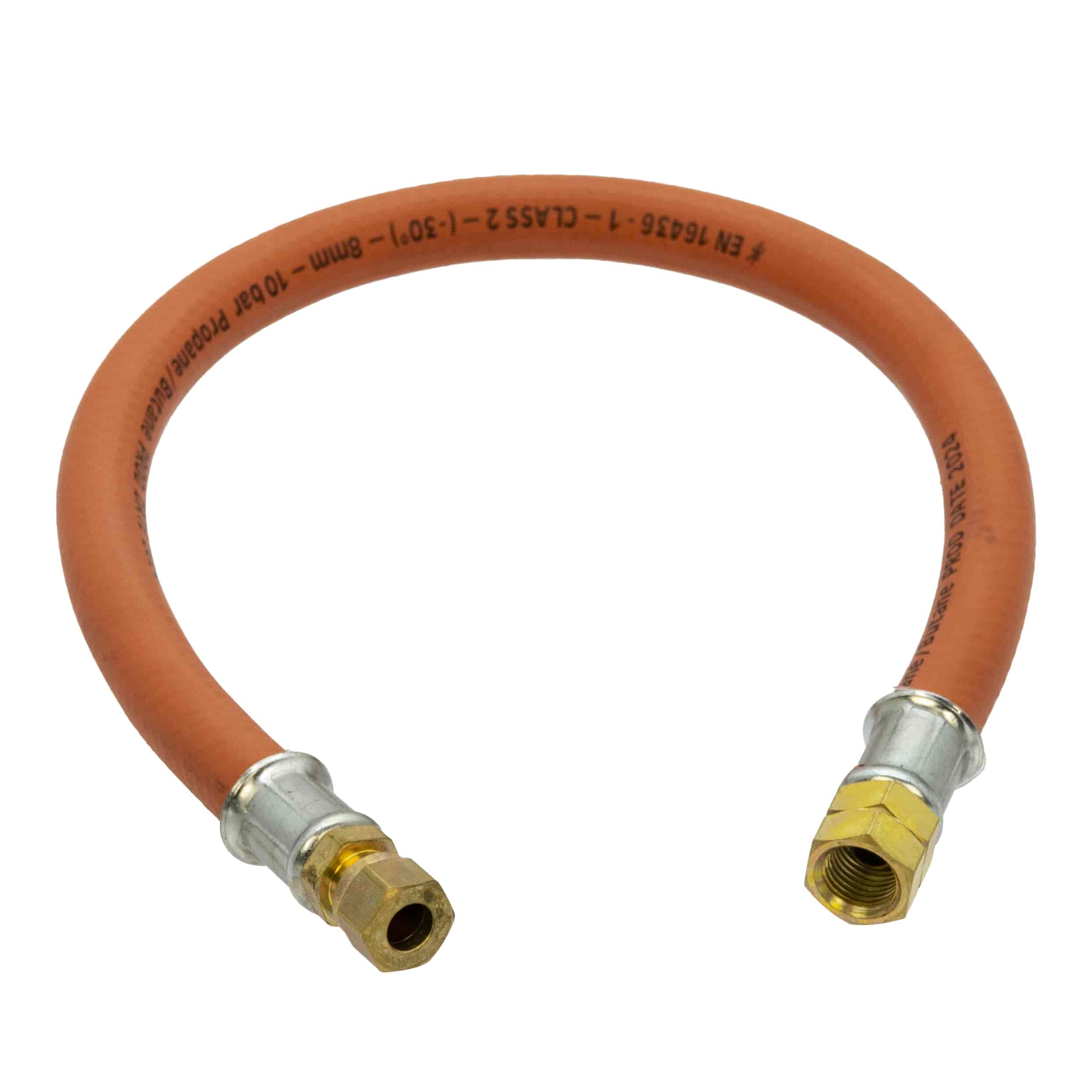

LPG High Pressure Gas Hose – 8mm Compression × 1/4" LH BSP Female | 450mm | EN 16436-1 Class 3
High-pressure LPG gas hose with 8mm compression nut and olive at one end and 1/4" left-hand BSP female at the other. 450mm length, 8mm internal diameter. Orange. 10 bar maximum working pressure / 52 bar burst pressure. EN 16436-1 Class 3. Propane and butane. Hamilton Gas Products.
This hose is the compression nut and olive equivalent of the 8mm standpipe × 1/4" LH female version — same length, diameter and standard, but with a compression fitting (nut and olive) rather than a fixed standpipe on the copper end. The compression fitting allows the hose to be connected to 8mm copper pipe using the supplied nut and olive, without the need for a separate standpipe fitting. The 1/4" LH BSP female on the other end connects to left-hand threaded LPG appliance or regulator inlets in the standard way.
Key Features & Benefits
8mm Compression Nut & Olive - One End - Connects directly to 8mm copper pipe via the supplied nut and olive — no separate standpipe fitting required.
1/4" LH BSP Female - Other End - Standard left-hand thread for LPG appliance and regulator connections.
450mm Length
8mm Internal Diameter
10 Bar Maximum Working Pressure / 52 Bar Burst Pressure
EN 16436-1 Class 3 Compliant
Orange Colour - Standard LPG hose identification.
Propane and Butane Compatible
Ideal For
Connecting 8mm copper pipe to 1/4" LH threaded LPG appliances and regulators
Caravan and motorhome LPG appliance connections
Marine LPG installations
Commercial and industrial LPG system connections
Give your LPG system an upgrade today -order this high-pressure LPG gas hose now for dependable, long term performance.
Specification
LPG High Pressure Gas Hose - 8mm Comp x 1/4" LH FM - 450mm Specification
Brand
Hamilton Gas Products
Connection A
8mm compression nut & olive
Connection B
1/4" LH BSP female
Length
450mm
Internal Diameter
8mm
Max Working Pressure
10 bar
Burst Pressure
52 bar
Gas Type
LPG – propane and butane
Colour
Orange
Standard
EN 16436-1 Class 3
Suitable Applications
Residential, marine, commercial & industrial LPG systems
Features
LPG High Pressure Gas Hose - 8mm Comp x 1/4" LH FM - 450mm Features
8mm Compression Nut & Olive — One End - Connects directly to 8mm copper pipe via the supplied nut and olive - no separate standpipe fitting required.
1/4" LH BSP Female - Other End - Standard left-hand thread for LPG appliance and regulator connections.
450mm Length
8mm Internal Diameter
10 Bar Maximum Working Pressure / 52 Bar Burst Pressure
EN 16436-1 Class 3 Compliant
Orange Colour - Standard LPG hose identification.
Propane and Butane Compatible
