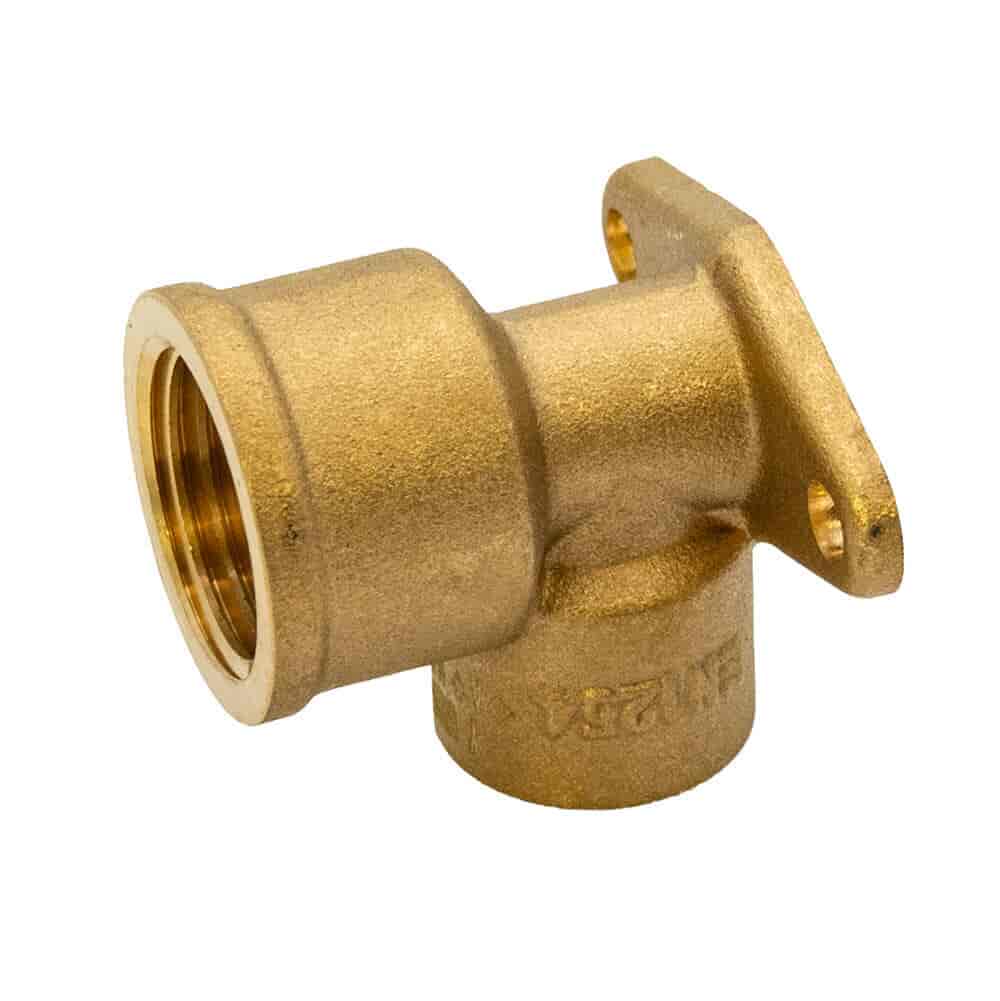

Solder Ring Wall Plate Elbow – 15mm x 1/2" BSP Female
The Solder Ring Female Iron Wall Plate Elbow – 15mm x 1/2" BSP Female is a top quality plumbing fitting for secure wall mounted pipe connections. Made from copper and yellow brass, this WRAS approved elbow is for drinking water, sanitary systems, heating and chilled water installations.
With a built in solder ring the fitting provides a quick and reliable joint with no measurement guesswork — just heat to activate the solder for a neat and secure seal. Ideal for mounting tap connections or pipe take-offs to a fixed surface this fixture will give long life in domestic and commercial environments.
Fully compliant with EN 1254 & BS 864 it’s all about quality, safety and peace of mind. Whether you’re plumbing a new bathroom or upgrading pipework this high performance elbow gives you the connection you can trust.
Key Features & Benefits
Pre-soldered ring – Quick and secure connection every time
WRAS approved – Safe for drinking water
Strong wall mount – Ideal for tap and fixture support<
Wide system compatibility – Hot/cold water, heating and chilled
Certified safe – EN 1254 & BS 864 compliant
Versatile use – Domestic and commercial applications
Ideal For
Bathroom and kitchen tap outlets
Domestic hot and cold water systems
Commercial plumbing installations
Heating and chilled water circuits
Drinking and sanitary water systems
Why Buy
Reliable wall fixing – Perfect for pipe/tap mounting
Quick installation – Pre-loaded solder speeds work
Safe for potable use – WRAS approved lead free design
Built to last – Tough copper and brass materials
Industry compliant – Meets EN & BS standards
Get a reliable wall mounted pipe fixing. Order your Solder Ring Female Iron Wall Plate Elbow – 15mm x 1/2" BSP Female today for fast professional grade installation.
Specification
Brass Solder Ring Female Iron Wall Plate Elbow - 15mm x 1/2" BSP Specification
Type
Female Iron Wall Plate Elbow
Size
15mm x 1/2" BSP Female
Material
Brass
Approval
WRAS Approved
Standards
EN 1254 / BS 864
Lead-Free Solder
EN 29453 / ISO 9453 compliant
Suitable Applications
Drinking Water, Sanitary, Heating, Chilled, Compressed Air, Gas
Operating Pressure
16 bar @ 0–30°C / 10 bar @ 65°C / 7 bar @ 95°C / 6 bar @ 110°C
Tube Compatibility
Copper EN 1057
Features
Brass Solder Ring Female Iron Wall Plate Elbow - 15mm x 1/2" BSP Features
Pre-soldered ring – Quick & secure connection every time
WRAS approved – Safe for drinking water
Strong wall mount – Ideal for tap & fixture support
