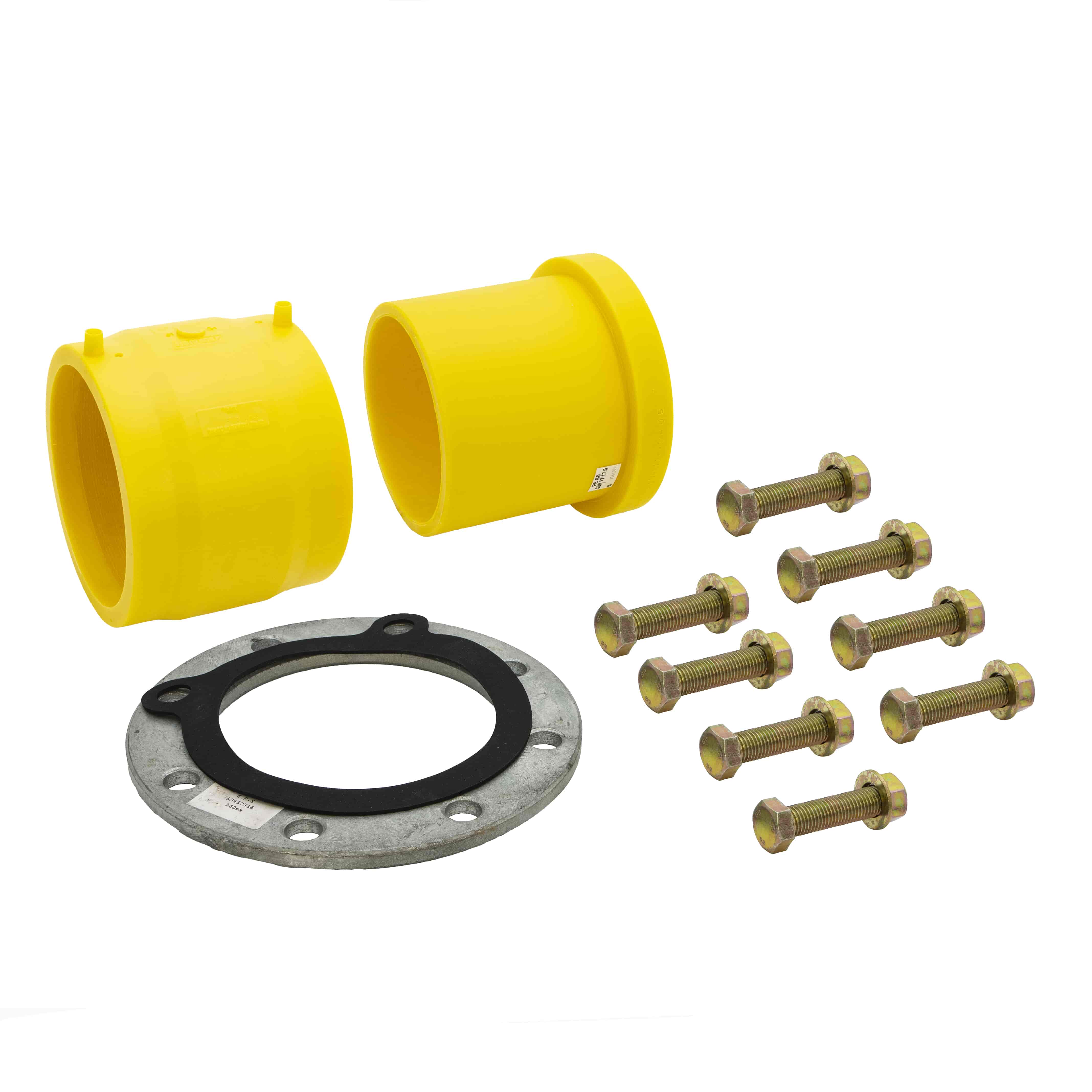

Connecting MDPE gas pipe to a flanged valve or flanged pipework needs a joint that’s as strong as the pipe on one side and bolts up to a standard flange on the other. This stub flange kit does that for 180mm MDPE (PE80) gas pipe: the stub is joined to the pipe by electrofusion, and the flange end connects to a DN150, PN16 flanged valve or pipework.
It’s made in yellow MDPE (PE80) for use with MDPE (PE80) yellow gas pipe, and it’s for natural gas and LPG only. The terminal pins are 4.7mm, so you need an electrofusion control unit with a matching lead. The supplier states it is BSI approved and Kitemarked to GIS/PL2-4 and BS EN 1555, and manufactured by a BS EN ISO 9001 company.
A flanged joint also needs a backing ring, gasket and bolts, so check what’s included with the kit and what needs buying separately. Large-diameter electrofusion needs correct pipe preparation, suitable clamping and a trained installer. Gas work must be carried out by a suitably qualified, registered gas installer in accordance with the relevant standards.
When 180mm MDPE gas pipe has to connect to a flanged valve, this kit gives you a fused joint to the pipe and a DN150 flange on the other end. It’s yellow PE80 to match the pipe, and it comes with a supplier-stated BSI Kitemark.
Order the Electrofusion Stub Flange Kit – 180mm x DN150 online today.
| Product Type | Electrofusion Stub Flange Kit |
|---|---|
| Pipe Size / DN | 180mm x DN150 |
| Material | Medium Density Polyethylene (MDPE), PE80 |
| Colour | Yellow |
| Suitable Pipe | MDPE (PE80) Yellow Gas Pipe |
| Flange Rating | PN16 |
| Terminal Pin Size | 4.7mm |
| Approval (Supplier-Stated) | BSI Kitemarked, GIS/PL2-4 and BS EN 1555 |
| Manufacturing Quality | BS EN ISO 9001 |
| Gas Type | Natural Gas and LPG Only (Installed by a Registered Gas Installer) |
