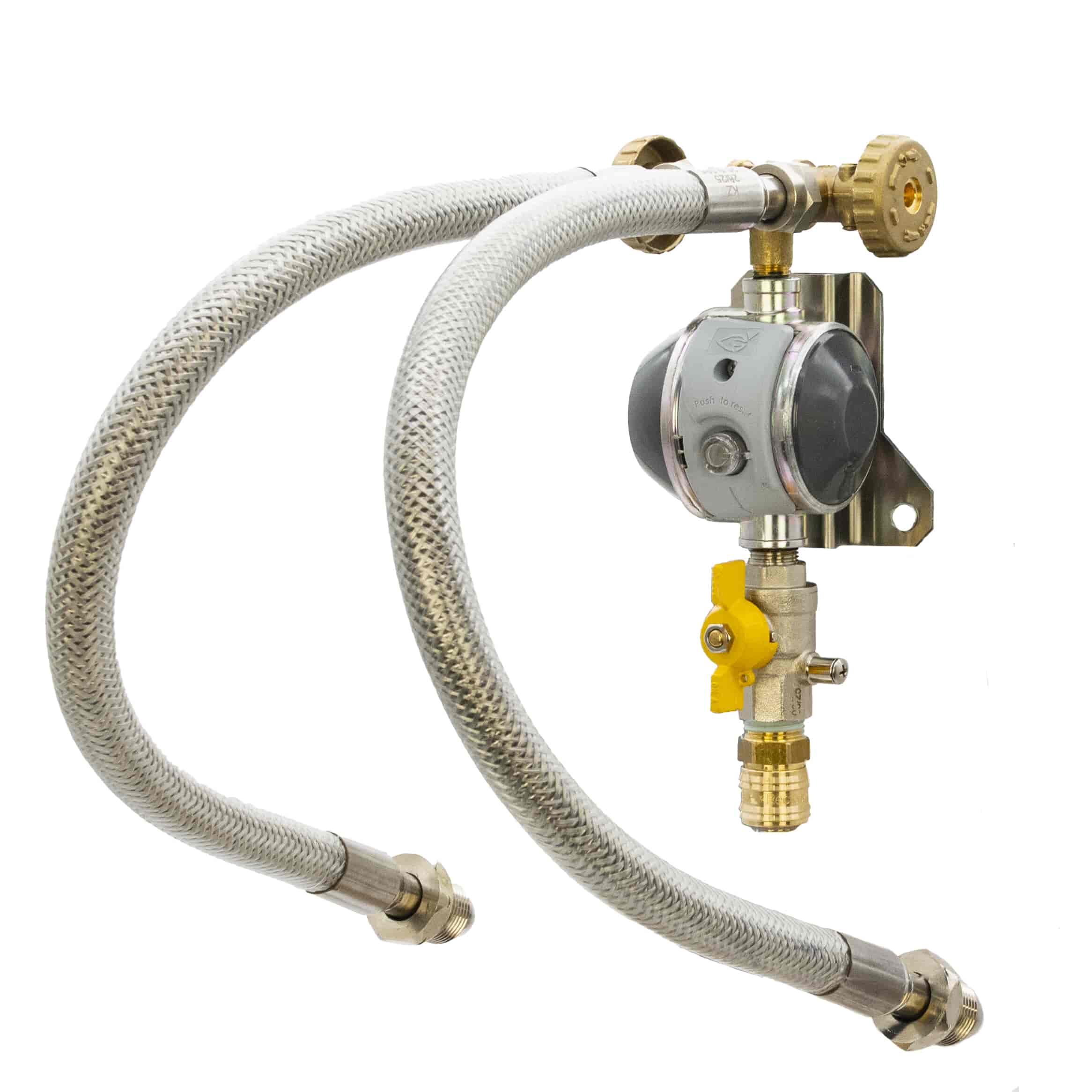

A complete wall-mounted double propane regulator kit that has been designed for use with twin cylinder installations. This is a manual changeover system using OPSO protection when changing from one POL propane cylinder to another. A quick safe female coupling outlet allows you to integrate the Quicksafe Gas Rig. 37 mbar, 4 kg/h. It includes the wall-mounted regulator, 1/2" test point, 2 x POL pigtails, an emergency control plaque and the quick safe female coupling. NCASS recommends this product. It also meets the requirements of Liquid Gas UK CoP 24 Part 3. The product complies with EN 16129. A 2 year warranty applies to this product.
The single CSR485 kit simply enables you to connect one propane cylinder to a Quicksafe Gas Rig. The dual version of the same kit offers the added functionality of manually switching between two propane cylinders connected by the pigtails supplied with this kit. Once the active cylinder runs out of propane, the operator switches to the reserve cylinder while replacing the spent cylinder. Most fixed catering installation layouts require that the regulators are mounted against walls rather than being mounted directly onto the cylinder. The emergency control plaque displays a clear visual identification of the gas isolation point as mandated by Liquid Gas UK CoP 24 Part 3.
Key Features & Benefits
Dual Manual Changeover - Switch between two POL propane cylinders without stopping gas supply.
Wall-Mounted Configuration - Regulator mounts on the wall rather than the cylinder.
Complete Kit - Wall-mounted regulator, 1/2" test point, cylinder pigtails (x2), emergency control plaque, Quicksafe female coupling.
Emergency Control Plaque - Gas isolation labelling as required under Liquid Gas UK CoP 24 Part 3.
Consumer-Resettable OPSO - Closes automatically at 75mbar. Visible trip indicator. Push to reset.
Quicksafe Female Coupling Outlet
NCASS Recommended
Liquid Gas UK CoP 24 Part 3 Compliant
EN 16129 / 37mbar / 4kg/h / 2-Year Warranty
Single vs Dual CSR485
Single (UUCSR485POLXTPC) - One cylinder, cylinder-mounted. Smaller setups.
Dual (UUDBSCSR/FC this product) - Two cylinders, wall-mounted, manual changeover. Larger or continuous-supply installations.
Ideal For
Mobile catering units requiring continuous twin-cylinder supply
