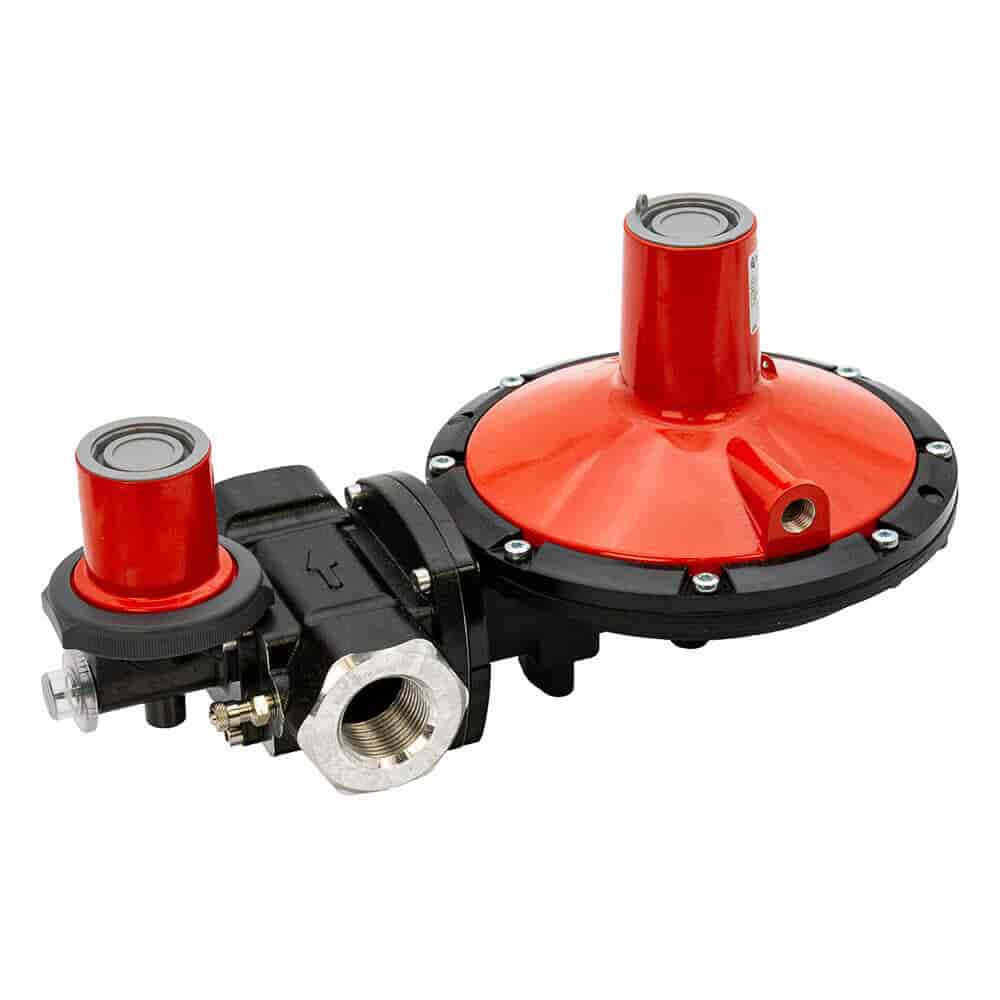

Clesse BP24FC 37mbar OPSO/UPSO LP Propane Regulator -140 kg/hr

Out of stock
SKU
6896CC
£1,191.60 £993.00
Or 3 Interest-Free Payments of £397.20
apple pay
klarna
google pay
paypal
chevron-up
Description

The Clesse BP24FC 37mbar OPSO/UPSO LP Propane Regulator, designed to handle high-capacity needs with an impressive flow rate of up to 140 kg/hr. Ideal for both commercial and large-scale residential applications, this regulator ensures a constant, safe, and efficient gas supply.

  • Superior Pressure Control: Achieve precise pressure management with the regulator's accurate control, maintaining a steady outlet pressure of 37mbar.
  • High Capacity Regulation: The BP24FC model is specifically engineered for high-demand installations, supporting up to 140 kg/h, making it suitable for extensive systems.
  • Advanced Safety Features: Includes an Upstream Over Pressure Shut Off (OPSO) that adds an extra layer of protection, utilizing an external buffer tube for accurate sensing and immediate response.
  • Pressure Relief Valve (LRV): Enhances safety by providing an additional mechanism to relieve excess pressure and prevent system overloads.
  • Versatile Installation: Features a fully rotatable body and vent cover, allowing for installation in orientations that were previously challenging, ensuring flexibility in setup.
  • Streamlined Design: Optimised for efficient use in varied environments, particularly where space might be limited.

The Clesse BP24FC 37mbar OPSO/UPSO Propane Low Pressure Regulator - 140 kg/hr are mainly used in medium to Large Commercial, Industrial and Agricultural applications where they provide the second stage regulation.

Design and performance to BS EN 13785 dependant on the model.

Specification

Clesse BP24FC 37mbar OPSO/UPSO LP Propane Regulator -140 kg/hr Specification

Brand Clesse
Approvals BS EN 16129:2013
Capacity 140 kg/hr
Inlet 1" Bsp Female
Outlet 1.1/4" Bsp Female
Inlet Pressure 0.5 to 4 bar
Operating Pressure 37 mbar
PRV 75 mbar
OPSO Yes (130 mbar)
UPSO Yes (28 mbar)
Pressure Test Point Yes (Upstream & Downstream)
Vent Postion Fixed
Stage Second Stage Low Pressure
Suitable Applications Domestic & Commercial Propane Low Pressure
Warranty 2 Years
Product Type 2nd Stage Propane Tank Regulators



Features

Clesse BP24FC 37mbar OPSO/UPSO LP Propane Regulator -140 kg/hr Features

  • High Capacity Handling: Designed for up to 140 kg/hr, perfect for large-scale residential or commercial installations.
  • Precision Pressure Management: Maintains a constant outlet pressure of 37mbar for accurate and stable control.
  • Advanced Safety Mechanisms: Features an Upstream OPSO for enhanced regulatory protection and a Pressure Relief Valve (LRV) to safely manage excess pressure.
  • Flexible Installation: The fully rotatable body and vent cover allow for installation in previously challenging orientations, providing versatility in setup.
  • Optimised Design: Streamlined for efficiency, making it ideal for use in space-restricted areas without compromising performance.
  • Reliable Performance: Engineered to meet the rigorous demands of high-capacity systems, ensuring long-lasting reliability and safety.
  • Proven Design: Built by Novacomet as part of the Clesse Group, leveraging the proven capabilities of the BP24 diaphragm casing for excellent pressure regulation integrated with a high-capacity security system.
