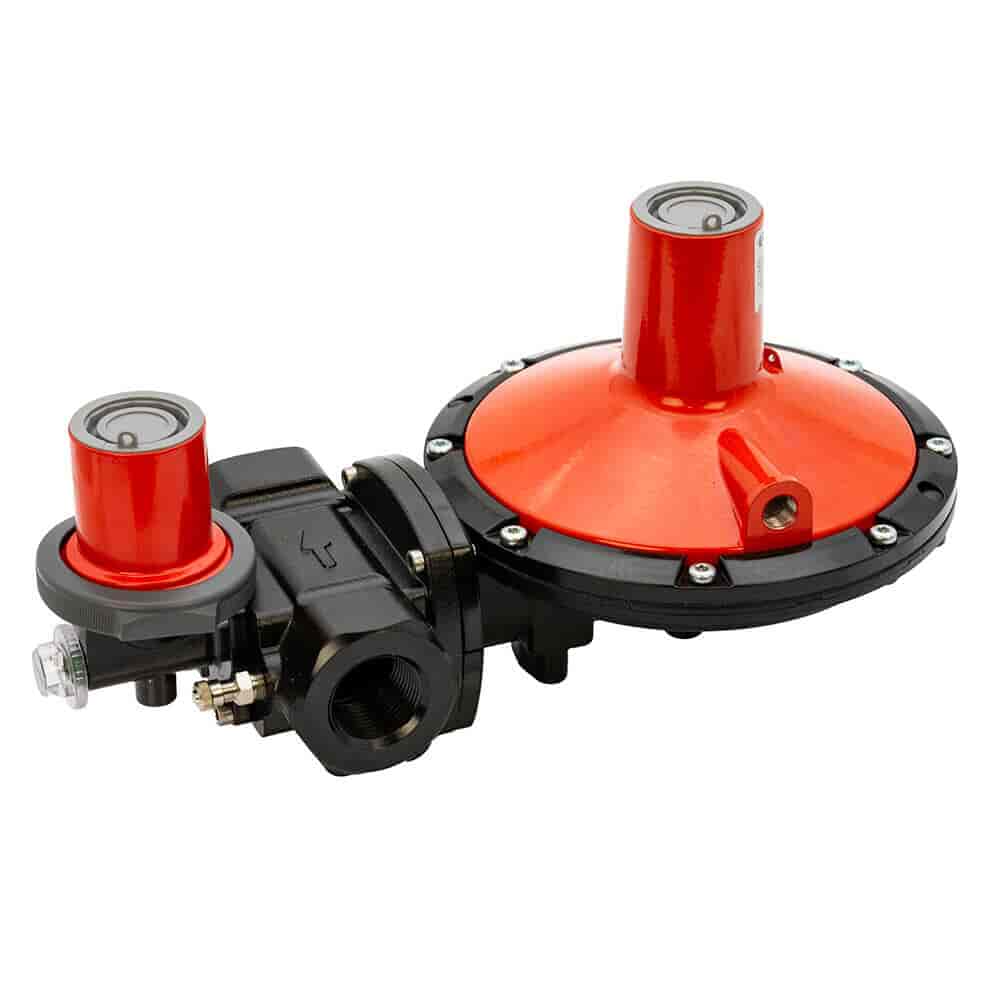

The Clesse BP24F 37mbar 3rd Stage Propane Gas Regulator with UPSO, a precision-engineered solution designed to deliver optimal performance and safety for your propane gas systems. With a flow rate of 25kg/h, this regulator is crafted for those who demand accurate and consistent pressure control in their gas supply.
Precise Pressure Management: Achieves accurate pressure control with inlet pressures ranging from 60-90mbar, ensuring your system runs smoothly under various conditions.
Enhanced Safety Features: Equipped with a Pressure Relief Valve (LRV) set at 75mbar and an Under Pressure Shut Off (UPSO) mechanism set between 27-30mb, offering double protection against pressure variations.
User-Friendly UPSO Design: Features a clear cap for easy reading of the UPSO status and a simple pull tab for hassle-free resetting, enhancing operational convenience and safety.
Consistent Outlet Pressure: Maintains a steady outlet pressure of 37mbar, ideal for a wide range of applications requiring precise gas flow control.
Customisable Capacities: Offers the flexibility of large capacity options upon request, catering to your specific needs and requirements.
Strategic Vent Positioning: The vent is strategically placed over the inlet at the 6(h) 'o' clock position, optimising safety and performance by effectively managing gas venting.
The Clesse BP24FC 37mbar 25kg/hr Propane 3rd Stage Gas Regulator with UPSO are designed to reduce transmission pressure from the 1st and 2nd stage regulation equipment to a usable gas pressure for domestic to large commercial, industrial and agricultural applications. Gas is reduced down to a pressure of 37mbar.
Design and performance to BS EN 13785.
Specification
Clesse BP24F 37mbar 3rd Stage Propane Gas Regulator with UPSO - 25kg/h Specification
Brand
Clesse
Approvals
BS EN 13785
Capacity
25 kg/hr
Inlet
1.1/4" Bsp Female
Outlet
1.1/4" Bsp Female
Inlet Pressure
75 (60-90) mbar
Operating Pressure
37 mbar
PRV
75 mbar
OPSO
Yes (130 mbar)
UPSO
Yes (27-30 mbar)
Pressure Test Point
Yes (Upstream & Downstream)
Vent Postion
Fixed
Stage
Third Stage Low Pressure
Suitable Applications
Domestic & Commercial Propane Low Pressure
Warranty
2 Years
Features
Clesse BP24F 37mbar 3rd Stage Propane Gas Regulator with UPSO - 25kg/h Features
Accurate Pressure Regulation: Delivers consistent pressure control with inlet pressures from 60-90mbar, optimising system performance.
Dual Safety Mechanisms: Features a Pressure Relief Valve (LRV) set at 75mbar and an Under Pressure Shut Off (UPSO) mechanism set at 27-30mb, enhancing system safety.
Clear UPSO Monitoring: Equipped with a transparent cap for easy UPSO status reading and a simple pull tab for quick resetting, ensuring user-friendly operation.
Steady Outlet Pressure: Maintains a constant outlet pressure of 37mbar, suitable for various applications requiring precise gas flow.
Customisable Options: Offers availability of larger capacities upon request to meet specific system requirements and demands.
Optimised Vent Placement: Strategically places the vent over the inlet at the 6(h) 'o' clock position for effective venting and enhanced safety.
Versatile Application: Ideal for a wide range of settings, from residential to industrial, where accurate and safe gas regulation is critical.
Trusted Brand Quality: From Clesse, a leader in gas control technology, ensuring reliability, durability, and performance in propane gas regulation.
