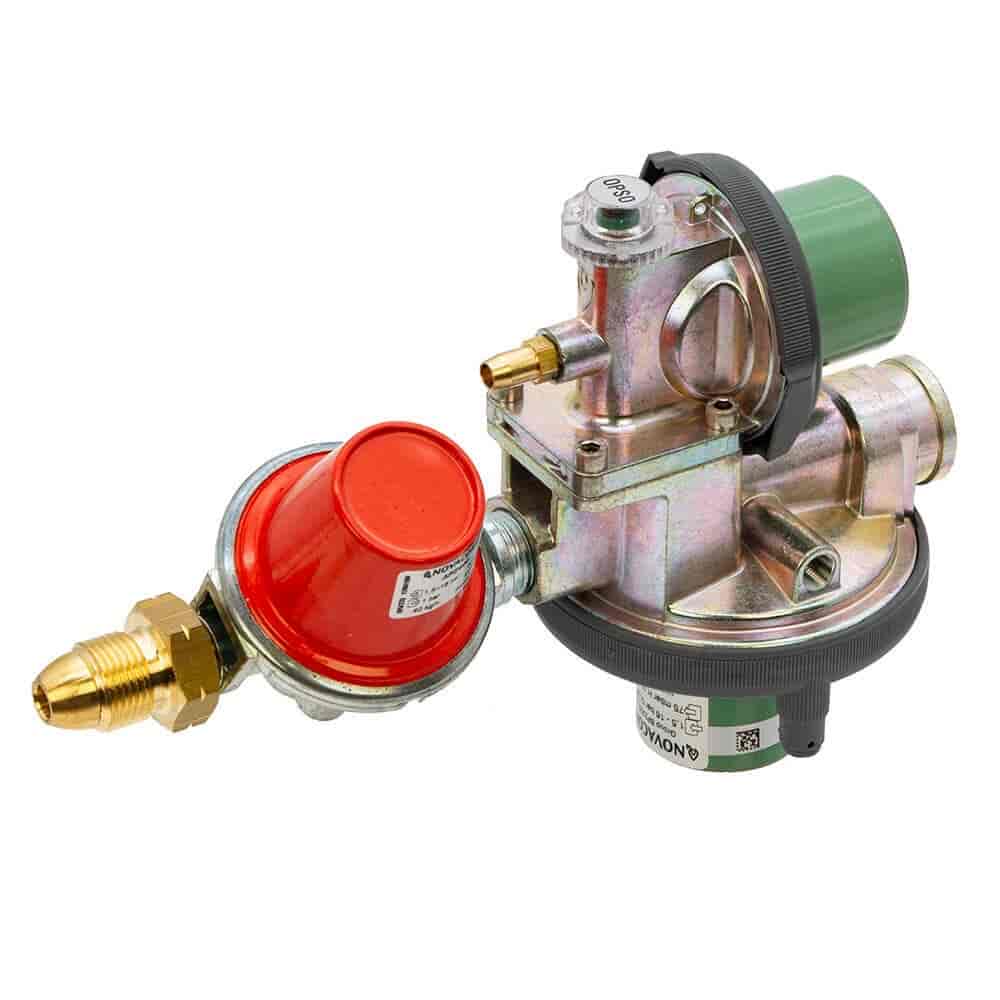

Clesse APZ400 & BP2203 Close Coupled 1st & 2nd Stage Regulator OPSO/UPSO 37mbar is mainly used on bulk tank Domestic applications, where it provides the 1st and 2nd stage combined regulation from tank pressure to 37mbar, incorporating relief valve, UPSO, and OPSO.
| Type | Clesse 1st & 2nd Stage Close Coupled |
|---|---|
| Capacity kg/h | 10.5kg/hr |
| Outlet Pressure | 37mbar |
| Inlet Pressure (2nd Stage) | 1.5-16 bar (0.45-2 bar) |
| OPSO | Yes |
| UPSO | Yes |
| OPSO Set Pressure | 100 mbar |
| Design Standard | BS EN16129 |
| PRV | Yes |
| Inlet | Pol (American) |
| Outlet | 3/4" Bsp female |
| Product Type | 1st & 2nd Stage Propane Tank Regulators |
Integrated Dual-Stage Regulation: The APZ400 & BP2203 offers a seamless combination of first and second stage regulation in one unit, delivering consistent output pressure even under varying supply conditions.
OPSO/UPSO Functionality: This regulator is equipped with a 37mbar Over Pressure and Under Pressure Shut Off (OPSO/UPSO) system, ensuring maximum safety by automatically shutting off gas flow if pressure deviates beyond the safe threshold.
High Performance & Reliability: Designed to handle substantial flow rates with minimal pressure loss, it offers efficiency and reliability across a broad spectrum of demands.
Robust Build Quality: Constructed with premium materials, the Clesse APZ400 & BP2203 is designed to endure challenging environments, guaranteeing durability and consistent performance.
Simplified Installation: Its compact, close-coupled design not only saves space but also simplifies the installation process, making it a convenient addition to your gas system.
Versatile Applications: Ideal for a range of settings, including residential heating systems, commercial kitchens, and industrial processes requiring accurate gas pressure management.
Compliance and Standards: Adheres to rigorous industry standards, ensuring broad compatibility and safety across various operational contexts.
