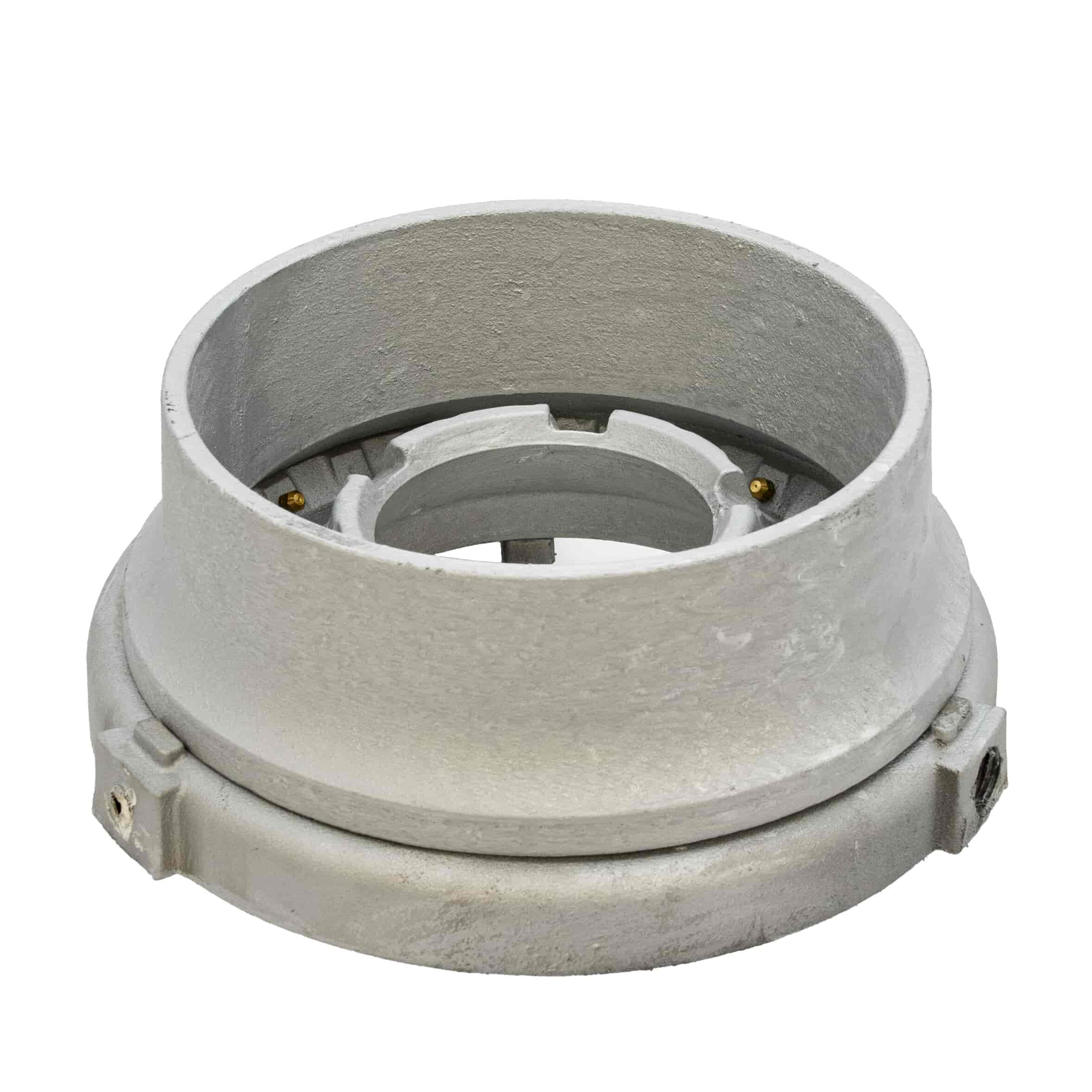

CF12 Jet Chinese Wok Gas Cooker Burner – Natural Gas | 82,800 BTU/h | 12 Inward-Pointing Jets | Centre Fire
Twelve-jet centre fire LPG burner for Chinese cookers, woks, barbecues, kebabs and stock pots. Twelve brass jets pointing inward - up to 82,800 BTU/h at low natural gas pressures. Removable cast iron tube, 50% turndown, protective burner ring. Side inlet 1/2" BSP female. 8¼" (210mm) tube. Hamilton Gas Products.
The CF12 operates on the same centre fire principle as the CF9 - brass jets pointing inward to produce a hot, dense, concentrated flame - but with twelve jets rather than nine. The additional jets increase the combustion surface area and change the flame character slightly - the CF12 is preferred by some chefs for the heat distribution pattern it creates over larger wok bases. Both models have identical dimensions and the same 1/2" BSP female side inlet.
The cast iron tube is removable for cleaning. The protective burner ring prevents food spillage from reaching the jets, and individual jets are replaceable without removing the burner from the appliance. 50% turndown ratio for control from maximum output down to low simmer.
Key Features & Benefits
Twelve Inward-Pointing Brass Jets - Centre fire combustion for intense, dense wok heat. More jets than the CF9 - slightly different flame character.
Up to 82,800 BTU/h
50% Turndown Ratio - From maximum searing heat to low simmer.
Removable Cast Iron Tube - Easy cleaning without removing the burner from the range.
Commercial kitchens requiring high-intensity Natural Gas burners
Barbecue, kebab and stock pot cooking
Chefs preferring the CF12 twelve-jet flame pattern
Upgrade your cooking with the CF12 Twelve Jet Natural Gas Gas Burner – high-power, high-heat for Asian cooking and commercial catering. Add to basket now for fast UK & Ireland delivery.
Specification
CF12 Jet Chinese Wok Gas Cooker Burner - Natural Gas Specification
Brand
Hamilton Gas Products
Product Type
CF12 Centre Fire Twelve-Jet Natural Gas Burner
Number of Jets
12 – inward-pointing brass jets
Maximum Output
82,800 BTU/h
Turndown Ratio
50%
Gas Type/Pressure
Natural Gas - 21mbar
Gas Connection
Side inlet 1/2" BSP female
Tube Length
8¼" (210mm)
Burner Depth
2"
Tube Material
Cast iron (removable)
Jets
Brass – individually replaceable
Ducting Required
No
Suitable Applications
Chinese cookers, woks, barbecues, stock pots, kebabs
Features
CF12 Jet Chinese Wok Gas Cooker Burner - Natural Gas Features
Twelve Inward-Pointing Brass Jets - Centre fire combustion for intense, dense wok heat. More jets than the CF9 - slightly different flame character.
Up to 82,800 BTU/h
50% Turndown Ratio - From maximum searing heat to low simmer.
Removable Cast Iron Tube - Easy cleaning without removing the burner from the range.
