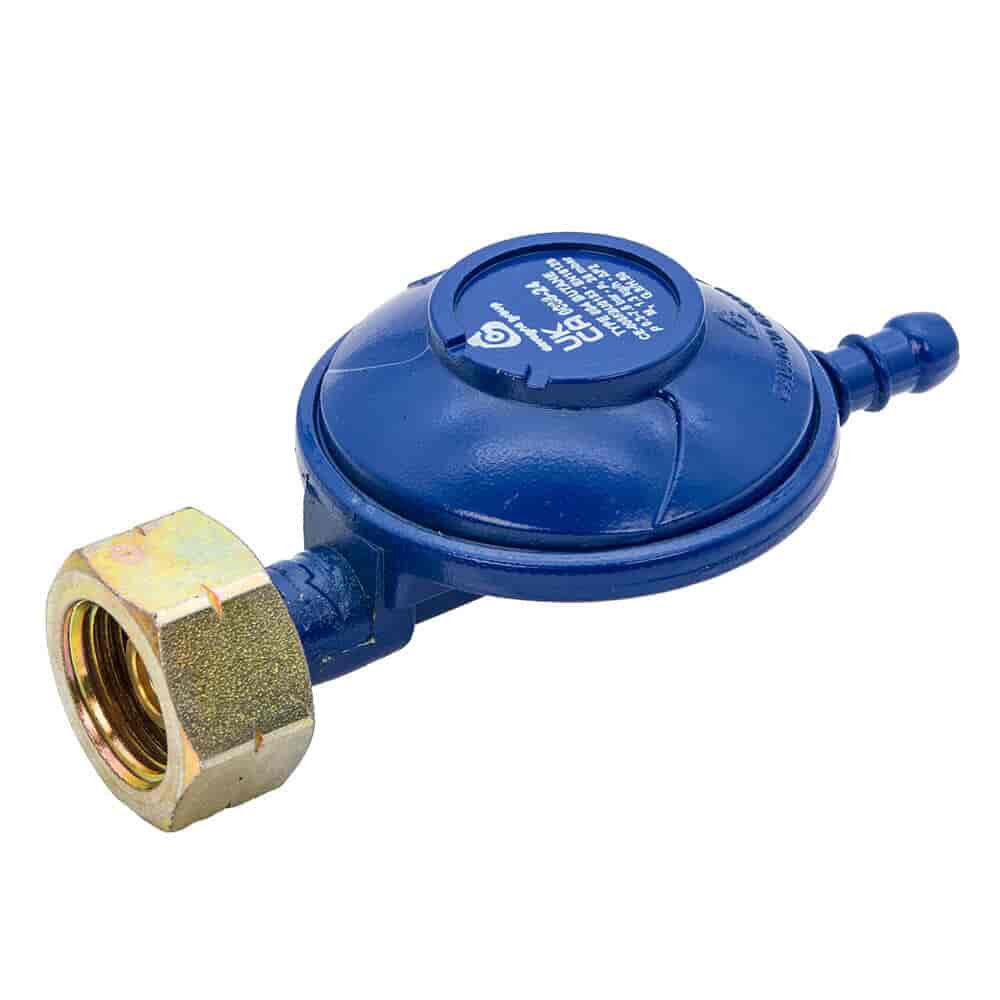

Cavagna 28mbar Butane Gas Regulator – Calor 4.5kg Cylinder (HA343)

A Calor 4.5kg butane cylinder needs a regulator with the right screw-on connection. The Cavagna 28mbar Butane Gas Regulator is a single-stage low pressure regulator with a butane nut inlet for Calor Gas 4.5kg butane cylinders. It supplies butane at 28mbar through an 8mm (5/16") bore hose nozzle, at a capacity of 1.3 kg/h.

It suits gas heaters, BBQs, patio heaters, camping stoves and lanterns that run on 28mbar butane, including set-ups in caravans and motorhomes. It has a reinforced diaphragm, CE 0085-21 and EN 16129 approvals, and a 5-year warranty.

The inlet is a left-hand thread nut and needs a spanner. Close the cylinder valve before you fit or remove the regulator, and tighten the nut firmly without over-tightening it. This regulator is for Calor Gas 4.5kg butane cylinders only. It is not for Calor 7kg and 15kg butane cylinders, which use a clip-on fitting, and it is for butane only. Check your appliance data plate to confirm it needs 28mbar butane. Secure the hose to the nozzle with a suitable clip and leak test every connection before use. Fixed gas installations and appliance connections must be carried out by a registered gas installer.

Key Features & Benefits
  • Calor 4.5kg Butane Fit: A butane nut screw-on inlet for Calor Gas 4.5kg butane cylinders.
  • 28mbar Butane Pressure: The low pressure that butane appliances are normally designed to run on.
  • 1.3 kg/h Capacity: Suits a single heater, BBQ or stove within that flow rate.
  • 8mm (5/16") Hose Nozzle: Takes 8mm bore gas hose.
  • Single-Stage Design: A simple low pressure regulator for butane.
  • Reinforced Diaphragm
  • EN 16129 and CE 0085-21
  • 5-Year Warranty
Ideal For
  • Connecting a Calor 4.5kg butane cylinder to a camping stove or cooker.
  • Replacing a worn or damaged screw-on butane regulator.
  • Patio heaters, BBQs and gas heaters that specify butane at 28mbar.
  • Lanterns and caravan or motorhome appliances that run on 28mbar butane.
Why Buy This Product?

If you run a 28mbar butane appliance from a Calor 4.5kg butane cylinder, this regulator gives you the correct screw-on butane nut inlet, an 8mm hose nozzle and a 5-year warranty. Not sure whether your cylinder needs a screw-on or clip-on regulator? Contact our team before you order.

Order the Cavagna 28mbar Butane Gas Regulator – Calor 4.5kg Cylinder online today.

Specification

Cavagna 28mbar Butane Gas Regulator - Calor 4.5Kg Cylinder Specification

Brand Cavagna
Product Code HA343
Product Type Low Pressure Butane Gas Regulator
Gas Type Butane Only
Approvals CE 0085-21 & EN 16129
Connection Butane Nut x Hose Nozzle
Operating Pressure 28mbar
Capacity/Flow Rate 1.3 kg/h
Inlet Connection Butane Nut (W21.8 Left-Hand Thread)
Outlet Connection 8mm (5/16") Bore Hose Nozzle
Stage Single Stage Low Pressure Butane
Reinforced Diaphragm Yes
Suitable Applications Gas Heaters, BBQs, Patio Heaters & Camping Stoves
Compatible Cylinders Calor Gas 4.5kg Butane
Warranty 5 Years
Features

Cavagna 28mbar Butane Gas Regulator - Calor 4.5Kg Cylinder Features

  • Calor 4.5kg Butane Fit: A butane nut screw-on inlet for Calor Gas 4.5kg butane cylinders.
  • 28mbar Butane Pressure: The low pressure that butane appliances are normally designed to run on.
  • 1.3 kg/h Capacity: Suits a single heater, BBQ or stove within that flow rate.
  • 8mm (5/16") Hose Nozzle: Takes 8mm bore gas hose.
  • Single-Stage Design: A simple low pressure regulator for butane.
  • Reinforced Diaphragm
  • EN 16129 and CE 0085-21
  • 5-Year Warranty
