Quicksafe 2-Cylinder Auto Changeover Gas Rig – Mobile Catering | 34kW | NCASS | Liquid Gas UK CoP 24 Part 3

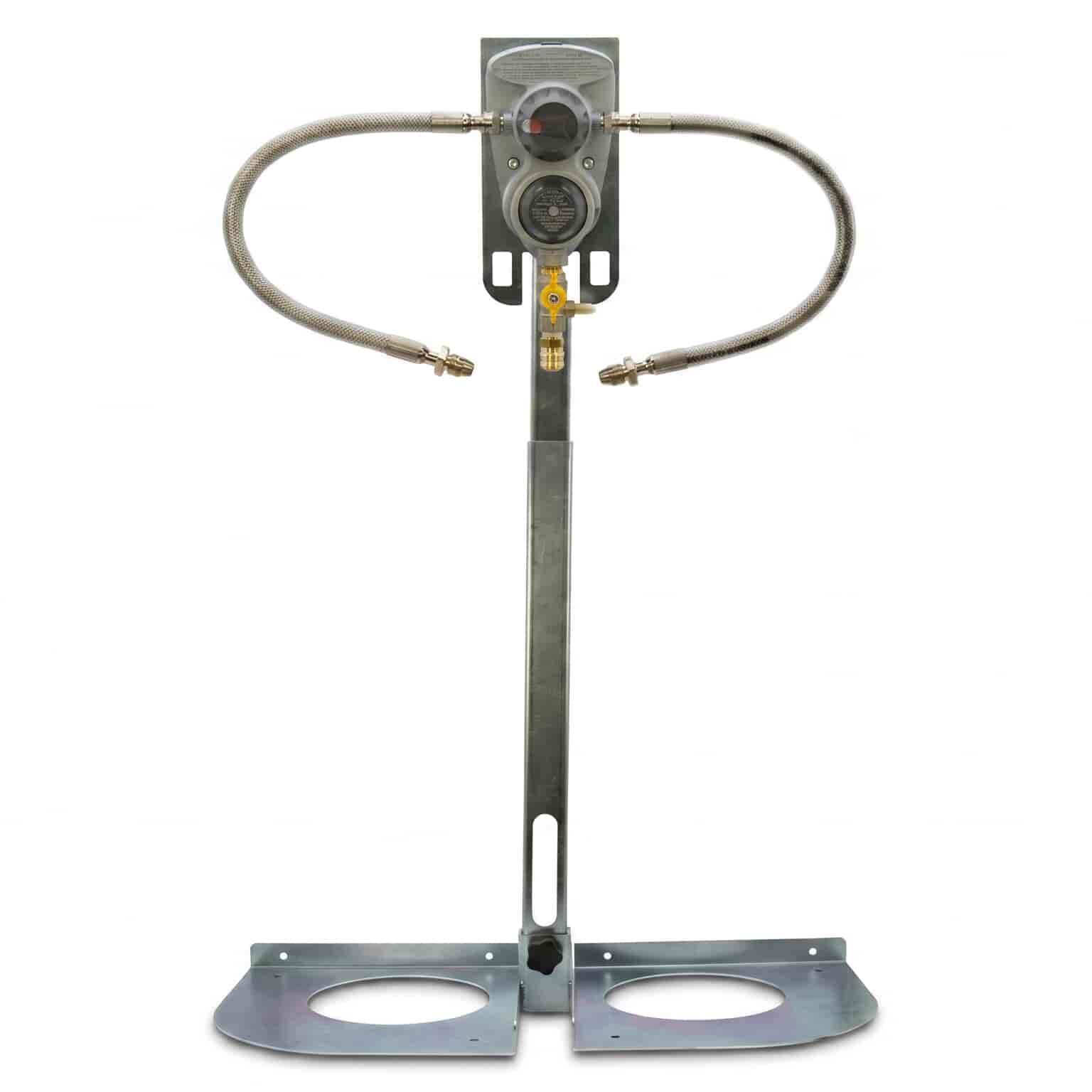

A complete mobile catering LPG gas rig that offers an Automatic Changeover between two Cylinders. This product features Clesse's TR800 Auto-Changeover Regulator with OPSO, an adjustable cylinder stand (for both 19kg and 47kg Cylinders) which comes with two adjustable height settings; quick release snap on fittings; test adapt kit; pigtails; emergency control plaque; OPSO sealing wire; and leak detection fluid. A maximum Supply Capacity of up to 34kW is available. NCASS approved. Conforms to Liquid Gas UK Codes of practice 24 part 3. The stand, regulator and hose assemblies are covered under a 2 year warranty. Note the Quicksafe gas hose assemblies will need to be purchased separately.
All gas installations must be commissioned by a gas safe registered engineer. The Quicksafe Gas Rig is the only NCASS-approved pre-designed pipework system for mobile and static catering LPG installations. The Quicksafe Gas Rig also provides a full-compliant Liquid Gas UK code of practice 24 part 3 gas supply assembly within a single portable unit — i.e., all components including cylinder stand, automatic changeover regulator, test points, snap-on appliance connectors and emergency labelling are provided.
The Auto Changeover feature allows the operator to switch over from the active cylinder to the reserve cylinder when the active cylinder becomes exhausted — this is achieved without any interruption of gas flow to appliances. Once the reserve cylinder has been replaced with a new cylinder the operative simply resets the auto changeover function.
The Clesse TR800 Automatic Changeover regulator also contains OPSO — if the down-stream pressure exceeds the safe limit then the OPSO will close. The Adjustable Stand accommodates both 19kg and 47kg Cylinders and has Two height adjustments — no tools are required to assemble the stand.
Quick-release snap-on fittings are used on the Quicksafe Gas Rig allowing for easy connection and disconnection of appliances at the end of each service. The gas hose from the rig to appliance(s) must be purchased separately and should be chosen based on appliance inlet size and/or length of hose.
Key Features & Benefits
Automatic Changeover - No Service Interruption - TR800 automatically switches to the reserve cylinder when the active one empties.
OPSO Protection - Clesse TR800 includes consumer-resettable OPSO. OPSO sealing wire included for tamper evidence.
Up to 34kW Supply Capacity - Adequate for typical mobile catering multi-appliance setups.
Adjustable Stand - 19kg and 47kg Cylinders - Two height settings, tool-free assembly. Lightweight and portable.
Quicksafe Snap-On Fittings - Tool-free gas connection and disconnection to appliances.
Complete Compliance Kit - Emergency control plaque, test point and sealing wire included - everything needed for a CoP 24 Part 3 compliant installation (excluding gas hose).
NCASS Recommended - The Nationwide Caterers Association recommended system for mobile catering LPG.
Liquid Gas UK CoP 24 Part 3 Compliant
2-Year Warranty - Stand, regulator and hose assemblies.
Ideal For
Mobile catering units - food vans, trailers and market stalls
Event catering and outdoor food festivals
Static catering installations requiring CoP 24 Part 3 compliance
NCASS member caterers
Holiday homes, park homes and inland waterways LPG supply
Kit Contents
Dual height portable cylinder stand (H 133cm x W 86cm x D 41cm)
Clesse TR800 Automatic Changeover Regulator with OPSO
High-pressure stainless steel hoses (cylinder to regulator)
Test adapt kit with ball valve
Snap connection coupler (Quicksafe quick-release)
Plastic protective end cap
Emergency control plaque
OPSO sealing wire
Cam strap for cylinder stand
Leak detection fluid
Gas hose (rig to appliances): NOT included — sold separately
NCASS-recommended Auto Changeover LPG Quicksafe Gas Rig for mobile catering — everything included except the gas hose. Order today. Gas hose sold separately. Gas Safe registered engineer commissioning required.
Specification
Quicksafe 2-Cylinder Auto Changeover Gas Rig for Mobile Catering - 34kW Specification
Brand
Quicksafe
Product Type
2-Cylinder Auto Changeover Mobile LPG Gas Rig
Regulator
Clesse TR800 Automatic Changeover with OPSO
Max Supply Capacity
34 kW
Compliance
Liquid Gas UK CoP 24 Part 3 / NCASS recommended
Cylinder Compatibility
19kg and 47kg propane cylinders
Stand Dimensions
H 133cm x W 86cm x D 41cm
Stand Assembly
Tool-free – two height settings
Gas Connection
Quicksafe quick-release snap-on fittings
Test Point
Test adapt kit with ball valve included
Gas Hose
Not included – sold separately
Warranty
2 years (stand, regulator & hose assemblies)
Features
Quicksafe 2-Cylinder Auto Changeover Gas Rig for Mobile Catering - 34kW Features
Automatic Changeover - No Service Interruption - TR800 automatically switches to the reserve cylinder when the active one empties.
OPSO Protection - Clesse TR800 includes consumer-resettable OPSO. OPSO sealing wire included for tamper evidence.
Up to 34kW Supply Capacity - Adequate for typical mobile catering multi-appliance setups.
Adjustable Stand - 19kg and 47kg Cylinders - Two height settings, tool-free assembly. Lightweight and portable.
Quicksafe Snap-On Fittings - Tool-free gas connection and disconnection to appliances.
Complete Compliance Kit - Emergency control plaque, test point and sealing wire included - everything needed for a CoP 24 Part 3 compliant installation (excluding gas hose).
NCASS Recommended - The Nationwide Caterers Association recommended system for mobile catering LPG.
Liquid Gas UK CoP 24 Part 3 Compliant
2-Year Warranty - Stand, regulator and hose assemblies.
