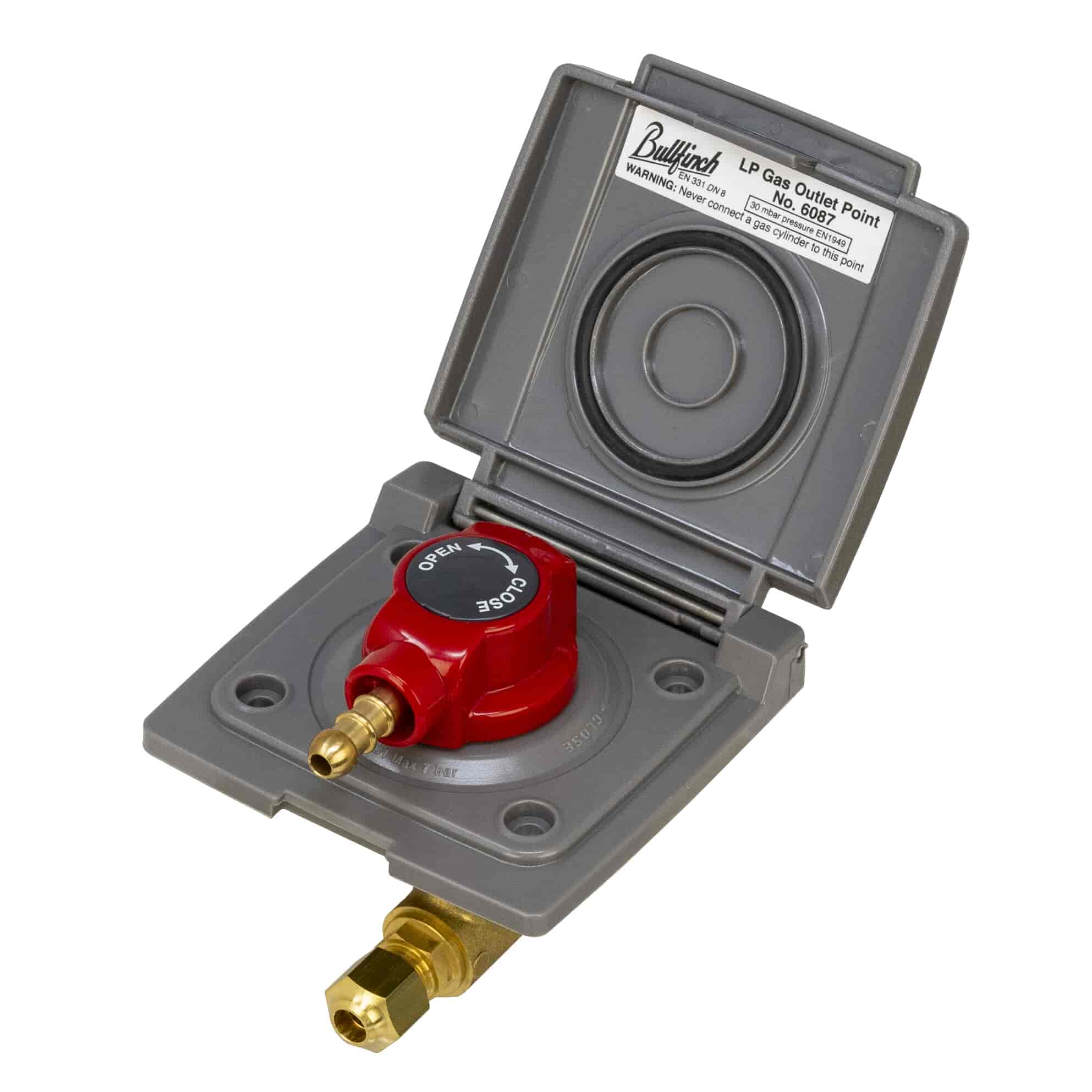

Ideal for supplying barbecues, cooking appliances, patio heaters and other appliances for LPG from the caravans existing gas supply. It comes complete with a Plug-in Tail connector for connecting onto the hose from the appliance. Inserting the gas fitting and turning, locks it in place and allows the gas to flow.
Specification
Bullfinch Caravan Gas BBQ Point - Grey Specification
Working pressure – 7 bar (max)
Conforms to BS EN 331 and BS EN 1949 and made under a certified ISO9001 system
Corrosion-resistant materials, LPG compatible
Plastic parts made of high quality materials with long-term UV resistance
Total sealing between device and wall of prefabricated structure
Plastic unit and cap - Polycarbonate reinforced with glass fibre
Lever handle - ABS (Acrylonitrile Butadiene Styrene) – UV stable
Hinges, springs and screws - stainless steel
Rubber gaskets - NBR conforming to EN549 standard
Wall gaskets and cap gaskets – UV, ozone resistant EPDM
Ball valve seals: - PTFE
Features
Bullfinch Caravan Gas BBQ Point - Grey Features
Complete with plug in tail connector and fixing screws
Good security - no connector, no flow
Push and turn activation
Innovative, attractive design
High quality for a long reliable life
Compact
Lightweight
Easy to fit - requires 60mm cutter
Well styled
High flow rate
The Gas point comes complete with a Plug in tail connector for connecting onto the hose from the appliance. Inserting the tail connector and turning, locks it in place and allows the gas to flow.
The Gas Point comes complete with fitting instructions. It should be installed by a competent Gas Safe (was CORGI) registered installer.
It is also supplied with 4 fixing screws.
You will need a 60mm cutter to create orifice.
The metal pipe for the gas inlet needs to be 8mm.
The hose for the Plug in tail connector needs to be 8mm bore LPG hose - our number HA132. You will also need suitable hose clips our number HA819.
