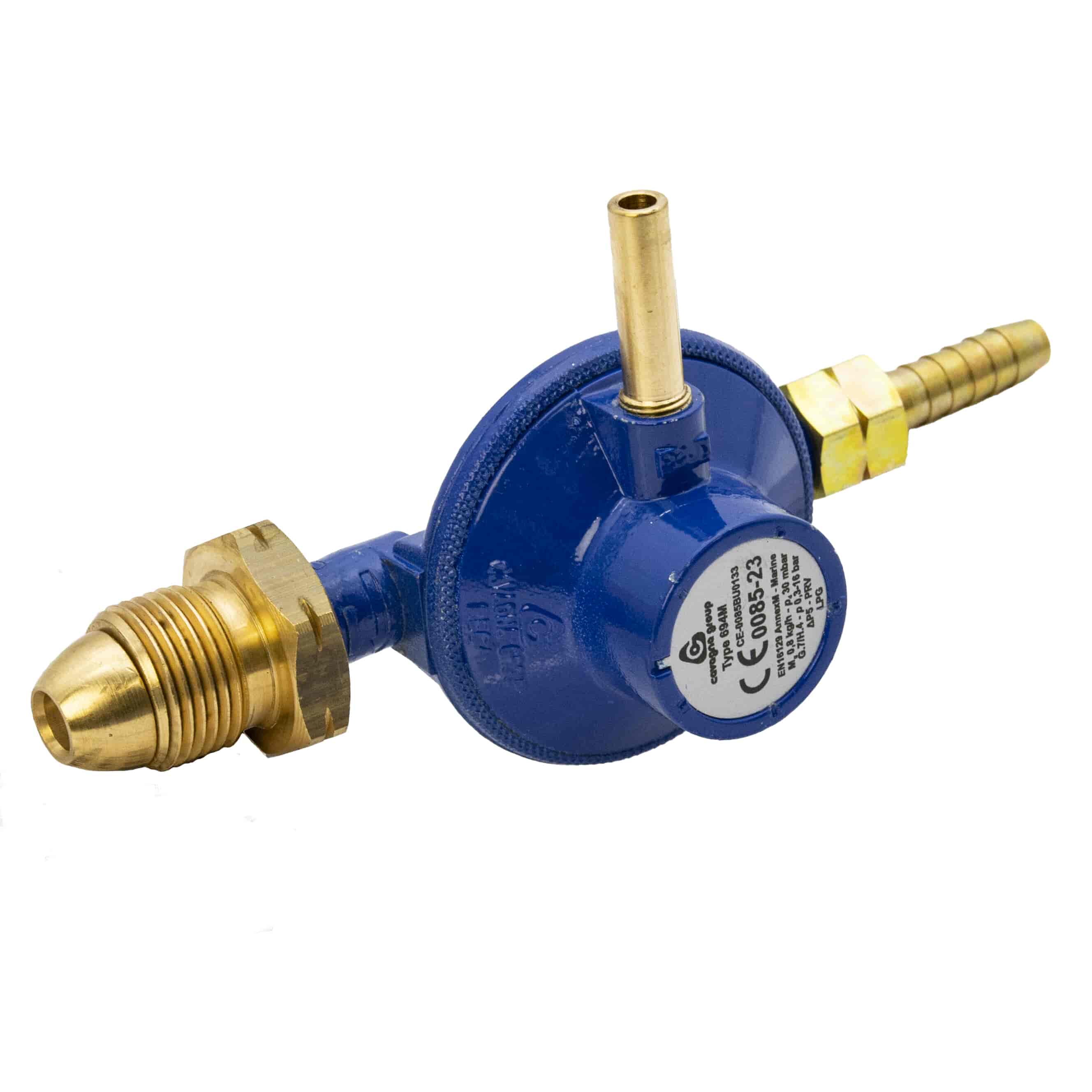

Cavagna Marine Single Stage Propane Regulator – 30mbar | BS EN 16129 Annex M | POL
Thie Cavagna Marine Single Stage Propane Regulator complies fully with BS EN 16129 Annex M (the marine-specific part of the European LPG Regulator standard). This means that it will meet the requirements of almost all marine insurance companies who insist on compliance to ensure their policyholders have approved installations.
It is made to be able to withstand salt water spray, corrosion and other harsh effects associated with coastal and off-shore areas. It also has reinforced diaphragms and a 75mbar overpressure relief valve which provide added protection on installations when you may need something stronger than a standard home regulator.
A POL screw in inlet allows you to connect your Calor UK propane cylinders ranging from 3.9kg up to 47kg. A 1/4"LH male outlet is provided to accept the 8mm hose nozzle supplied so that you can directly connect a piece of 8mm bore rubber or stainless steel LPG hose to the vessel's gas piping system.
Key Features & Benefits
- BS EN 16129 Annex M (Marine) Compliant — The marine-specific standard required by most UK marine insurers for onboard LPG regulator installations.
- Marine-Grade Construction — Corrosion-resistant materials designed to withstand saltwater spray, spray-zone exposure and harsh marine environments.
- 30mbar Outlet Pressure — Standard UK 30mbar supply for all domestic and marine cooking, heating and hot water appliances.
- 75mbar Over-Pressure Relief — Safety over-pressure valve in addition to the regulator function — provides a secondary safety layer if the regulator fails to control pressure correctly.
- Reinforced Diaphragms — Extended diaphragm life in marine conditions where humidity and temperature cycling are more demanding than domestic use.
- POL Screw-In Inlet — Fits all UK propane cylinders (Calor 3.9kg, 6kg, 13kg, 19kg, 47kg).
- 1/4" LH Male Outlet — 8mm Hose Nozzle Included — Ready to connect to 8mm bore LPG hose without additional fittings.
- 1.5 kg/h Flow Rate — Adequate for typical marine galley and heating appliance combinations.
- 2-Year Warranty
Ideal For
- Boats and yachts requiring an insurance-compliant BS EN 16129 Annex M marine LPG regulator
- Offshore cruisers and long-distance passage makers
- Marina-kept vessels where Calor UK POL propane cylinders are used
- Marine gas heating, cooking and hot water appliances
BS EN 16129 Annex M marine regulator for insurance-compliant onboard propane installations. Order today for fast delivery.
Note: Manufacturing date June 2023
Specification
Cavagna Marine Single Stage Propane Regulator Specification
| Brand | Cavagna |
|---|---|
| Product Type | Marine Single Stage Propane Regulator |
| Approval | BS EN 16129 Annex M (Marine) |
| Gas Type | Propane (LPG) |
| Stage | Single stage |
| Outlet Pressure | 30 mbar |
| Flow Rate | 1.5 kg/h |
| Inlet Connection | POL screw-in (UK propane cylinders) |
| Outlet Connection | 1/4" LH male (with 8mm hose nozzle included) |
| Over-Pressure Relief | 75 mbar |
| Safety Features | Reinforced diaphragms & 75mbar over-pressure relief valve |
| Compatible Cylinders | Calor 3.9kg, 6kg, 13kg, 19kg & 47kg UK POL propane cylinders |
| Included | 8mm hose nozzle |
| Suitable Applications | Marine LPG – boats, yachts, cooking, heating & hot water |
| Warranty | 2 years |
Features
Cavagna Marine Single Stage Propane Regulator Features
- BS EN 16129 Annex M (Marine) Compliant - The marine-specific standard required by most UK marine insurers for onboard LPG regulator installations.
- Marine-Grade Construction - Corrosion-resistant materials designed to withstand saltwater spray, spray-zone exposure and harsh marine environments.
- 30mbar Outlet Pressure - Standard UK 30mbar supply for all domestic and marine cooking, heating and hot water appliances.
- 75mbar Over-Pressure Relief - Safety over-pressure valve in addition to the regulator function - provides a secondary safety layer if the regulator fails to control pressure correctly.
- Reinforced Diaphragms — Extended diaphragm life in marine conditions where humidity and temperature cycling are more demanding than domestic use.
- POL Screw-In Inlet - Fits all UK propane cylinders (Calor 3.9kg, 6kg, 13kg, 19kg, 47kg).
- 1/4" LH Male Outlet - 8mm Hose Nozzle Included - Ready to connect to 8mm bore LPG hose without additional fittings.
- 1.5 kg/h Flow Rate - Adequate for typical marine galley and heating appliance combinations.
- 2-Year Warranty
