Stepping up from smaller domestic press tools, the Alpha Press PZ-3240 is built for mid-sized commercial installations, covering metallic pipe and fittings from 15mm right up to 54mm. An 18V motor drives 32kN of press force, giving engineers the muscle needed for larger diameter connections without resorting to soldering or manual crimping.
A 180° rotating head and integrated LED light help with awkward angles and dim plant rooms, while the OLED display keeps a running check on cycle count and tool status — useful given the recommended maintenance interval of 30,000 crimps or once a year, whichever comes first.

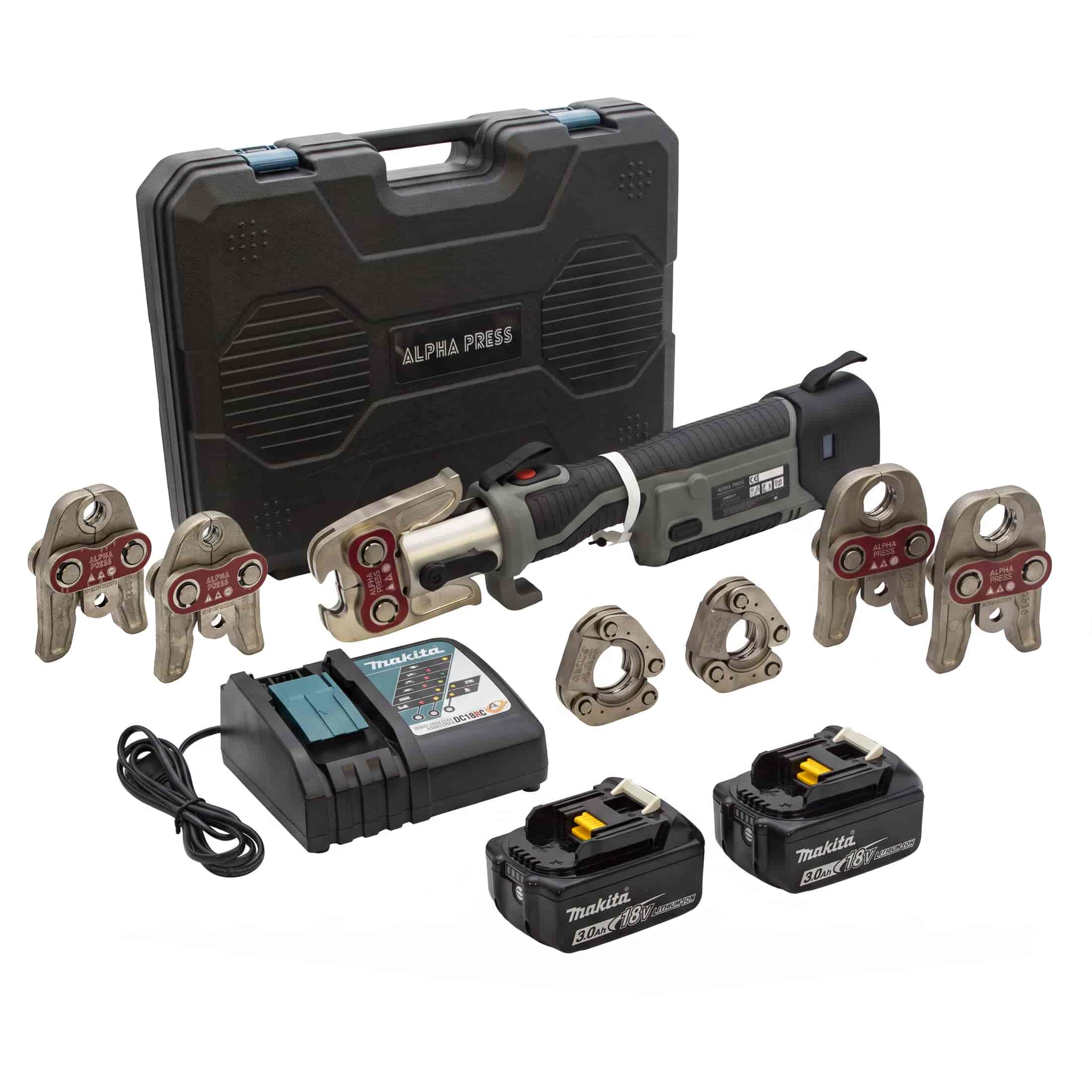

The kit is comprehensive: M profile jaws in 15mm, 22mm, 28mm and 35mm, plus 42mm and 54mm jaw collars and an intermediate jaw adaptor cover the full working range in one case. Power comes from two Makita 18V Li-ion batteries with a 230/240V charger, so the tool is genuinely ready to work straight out of the case.
Covering 15mm up to 54mm in one tool means engineers working across domestic and mid-sized commercial jobs aren't switching between two separate press kits, and 32kN gives the extra force needed for larger diameter joints that a smaller domestic tool simply isn't rated for. A rotating head and LED light are genuinely practical additions for the tighter, dimmer working conditions common in commercial plant rooms.
Order the Alpha Press PZ-3240 Press Fit Kit online today.
| Brand | Alpha Press |
|---|---|
| Model | PZ-3240 (AP-I-1554) |
| Contents | PZ-3240 Press Tool, 15/22/28/35mm M Profile Jaws, 42/54mm M Profile Jaw Collars, Intermediate Jaw Adaptor, Makita 230/240V Battery Charger, 2 x Makita 18V Li-ion Batteries, Hard Carry Case |
| Power Supply | 2 x 18V Li-ion Batteries (Please Confirm Ah Rating with Supplier — Sources Differ Between 4.0Ah and 5.0Ah) |
| Type | Press Kit |
| Voltage | 18V |
| Force Output | 32 kN |
| Head | 180° Rotating Head with Integrated LED Light |
| Display | OLED with Cycle Counter, Warning Alerts and Service Indicator |
| Maintenance Cycle | 30,000 Crimps or Annually, Whichever Comes First |
| Weight | 4.1 kg (Without Jaw) |
