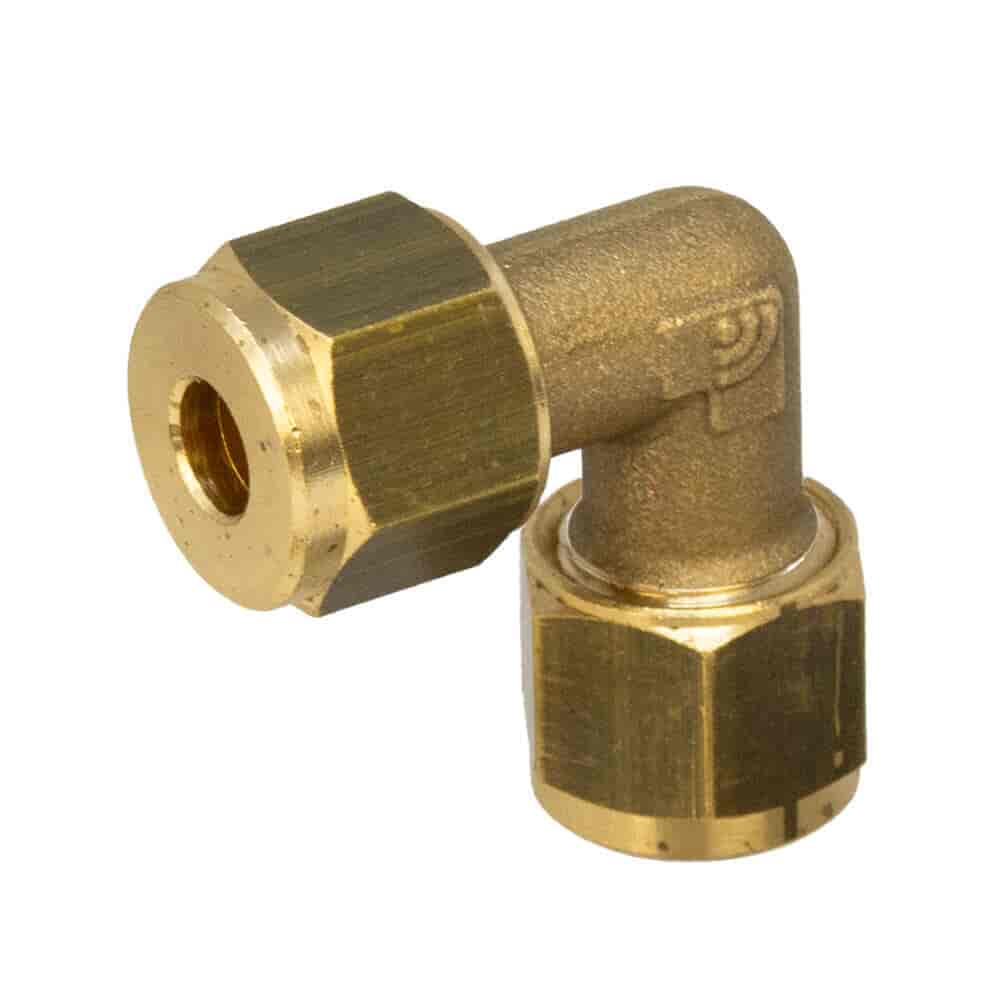

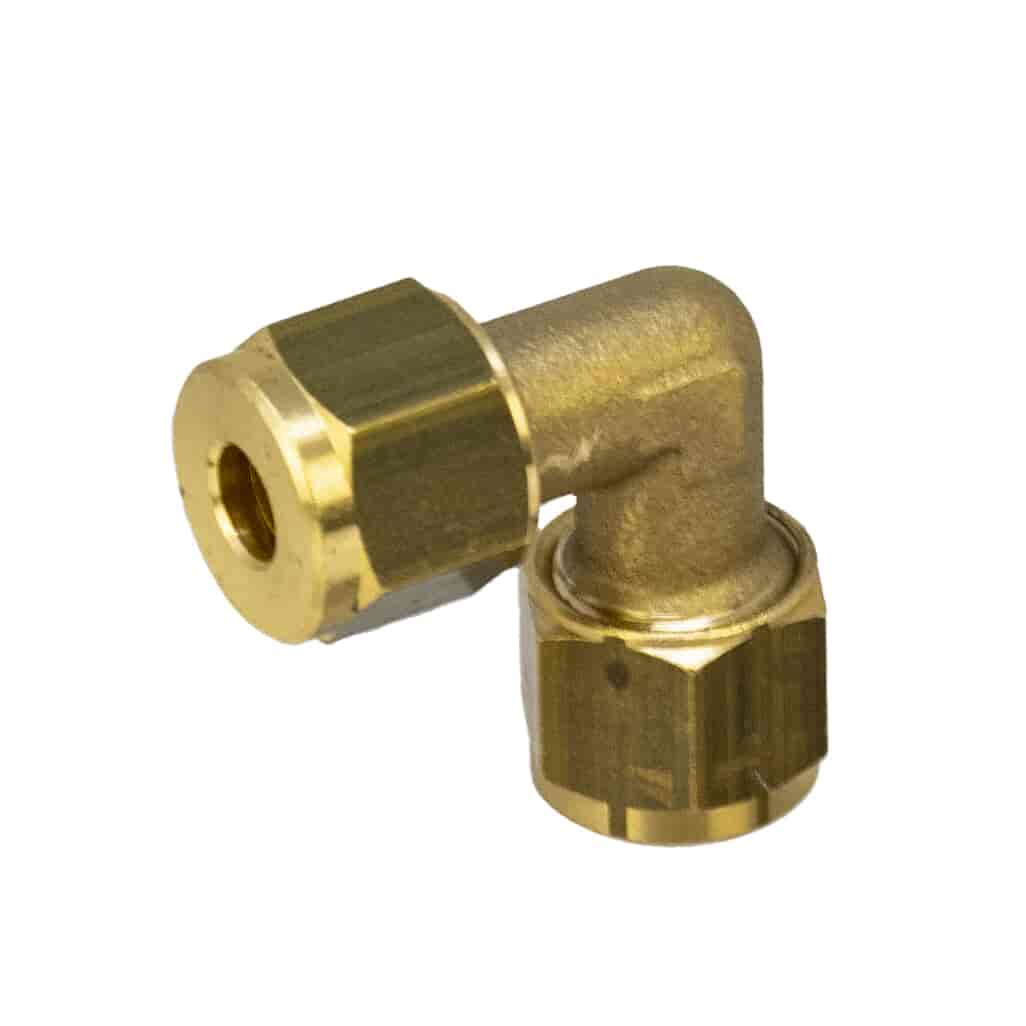

The 6mm Brass Compression Elbow is a heat-free solution for 90° changes in copper or compatible pipework. Ideal for installations where heat can’t be used or space is limited, this mechanical fitting allows quick and secure connections without soldering or welding.
Made from brass and WRAS approved, this elbow fitting is suitable for hot and cold water, low-pressure gas, and compressed air systems. Fully compliant with EN1254-2, it’s compatible with copper, low carbon steel, stainless steel, and plastic pipes (with appropriate inserts).
Key Features
Size – 6mm x 6mm compression connection
Material – High-quality brass for long life
Connection – Compression fitting (no heat required)
Pressure Ratings – Gas: 1 bar @ 30°C; Air: 7 bar @ 30°C; Water: Up to 25 bar (0–95°C)
