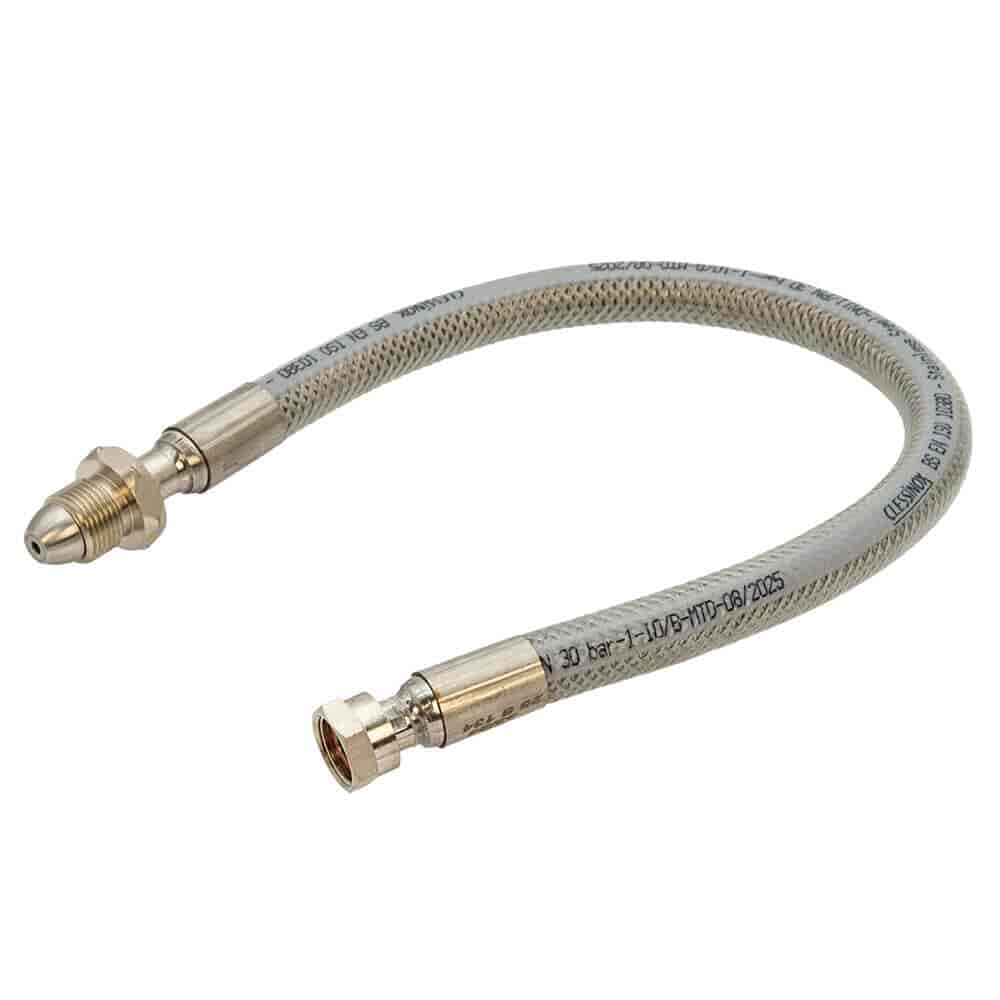

Clessinox 500mm Stainless Steel Propane Gas Pigtail - NR POL x W20
The Clessinox 500mm Stainless Steel Propane Gas Pigtail - NR POL x W20 is an absolute top notch choice of LPG hose that's built for long term reliability with a whole lot less hassle than other options. We figured it'd be a good idea to build it to BS EN ISO 10380 standards so you know you've got a hose that's going to last and meet all the necessary requirements. Its wide bore design and our Ultrased non-return valve technology teamed together result in smooth operation, fast reset and loads of dependable control over your gas.
Rubber hoses can be hit and miss - ours is 100% free from plasticiser, which greatly reduces the risk of oil contamination and keeps your downstream regulators and appliances safe from damage. We've also added extra stainless steel braiding to the hose - and to finish it off we've wrapped the whole thing in a UV-stabilised PVC outer sleeve to protect it from the elements, abuse and any pesky rodents that might try to get a nibble.
This pigtail's got a 5kg/h (70kWh) rating, very low pressure loss, and still manages to give you full capacity even when the cylinder pressure gets down as low as 0.5 bar, which makes it super-efficient for pretty much any domestic or commercial set-up.
Key Features & Benefits
Ultrased Non-Return Valve - very quiet operation, and it resets super quick - so you don't have to worry about backflow or safety risks
Stainless Steel 316L Construction - it's built to last with great strength, corrosion resistance and a lifespan that'll just keep going
No Plasticiser Problem - no risk of oil contamination ruining your regulators and appliances
Wide Bore Hose - this gives you low pressure loss and still allows for full gas capacity, even when cylinder pressure is low - which is perfect for really demanding systems
Handles High Pressure Like a Pro - it can take a 5kg/h (70kWh) rating without batting an eyelid
Built to Last, Guaranteed - armoured and protected with UV-stabilised PVC so it can handle all sorts of harsh environments
Meets Every Standard - we've made sure this pigtail meets all the relevant specs for LPG cylinders to BS6891, BS5482 and UKLPG CoP24
Lasts a Long Time - we reckon you should easily get 10+ years out of it if you keep on top of routine inspections
Ideal For
Domestic Propane Installations - a safe, reliable, and low-maintenance cylinder connection has to be a winner
Commercial & Light Industrial Systems - it'll get the job done, even in heavy use
Manual & Auto Changeover Regulators - no problem with compatibility - this pigtail's got you covered
Outdoor & Exposed Installations - this thing can take whatever you throw at it, from the elements to those pesky rodents
Safety First - the built-in non-return protection means you can have peace of mind
Why Choose the Clessinox NR Stainless Steel Pigtail?
Built In Safety - Ultrased non-return protection is as standard
Less Maintenance - far longer lifespan than rubber hoses
Better Running - reduced pressure loss means your system runs smoothly and efficiently
Rodent-Proof and Reliable - it'll keep going even when it's been subjected to all sorts of harsh conditions
We Care About the Planet - it's fully recyclable
You Can Trust Us - Clessinox design with proper trackable manufacturing to give you extra peace of mind
Swap to a safer, more reliable LPG connection. Order the Clessinox 500mm Stainless Steel Propane Gas Pigtail - NR POL x W20 today and get the best in premium safety, durability and peace of mind that you, and your customers, deserve.
Specification
Clessinox 500mm Stainless Steel Propane Gas Pigtail - NR POL x W20 Specification
Brand
Clesse
Product Type
LPG Pigtail Assembly
Length
500 mm
Gas Type
Propane (LPG)
Material
Stainless Steel 316L
Braiding
Armoured stainless steel with UV-stabilised PVC sleeve
Colour
Transparent PVC with grey stripe
Connection
NR POL × W20 (5/8" LH Nut)
Valve Type
Ultraset Non-Return Valve
Flow Rating
5 kg/h (70 kWh)
Operating Pressure
Up to 43 bar
Outside Diameter
DN11
Standards
BS EN ISO 10380 & EN 22768
Compatible Cylinders
Calor & Flo-Gas 3.9kg – 47kg
Suitable Applications
Manual & Auto Changeover Regulators, Wall Blocks
Warranty
2 Years (Typical Service Life 10+ Years)
Features
Clessinox 500mm Stainless Steel Propane Gas Pigtail - NR POL x W20 Features
Ultraset Non-Return Valve – Silent operation with fast reset, preventing backflow and improving safety.
Stainless Steel 316L Construction – Exceptional strength, corrosion resistance and long service life.
Plasticiser-Free Design – Minimises oil contamination in regulators and appliances.
Wide Bore Hose – Low pressure loss and full gas capacity at low cylinder pressures.
High-Pressure Performance – Rated at 5kg/h (70kWh) for demanding propane systems.
Armoured & UV Protected – Extra braiding with UV-stabilised PVC sleeve for harsh environments.
Standards Compliant – Suitable for LPG cylinders to BS6891, BS5482 and UKLPG CoP24.
Extended Service Life – Typical lifespan of 10+ years with routine inspection.
