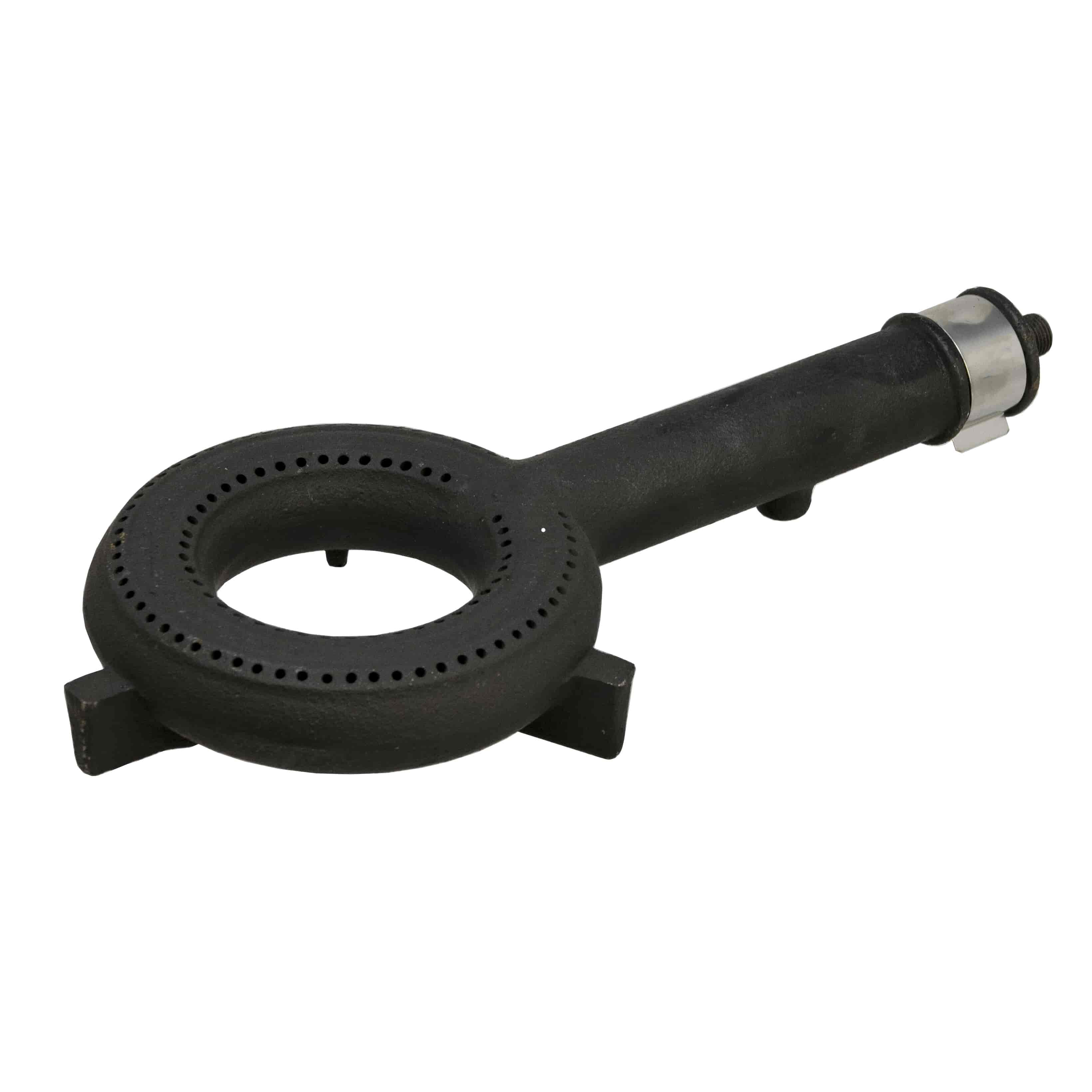

5" Single LPG Gas Boiling Ring – High-Performance Burner for Chinese Cookers
The 5" Single LPG Gas Boiling Ring is a reliable and efficient replacement burner, designed in the 936 style for use in Chinese cookers and other commercial applications. Featuring a 5-inch burner head and delivering an output of 15,000 to 35,000 BTU/h, this cast iron boiling ring ensures high heat output and durability for a variety of cooking tasks.
Built with cast iron for longevity, the burner is compatible with LPG Propane and operates at a pressure of 37mbar. The 1/4" BSP M taper inlet makes it easy to connect, while the compact dimensions ensure it fits seamlessly into your setup. Ideal for professional kitchens that require a dependable gas boiling ring for high-demand cooking environments.
Key Features:
936 Style Burner: A direct replacement for Chinese cookers and other commercial appliances.
High Heat Output: Delivers between 15,000 and 35,000 BTU/h for powerful cooking performance.
Cast Iron Construction: Built from durable cast iron for long-lasting use in demanding kitchens.
LPG Propane Compatible: Designed for use with LPG Propane gas at 37mbar operating pressure.
Compact and Lightweight: Measures 320mm x 135mm x 45mm and weighs just 1.5kg, making it easy to install and integrate into your kitchen.
1/4" BSP M Gas Connection: Features a 1/4" BSP M taper inlet for easy connection to your gas supply.
Whether you're replacing a burner for your Chinese cooker or looking for a high-performance LPG gas boiling ring, the 5" Single LPG Gas Boiling Ring provides the durability and heat output needed for efficient cooking in commercial kitchens.
Specification
5" Single LPG Gas Boiling Ring – 936 Style, 35,000 BTU/h, Cast Iron Specification
Brand
Hamilton Gas Products
Material
Cast iron
Number of burners
1
Burner Ø mm
135mm
Maximum output kW
10kW
Control Type
N/A
Flame failure device (FFD)
No
Gas type
LPG - Propane
Gas operating pressure
37mbar Propane
Gas connection
1/4" Bspm
Dimensions
320mm x 135mm x 45mm
Weight
1.5kg
Features
5" Single LPG Gas Boiling Ring – 936 Style, 35,000 BTU/h, Cast Iron Features
936 Style Burner: Ideal replacement for Chinese cookers and other commercial gas appliances.
High Heat Output: Delivers between 15,000 and 35,000 BTU/h for powerful cooking performance.
Durable Cast Iron Construction: Built to last with robust cast iron material, perfect for high-demand kitchens.
LPG Propane Compatible: Designed for use with LPG Propane gas at 37mbar operating pressure.
Compact Design: Measures 320mm x 135mm x 45mm, fitting easily into various kitchen setups.
1/4" BSP M Gas Connection: Features a 1/4" BSP M taper inlet for easy connection to your gas supply.
Lightweight: Weighs just 1.5kg, making it easy to install and manage.
High Efficiency: Suitable for professional kitchens needing a high-output gas boiling ring for efficient cooking.
