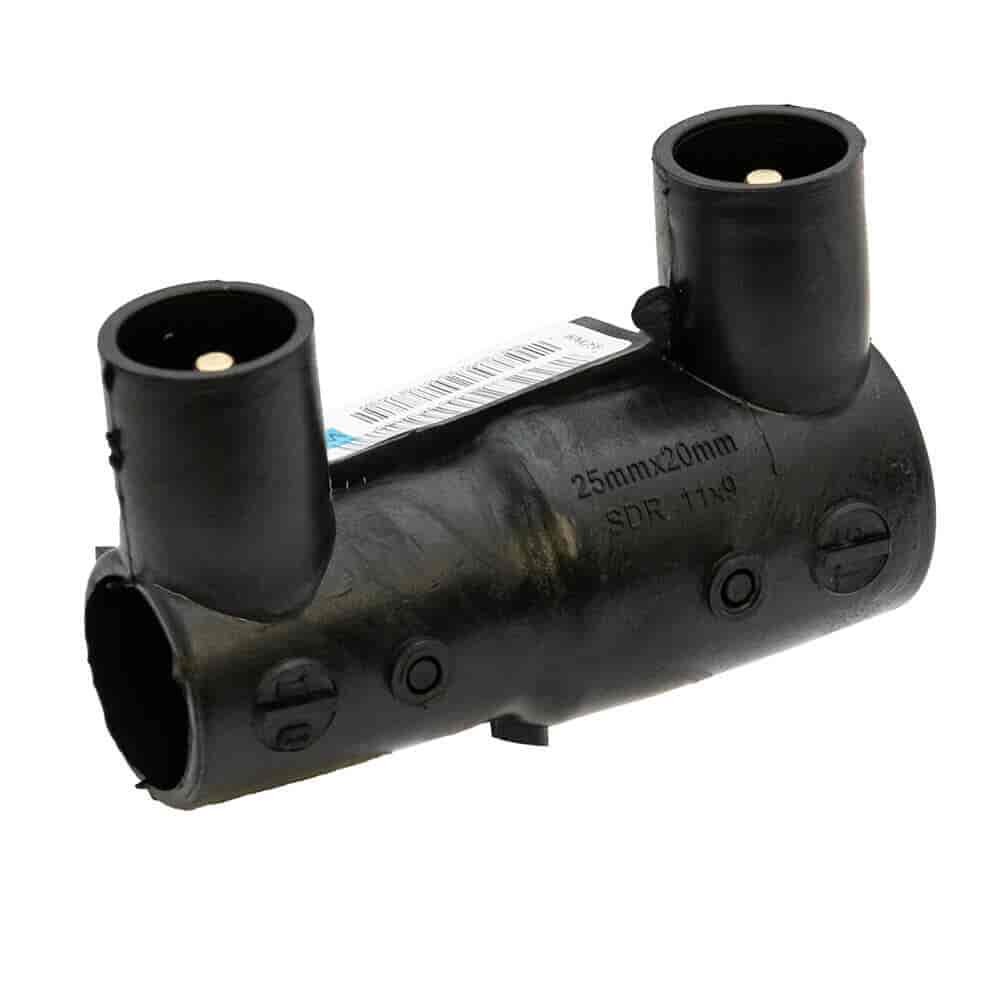

Universal 20mm x 25mm Black MDPE Electrofusion Reducing Coupler

Name: Universal 20mm x 25mm Black MDPE Electrofusion Reducing Coupler
SKU: HA2534
Price: 2.52 GBP
Availability: InStock

In stock

SKU

HA2534

£2.52 £2.10

Optional Extras:

Yellow MDPE Gas Pipe 25mm x 50m

£47.58 £39.65

In stock

MDPE PVC Preformed Bends 38mm

£4.50 £3.75

In stock

MDPE GRP Sleeves - 38mm

£7.08 £5.90

In stock

Description

Universal Black MDPE (PE 80) electrofusion fittings suitable for gas, water, wastewater, telecoms, energy & power applications.

Electrofusion fittings are supplied in individual sealed bags to avoid contamination of the joint surfaces prior to jointing.

Specification

Approved by	WRAS, BSI & Kitemarked
Standards	Gas - BS EN 1555-3 & GIS/PL2:4 Water - BS EN 12201-3.
Material	MDPE
Colour	Black
Operating Pressure	Gas : MOP up to 5.5 bar. Water : MOP up to 16 bar.
Size	20 x 25mm
Applications	For use with MDPE (PE 80) pipe carrying Natural Gas, LPG or Water
Pin Size	4mm

Features

Manufactured from high strength polyethylene (PE100)
Exposed wire technology for maximum heat transfer during the fusion process
Simultaneous socket fusion for all fittings
Barcode technology - for automatic temperature compensating fusion times and fitting
traceability
Manual fusion times on the body of the fitting
Corrosion resistant
End-load bearing jointing system
Manufactured with insertion stops to ensure the pipe is fully engaged
