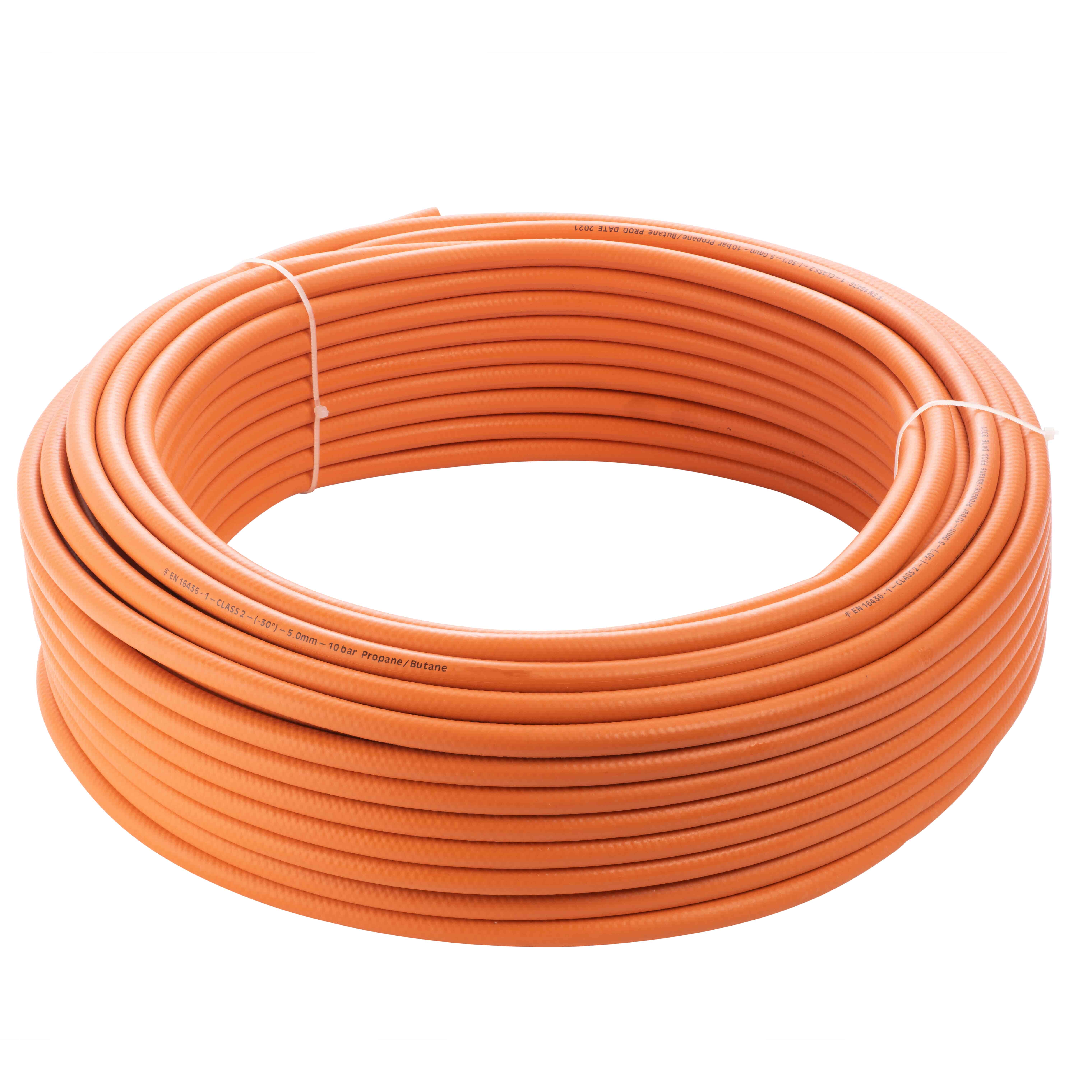

10mm LPG Orange High Pressure Gas Hose (H20P/10/T) – Sold Per Metre
This is a 10mm bore orange high-pressure LPG hose, manufactured to EN 16436-1 Class 2 and BS 3212 Type 2, the two standards that between them cover the vast majority of high-pressure LPG hose in current and historical use across the UK. Orange colouring is the recognised identification for high-pressure LPG hose, distinguishing it at a glance from low-pressure black hose used elsewhere in a gas system.
Rated to a maximum operating pressure of 10 bar, this hose is intended for outdoor use only, making it well suited to BBQs, patio heaters, and similar LPG appliances where a flexible, high-pressure connection is needed between cylinder and appliance. It's supplied as a 50m coil, allowing lengths to be cut to size as needed.
Key Features & Benefits
EN 16436-1 Class 2 & BS 3212 Type 2 Certified: Meets the recognised standards for high-pressure LPG hose.
10 Bar Maximum Operating Pressure: Rated for high-pressure LPG applications.
Orange High-Visibility Identification: Standard colour marking for high-pressure LPG hose.
10mm Bore, 18mm Outside Diameter: A common sizing for BBQ and patio heater connections.
Sold Per Metre – Order the exact length required; supplied as a continuous cut up to 50 meteres
Ideal For
BBQs and outdoor cooking equipment running on LPG.
Patio heaters and other outdoor LPG appliances.
Outdoor use only, LPG applications exclusively.
Why Buy This Product?
This hose gives you a dual-standard, high-pressure LPG hose in one product, so it's recognised whether the installation specifies EN 16436-1 Class 2 or the older BS 3212 Type 2 marking. Supplied per meter up to a maximum of 50 metres it's a practical way to keep stock on hand for cutting to length across multiple BBQ, patio heater, or similar outdoor LPG jobs.
Order the 10mm LPG Orange High Pressure Gas Hose online today.
Specification
10mm LPG Orange High Pressure Gas Hose Specification
Brand
Hamilton Gas Products
Standards
EN 16436-1 Class 2, BS 3212 Type 2
Bore
10mm
Colour
Orange
Dimensions (H x Diameter)
18mm Outside Diameter
Length
Sold per meter up to 50m
Material
Rubber
Max. Operating Pressure
10 bar
Suitable Application
For Use with LPG at High Pressure
Type
Hose Coil
Features
10mm LPG Orange High Pressure Gas Hose Features
EN 16436-1 Class 2 & BS 3212 Type 2 Certified: Meets the recognised standards for high-pressure LPG hose.
10 Bar Maximum Operating Pressure: Rated for high-pressure LPG applications.
Orange High-Visibility Identification: Standard colour marking for high-pressure LPG hose.
10mm Bore, 18mm Outside Diameter: A common sizing for BBQ and patio heater connections.
Sold Per Metre – Order the exact length required; supplied as a continuous cut up to 50 meteres
