The Sauermann Si-CA 130 Combustion Flue Gas Analyser is an advanced combustion analysis in a small, ergonomic and versatile device. For residential and commercial gas system monitoring, the Si-CA 130 supports up to 3 pre-calibrated, field-replaceable gas sensors: O₂, CO (up to 8000 ppm), NO, and low-range NO for accurate NOx measurement in low NOx or high moisture environments.
With built-in diagnostics like sensor life indicators and calibration reminders, the Si-CA 130 minimizes downtime. It calculates CO₂ percentage, combustion efficiency, excess air, and measures draft and differential pressure. The analyser also monitors CO and CO₂ in ambient air, so it’s a complete safety and performance tool for combustion engineers.
The large colour touchscreen has a customisable interface for real-time graphical data display. Data is logged automatically and can be transferred via Wi-Fi or USB to Sauermann’s free mobile app or PC software for reporting, analysis and record-keeping. The optional wireless printer prints reports onsite for compliance and client documentation.

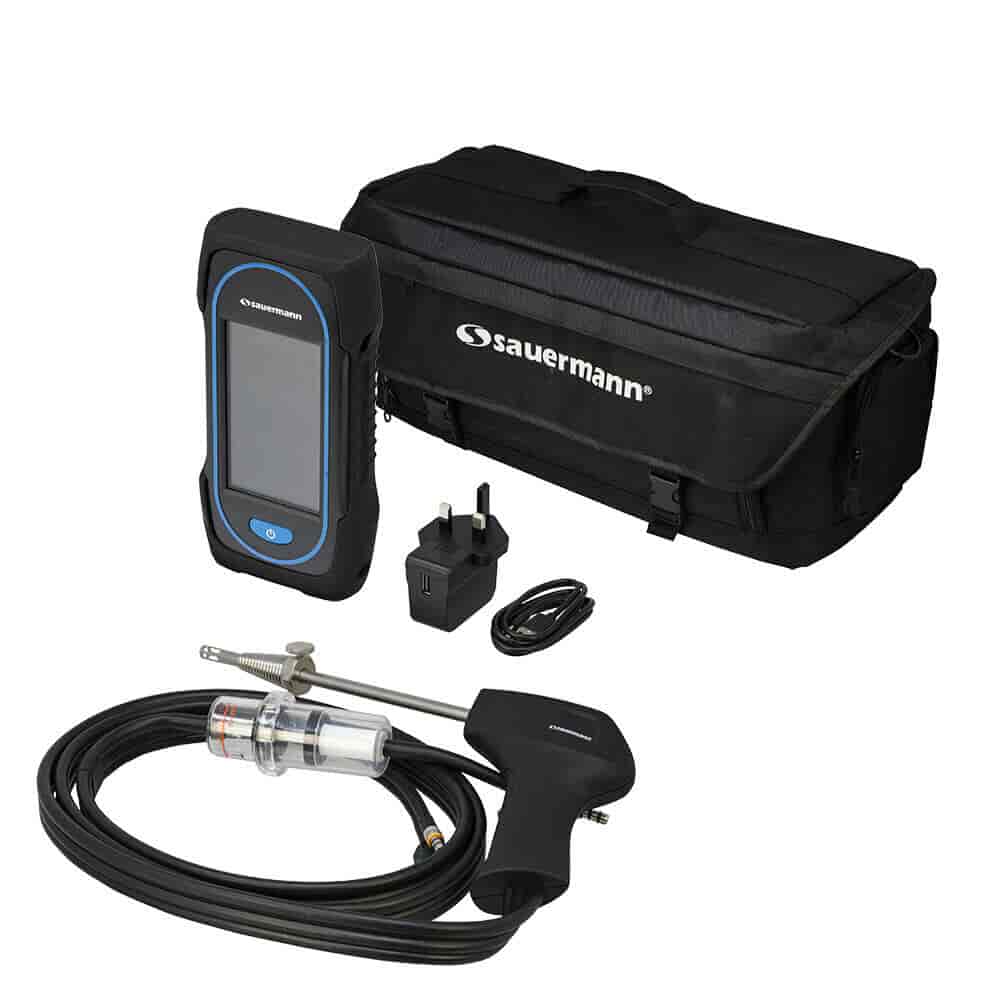

Si-CA 130 Analyser, O₂, CO, NO, and Low NO Sensors, Flue Gas Probe with Dual Hose, Water Trap with Filter, Protective Rubber Holster, AC Charger & USB Cable, Mobile App & PC Software Access, Internal Wireless Communication Module, Carrying Case, Calibration Certificate & Quick Start Guide
For professionals, the Si-CA 130 combines combustion analysis with optional wireless, printer and real-time data – perfect for heating engineers, HVAC technicians and emission control specialists.
Order now and take your flue gas analysis to the next level with the Sauermann Si-CA 130 Combustion Analyser – accurate, connected and built for performance.
| Manufacturer | Sauermann |
|---|---|
| Product Type | Si-AC2 Flue Gas Analyser |
| Measurement Units | °C, %, ppm, mbar |
| O₂ Measuring Range | 0.00% to 25.00% |
| CO Measuring Range | 0.00 ppm to 8000.00 ppm |
| CO₂ Calculated Range | 0.00% to 99.90% |
| Nitric Oxide (NO - optional) | 0.00 ppm to 5000.00 ppm |
| Low Range NO | 0.00 ppm to 300.00 ppm |
| NOx (calculated - optional) | 0.00 ppm to 7500.00 ppm |
| Low NOx | 0.00 ppm to 450.00 ppm |
| Flue Temperature Range | -20.00°C to 1250.00°C |
| Air Temperature Range | -20.00°C to 120.00°C |
| Differential Temperature | 0.00°C to 1250.00°C |
| Pressure / Draft Range | -200.00 mbar to 200.00 mbar |
| Excess Air Range | 0.00% to 999.00% |
| Combustion Efficiency | 0.00% to 100.00% |
| Efficiency (Condensing) | From 0 to +50 °C. In non condensing conditions. From 0 to 2000 m. |
| Measured Parameters | O₂, CO, CO₂ (calculated), NO, NO₂, NOx (calculated) |
| Display | Large colour touchscreen graphical display |
| IP Protection Rating | IP42 |
| Battery Life | Up to 8 hours |
| Power Supply | Rechargeable Li-Ion 5100 mAh, 3.6V battery |
| Charging Method | USB |
| Wireless Connectivity | Yes – with Sauermann mobile app |
| Mobile App Support | Yes – Sauermann Si-HVACR app for live data, reporting, logging |
| Auto Zero | Yes |
| Sensor Protection | CO sensor protected by automatic pump stop |
| Remote Printer Support | Yes – compatible with Sauermann wireless printer |
| Certifications & Standards | 2015/863 EU (RoHS 3), NF EN 50379-1, NF EN 50379-3, 2014/53/UE RED, TÜV SÜD, UKCA |
| Dimensions | 19.4 x 9.9 x 4.9 cm |
| Weight | 350g |
| Keypad | 5 keys |
| Environmental conditions of use |
Temperature: from -5 to 45 °C (23 to 113 °F), Hygrometry: in non-condensing conditions (< 85% RH) Maximum altitude: 2000 m (6561’) |
| Storage temperature | From -20 to 50 °C (-4 to 122 °F) |
| Languages | English, French, German, Spanish, Italian, Portuguese |
| Suitable Applications | Ideal for heating engineers and HVAC professionals performing combustion analysis, boiler servicing, and emissions monitoring in residential and commercial systems. |
| Warranty | 2 Years |
